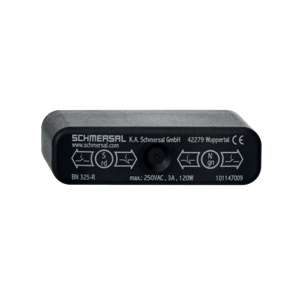

BN 325-R-1389: 101147103 - Schmersal 85 mm Width Magnetic Switch
Technical Specifications of 85 mm Width Magnetic Switch BN 325-R-1389 101147103:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Switching Distance Sn | 5 mm … 55 mm |
| Termination | Flat plug-in connector 6.3 mm and 2 Shielding plates |
| Degree of Protection | IP40 |
Schmersal 85 mm Width Magnetic Switch, BN 325-R-1389, 101147103 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Housing construction form | rectangular |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Active area | - |
| Number of normally closed (NC) | - |
| Actuating panels | lateral |
| Actuating element | Magnet |
| Mounting | rear with 2 threaded bolts |
| Switching distance Sn | 5 mm … 55 mm |
| Length of cable | - |
| Termination | Flat plug-in connector 6.3 mm and 2 Shielding plates |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| Diameter of sensor | - |
| Length of sensor | 24 mm |
| Width of sensor | 85 mm |
| Height of sensor | 26 mm |
| Degree of protection | IP40 |
| Ambient temperature | -25 ... +70 °C |
| Restistance to shock | 50 g / 11 ms |
| Resistant to vibration | 10 … 55 Hz, amplitude 1 mm |
| Switching voltage, maximum | 250 VAC |
| Switching current, maximum | 3 A |
| Switching capacity, maximum | 120 VA |
| Switching element | bistable contact |
| Bounce duration, maximum | 0.3 ms |
| Design of control elements | Reed contacts |
| Gross weight | 44 g |
Call us for 85 mm Width Magnetic Switch BN 325-R-1389 part no: 101147103 at the best rates. Technical Attributes of BN 325-R-1389, 101147103 are Magnetic drive principle and features a rectangular housing made of Glass-fibre, reinforced thermoplastic for durability. It is designed for mounting 5 mm … 55 mm ensuring a secure fit in various applications. The sensor provides a reliable switching distance of - with a maximum switching voltage of 50 g / 11 ms making it suitable for a wide range of electrical systems. The switching element is a 3 A capable of handling switching frequencies up to 0.3 ms. The sensor is 85 mm rated, offering basic protection against environmental factors, and has a gross weight of 44 g making it lightweight and easy to install. The -. Unlock Exclusive Pricing with a Quote for your requirement of 85 mm Width Magnetic Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
