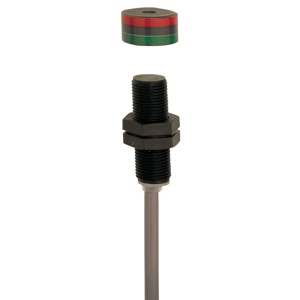

BNS 120-12Z 5,0M: 101135587 - Schmersal 32 mm Sensing Off Magnetic Safety Sensors
Technical Specifications of Schmersal 32 mm Sensing Off Magnetic Safety Sensors BNS 120-12Z 5,0M 101135587:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 10 mm, 20 mm |
| Assured switching distance "OFF" Sar | 22 mm, 32 mm |
| Termination | Cable |
Schmersal 32 mm Sensing Off Magnetic Safety Sensors, BNS 120-12Z 5,0M, 101135587 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | |
| Duration of risk, maximum | |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Number of cable wires | 4 |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | - |
| Assured switching distance "ON" Sao | 10 mm, 20 mm |
| Assured switching distance "OFF" Sar | 22 mm, 32 mm |
| Length of cable | 5 m |
| Termination | Cable |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | PVC |
| ISO thread of the sensor | M12 |
| Width across flats | - |
| Length of sensor | 38.5 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | - |
| Switching current, maximum | 0.25 A |
| Switching capacity, maximum | 3 W |
| Switching element | 1 NO contact, 2 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 192 g |
Talk to Our Engineer for Schmersal 32 mm Sensing Off Magnetic Safety Sensors BNS 120-12Z 5,0M part no: 101135587 with exclusive offers. Core System Specifications of BNS 120-12Z 5,0M, 101135587 are Magnetic drive Working principle designed with a Glass-fibre, reinforced thermoplastic housing. This sensor features 4 cable wires and a Magnet actuating element, ensuring precise operation. The assured switching distance (Sao) is 10 mm, 20 mm while the (Sar) distance is 22 mm, 32 mm It comes with a 5 m long cable with PVC material, and the termination is through an ISO-threaded M12 connector. The sensor supports a maximum switching current of 0.25 A with a switching frequency of up to 5 Hz. The sensor includes 1 NO contact, 2 NC contacts for reliable switching, and it operates with a degree of protection rated at IP67. Don't Miss Out on a Quote for your requirement of Schmersal 32 mm Sensing Off Magnetic Safety Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
