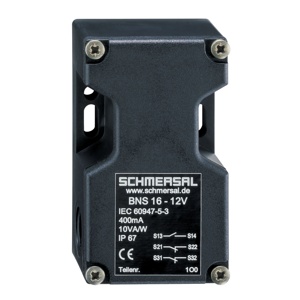

BNS 16-12ZU: 101172565 - Schmersal 1 NO Magnetic Safety Sensors
Technical Specifications of Schmersal 1 NO Magnetic Safety Sensors BNS 16-12ZU 101172565:
| Spec | Value |
|---|---|
| Working principle | Magnetic drive |
| Connector position | |
| Termination | Screw terminals M20 x 1.5 |
| Degree of protection | IP67 |
Schmersal 1 NO Magnetic Safety Sensors, BNS 16-12ZU, 101172565 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 2 |
| Number of normally open (NO) | 1 |
| Active area | bottom |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 8 mm |
| Assured switching distance "OFF" Sar | 18 mm |
| Connector position | |
| Termination | Screw terminals M20 x 1.5 |
| Length of sensor | 39 mm |
| Width of sensor | 52 mm |
| Height of sensor | 90 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 1 NO contact, 2 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Design of control elements | Miscellaneous, Reed contacts |
| Gross weight | 150 g |
Mail Us for your needs in Schmersal 1 NO Magnetic Safety Sensors BNS 16-12ZU part no: 101172565 with budget-friendly prices. The Main Technical Parameters of BNS 16-12ZU, 101172565 inludce Magnetic drive Working principle, featuring a durable Glass-fibre, reinforced thermoplastic housing. The sensor operates with a Magnet actuating element, ensuring reliable performance. It provides an assured switching distance (Sao) of 8 mm and an (Sar) distance of 18 mm making it ideal for precise applications. Termination is facilitated through an Screw terminals M20 x 1.5 ensuring secure and efficient connections. The sensor supports a maximum switching voltage of 100 VDC and a maximum switching current of 0.4 A. It includes both 1 NO contact, 2 NC contacts for versatile operation, with a switching frequency of up to 5 Hz. Rated with an IP67 degree of protection. Customize Your Experience with a Quote for your requirement of Schmersal 1 NO Magnetic Safety Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
