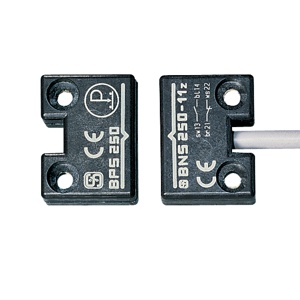

BNS 250-11ZG 6,0M: 101149419 - Schmersal Schmersal 1 NC Magnetic Safety Sensors
Technical Specifications of Schmersal 1 NC Magnetic Safety Sensors BNS 250-11ZG 6,0M 101149419:
| Spec | Value |
|---|---|
| Working principle | Magnetic drive |
| Length of cable | 10 m |
| Termination | |
| Degree of protection | IP67 |
Schmersal Schmersal 1 NC Magnetic Safety Sensors, BNS 250-11ZG 6,0M, 101149419 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 1 |
| Active area | |
| Actuating element | Magnet |
| Direction of motion | |
| Assured switching distance "ON" Sao | 5 mm, 8 mm |
| Assured switching distance "OFF" Sar | 15 mm, 18 mm |
| Length of cable | 10 m |
| Termination | |
| Wire cross-section | |
| Material of the Cable mantle | |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | |
| Switching current, maximum | |
| Switching capacity, maximum | |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Design of control elements | Miscellaneous, Reed contacts |
| Gross weight | 360 g |
Please speak to our Technical Engineer for Schmersal 1 NC Magnetic Safety Sensors BNS 250-11ZG 6,0M part no: 101149419 at attractive prices. Technical Specs Summary of BNS 250-11ZG 6,0M, 101149419 includes Glass-fibre, reinforced thermoplastic ensuring durability and reliability in demanding environments. The sensor operates on a Magnetic drive principle, utilizing a Magnet as the actuating element, providing precise operation. With an assured switching distance (Sao) of 5 mm, 8 mm and an assured switching distance (Sar) of 15 mm, 18 mm it guarantees accurate detection. The sensor comes with a durable 10 m for easy installation, and it supports a maximum switching current of with a switching frequency of up to 5 Hz making it ideal for fast-paced operations. It is rated IP67. Match Your Needs with a Quote for your requirement of Schmersal 1 NC Magnetic Safety Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
