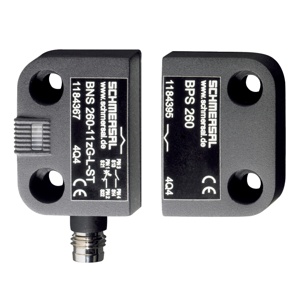

BNS 260-02ZG-ST-L-2750: 103027188 - Schmersal IP67 Magnetic Safety Sensors
Technical Specifications of IP67 Magnetic Safety Sensors BNS 260-02ZG-ST-L-2750 103027188:
| Spec | Value |
|---|---|
| Working principle | Magnetic drive |
| Length of cable | |
| Termination | Connector M8, 4-pole, A-coded |
| Degree of Protection | IP67 |
Schmersal IP67 Magnetic Safety Sensors, BNS 260-02ZG-ST-L-2750, 103027188 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | Quasi Flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Number of cable wires | |
| Actuating element | Magnet |
| Door hinge | |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 8 mm |
| Assured switching distance "OFF" Sar | 18 mm |
| Length of cable | |
| Termination | Connector M8, 4-pole, A-coded |
| Wire cross-section | |
| Material of the Cable mantle | |
| Length of sensor | 13 mm |
| Width of sensor | 26 mm |
| Height of sensor | 36 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 75 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | 100 A |
| Switching voltage, maximum | |
| Switching current, maximum | 0.01 A |
| Switching capacity, maximum | 0.24 W |
| Switching element | 2 NC contact |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 15 g |
Talk to Our Engineer for IP67 Magnetic Safety Sensors BNS 260-02ZG-ST-L-2750 part no: 103027188 with exclusive offers. Core System Specifications of BNS 260-02ZG-ST-L-2750, 103027188 are Magnetic drive principle, encased in a robust Glass-fibre, reinforced thermoplastic housing, ensuring durability and reliability. The actuating element Magnet is optimized for seamless operation, with an assured switching distance of 8 mm and of 18 mm providing accurate and dependable performance. Equipped with a installation, the sensor features a reliable Connector M8, 4-pole, A-coded termination method, ensuring a secure connection. The sensors support current of 0.01 A capable of handling a switching frequency of up to 5 Hz. Rated with an IP67 degree of protection. Don't Miss Out on a Quote for your requirement of IP67 Magnetic Safety Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
