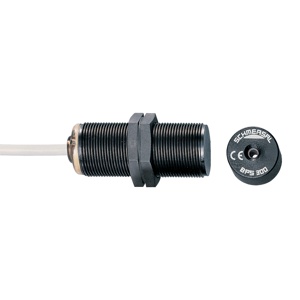

BNS 300-01ZG-2230 4,0M: 101150103 - Schmersal 1 NC Magnetic Safety Sensors
Technical Specifications of Schmersal 1 NC Magnetic Safety Sensors BNS 300-01ZG-2230 4,0M 101150103:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Cable |
Schmersal 1 NC Magnetic Safety Sensors, BNS 300-01ZG-2230 4,0M, 101150103 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | 50 ms |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 1 |
| Number of cable wires | 5 |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | 3 Nm |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | 4 m |
| Termination | Cable |
| Wire cross-section | 18 AWG |
| Material of the Cable mantle | PVC |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 78 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +55 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | 24 VDC |
| Switching voltage, maximum | 250 VAC |
| Switching current, maximum | 3 A |
| Switching capacity, maximum | 750 W |
| Switching element | 1 NC contact |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 360 g |
Mail Us for your needs in Schmersal 1 NC Magnetic Safety Sensors BNS 300-01ZG-2230 4,0M part no: 101150103 with budget-friendly prices. The Main Technical Parameters of BNS 300-01ZG-2230 4,0M, 101150103 are Magnetic drive principle, housed in robust Glass-fibre, reinforced thermoplastic ensuring longevity and resilience. Featuring 5 cable wires, these sensors utilize an Magnet as the actuating element. The assured switching distances (Sao) are 5 mm and (Sar) are 15 mm, providing accurate detection. The sensor includes a 4 m and Cable terminated with a durable PVC mantle, ensuring flexibility and protection. Rated for 24 VDC operating voltage and capable of handling a maximum switching voltage of 250 VAC and current up to 3 A these sensors are designed for demanding applications. With a switching frequency of up to 5 Hz and an IP67 rating, they offer excellent protection. Customize Your Experience with a Quote for your requirement of Schmersal 1 NC Magnetic Safety Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
