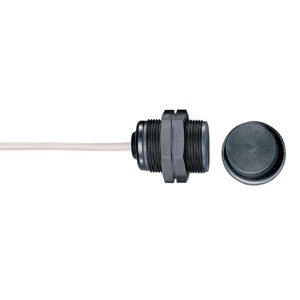

BNS 303-11Z 10,0M: 101127760 - Schmersal Schmersal M30 Dia Magnetic Safety Sensors
Technical Specifications of Schmersal M30 Dia Magnetic Safety Sensors BNS 303-11Z 10,0M 101127760:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Cable |
Schmersal Schmersal M30 Dia Magnetic Safety Sensors, BNS 303-11Z 10,0M, 101127760 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | - |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 2 |
| Number of cable wires | - |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | 3 Nm |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | - |
| Termination | Cable |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 44 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 380 g |
Send Your Inquiry for Schmersal M30 Dia Magnetic Safety Sensors BNS 303-11Z 10,0M part no: 101127760 with cost-effective solutions. Essential Technical Specs of BNS 303-11Z 10,0M, 101127760 are Magnetic drive principle and are housed in durable Glass-fibre, reinforced thermoplastic ensuring long-lasting protection against harsh environments. The actuating element is a Magnet providing an assured switching distance (Sao) of 5 mm and (Sar) of 15 mm for precise detection. The sensor is equipped with an Cable for easy termination and features an ISO M30 thread for secure mounting. It is capable of handling a maximum switching voltage of 100 VDC and a switching current of up to 0.4 A with a switching frequency of Miscellaneous, Reed contacts With an IP67 degree of protection. Capture the Best Deal with a Quote for your requirement of Schmersal M30 Dia Magnetic Safety Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
