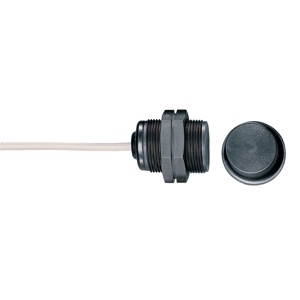

BNS 303-11Z-2211: 101131574 - Schmersal 36 Bk Width Across Flats Safety Sensors
Technical Specifications of Schmersal 36 Bk Width Across Flats Safety Sensors BNS 303-11Z-2211 101131574:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 8 mm |
| Assured switching distance "OFF" Sar | 18 mm |
| Termination |
Schmersal 36 Bk Width Across Flats Safety Sensors, BNS 303-11Z-2211, 101131574 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | - |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 2 |
| Number of cable wires | - |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | |
| Assured switching distance "ON" Sao | 8 mm |
| Assured switching distance "OFF" Sar | 18 mm |
| Length of cable | - |
| Termination | |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 44 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 65 g |
Ask for the Pricing of Schmersal 36 Bk Width Across Flats Safety Sensors BNS 303-11Z-2211 part no: 101131574 at unbeatable prices. Detailed Specifications of BNS 303-11Z-2211, 101131574 feature Magnetic drive principle and are housed in durable Glass-fibre, reinforced thermoplastic ensuring long-lasting protection against harsh environments. The actuating element is a Magnet providing an assured switching distance (Sao) of 8 mm and (Sar) of 18 mm for precise detection. The sensor is equipped with an for easy termination and features an ISO M30 thread for secure mounting. It is capable of handling a maximum switching voltage of and a switching current of up to 0.4 A with a switching frequency of Miscellaneous, Reed contacts With an IP67 degree of protection. Now's the Time to Secure a Quote for your requirement of Schmersal 36 Bk Width Across Flats Safety Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
