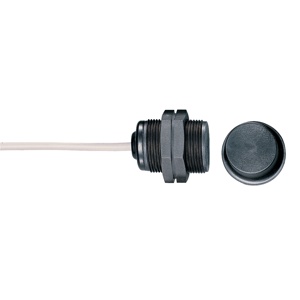

BNS 303-11Z 6,0M: 101130524 - Schmersal 1 NC Magnetic Safety Sensors
Technical Specifications of Schmersal 1 NC Magnetic Safety Sensors BNS 303-11Z 6,0M 101130524:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Cable |
Schmersal 1 NC Magnetic Safety Sensors, BNS 303-11Z 6,0M, 101130524 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | - |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 2 |
| Number of cable wires | - |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | 3 Nm |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | - |
| Termination | Cable |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 44 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 235 g |
Give Us a Call for Schmersal 1 NC Magnetic Safety Sensors BNS 303-11Z 6,0M part no: 101130524 at the lowest pricing. In-depth Technical Analysis of BNS 303-11Z 6,0M, 101130524 feature Magnetic drive principle and are housed in durable Glass-fibre, reinforced thermoplastic ensuring long-lasting protection against harsh environments. The actuating element is a Magnet providing an assured switching distance (Sao) of 5 mm and (Sar) of 15 mm for precise detection. The sensor is equipped with an Cable for easy termination and features an ISO M30 thread for secure mounting. It is capable of handling a maximum switching voltage of 100 VDC and a switching current of up to 0.4 A with a switching frequency of Miscellaneous, Reed contacts With an IP67 degree of protection.Elevate Your Project with a Quote for your requirement of Schmersal 1 NC Magnetic Safety Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
