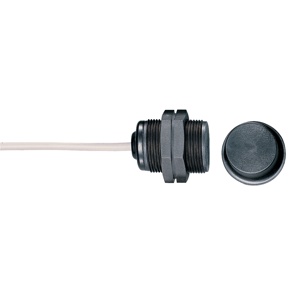

BNS 303-11Z 8,0M: 101132125 - Schmersal Schmersal 1 NC Safety Sensors
Technical Specifications of Schmersal 1 NC Safety Sensors BNS 303-11Z 8,0M 101132125:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Cable |
Schmersal Schmersal 1 NC Safety Sensors, BNS 303-11Z 8,0M, 101132125 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | - |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 2 |
| Number of cable wires | - |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | 3 Nm |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | - |
| Termination | Cable |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 44 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 300 g |
Please speak to our Technical Engineer for Schmersal 1 NC Safety Sensors BNS 303-11Z 8,0M part no: 101132125 at attractive prices. Technical Specs Summary of BNS 303-11Z 8,0M, 101132125 includes Magnetic drive principle and are housed in durable Glass-fibre, reinforced thermoplastic ensuring long-lasting protection against harsh environments. The actuating element is a Magnet providing an assured switching distance (Sao) of 5 mm and (Sar) of 15 mm for precise detection. The sensor is equipped with an Cable for easy termination and features an ISO M30 thread for secure mounting. It is capable of handling a maximum switching voltage of 100 VDC and a switching current of up to 0.4 A with a switching frequency of Miscellaneous, Reed contacts With an IP67 degree of protection. Match Your Needs with a Quote for your requirement of Schmersal 1 NC Safety Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
