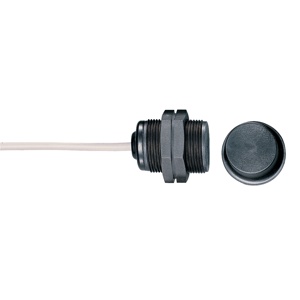

BNS 303-11ZG 10,0M: 101148971 - Schmersal 10-55 Hz Resitance Safety Sensors
Technical Specifications of Schmersal 10-55 Hz Resitance Safety Sensors BNS 303-11ZG 10,0M 101148971:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Cable |
Schmersal 10-55 Hz Resitance Safety Sensors, BNS 303-11ZG 10,0M, 101148971 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | - |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 2 |
| Number of cable wires | - |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | 3 Nm |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | - |
| Termination | Cable |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 44 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | 24 VDC |
| Switching current, maximum | 0.01 A |
| Switching capacity, maximum | 0.24 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 372 g |
Mail Us for your needs in Schmersal 10-55 Hz Resitance Safety Sensors BNS 303-11ZG 10,0M part no: 101148971 with budget-friendly prices. The Main Technical Parameters of BNS 303-11ZG 10,0M, 101148971 inludce Magnetic drive principle and are housed in durable Glass-fibre, reinforced thermoplastic ensuring long-lasting protection against harsh environments. The actuating element is a Magnet providing an assured switching distance (Sao) of 5 mm and (Sar) of 15 mm for precise detection. The sensor is equipped with an Cable for easy termination and features an ISO M30 thread for secure mounting. It is capable of handling a maximum switching voltage of 24 VDC and a switching current of up to 0.01 A with a switching frequency of Miscellaneous, Reed contacts With an IP67 degree of protection. Now's the Time to Secure a Quote for your requirement of Schmersal 10-55 Hz Resitance Safety Sensors. Customize Your Experience with a Quote for your requirement of Schmersal 10-55 Hz Resitance Safety Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
