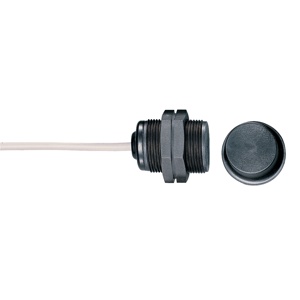

BNS 303-11ZG-ST: 101174794 - Schmersal SchmersalReed Contact Magnetic Safety Sensors
Technical Specifications of SchmersalReed Contact Magnetic Safety Sensors BNS 303-11ZG-ST 101174794:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Connector M12, 4-pole |
Schmersal SchmersalReed Contact Magnetic Safety Sensors, BNS 303-11ZG-ST, 101174794 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | - |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 2 |
| Number of cable wires | - |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | - |
| Termination | Connector M12, 4-pole |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 44 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | |
| Switching current, maximum | 0.01 A |
| Switching capacity, maximum | 0.24 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 38 g |
Talk to Our Engineer for SchmersalReed Contact Magnetic Safety Sensors BNS 303-11ZG-ST part no: 101174794 with exclusive offers. Core System Specifications of BNS 303-11ZG-ST, 101174794 are Magnetic drive principle and are housed in durable Glass-fibre, reinforced thermoplastic ensuring long-lasting protection against harsh environments. The actuating element is a Magnet providing an assured switching distance (Sao) of 5 mm and (Sar) of 15 mm for precise detection. The sensor is equipped with an Connector M12, 4-pole for easy termination and features an ISO M30 thread for secure mounting. It is capable of handling a maximum switching voltage of and a switching current of up to 0.01 A with a switching frequency of Miscellaneous, Reed contacts With an IP67 degree of protection. Don't Miss Out on a Quote for your requirement of SchmersalReed Contact Magnetic Safety Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
