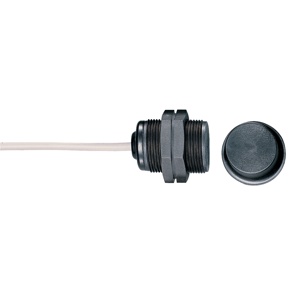

BNS 303-12ZG 10,0M: 101186932 - Schmersal 1 NO, 2 NC Safety Sesnors
Technical Specifications of Schmersal 1 NO, 2 NC Safety Sesnors BNS 303-12ZG 10,0M 101186932:
| Spec | Value |
|---|---|
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Cable |
Schmersal 1 NO, 2 NC Safety Sesnors, BNS 303-12ZG 10,0M, 101186932 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Thermoplastic |
| Duration of risk, maximum | - |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Number of cable wires | - |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Tightening torque of nuts, maximum | 3 Nm |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | - |
| Termination | Cable |
| Wire cross-section | - |
| Material of the Cable mantle | - |
| ISO thread of the sensor | M30 |
| Width across flats | 36 BK |
| Length of sensor | 44 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated operating voltage | - |
| Switching voltage, maximum | 24 VDC |
| Switching current, maximum | 0.01 A |
| Switching capacity, maximum | 0.24 W |
| Switching element | 1 NO contact, 2 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 380 g |
Get A Quote for Schmersal 1 NO, 2 NC Safety Sesnors BNS 303-12ZG 10,0M part no: 101186932 at the best price. Here are the brief Technical Specifications of BNS 303-12ZG 10,0M, 101186932 are Magnetic drive principle and are housed in durable Glass-fibre, reinforced thermoplastic ensuring long-lasting protection against harsh environments. The actuating element is a Magnet providing an assured switching distance (Sao) of 5 mm and (Sar) of 15 mm for precise detection. The sensor is equipped with an Cable for easy termination and features an ISO M30 thread for secure mounting. It is capable of handling a maximum switching voltage of 24 VDC and a switching current of up to 0.01 A with a switching frequency of Miscellaneous, Reed contacts With an IP67 degree of protection.It's Time to get a Quote for your requirement of Schmersal 1 NO, 2 NC Safety Sesnors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
