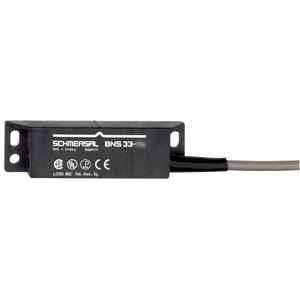

BNS 33-11Z 10,0M: 101121675 - Schmersal Schmersal IP67 Protection Safety Sensors
Technical Specifications of Schmersal IP67 Protection Safety Sensors BNS 33-11Z 10,0M 101121675:
| Spec | Value |
|---|---|
| Working principle | Magnetic drive |
| Length of cable | 10 m |
| Termination | |
| Degree of protection | IP67 |
Schmersal Schmersal IP67 Protection Safety Sensors, BNS 33-11Z 10,0M, 101121675 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 1 |
| Active area | |
| Actuating element | Magnet |
| Direction of motion | |
| Assured switching distance "ON" Sao | 5 mm, 8 mm |
| Assured switching distance "OFF" Sar | 15 mm, 18 mm |
| Length of cable | 10 m |
| Termination | |
| Wire cross-section | |
| Material of the Cable mantle | |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | |
| Switching current, maximum | |
| Switching capacity, maximum | |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Design of control elements | Miscellaneous, Reed contacts |
| Gross weight | 360 g |
Get A Quote for Schmersal IP67 Protection Safety Sensors BNS 33-11Z 10,0M part no: 101121675 at the best price. Here are the brief Technical Specifications of BNS 33-11Z 10,0M, 101121675 are Magnetic drive principle, with housing constructed from durable Glass-fibre, reinforced thermoplastic ensuring long-lasting reliability. The sensor features a Magnet as the actuating element, with an assured switching distance (Sao) of 5 mm, 8 mm and (Sar) of 15 mm, 18 mm, providing precise detection capabilities. It comes with a 10 m and terminated with a robust mantle, designed for flexibility and resistance to wear. The sensor supports a maximum switching current of with a switching frequency of up to 5 Hz making it ideal for dynamic and fast-paced applications. This sensor is IP67 rated, offering superior protection. It's Time to get a Quote for your requirement of Schmersal IP67 Protection Safety Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
