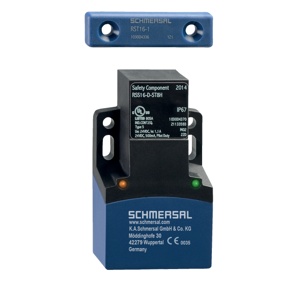

RSS16-I1-D-CC: 103009534 - Schmersal Lateral Area Safety Sensors
Technical Specifications of Schmersal Lateral Area Safety Sensors RSS16-I1-D-CC 103009534
| Spec | Value |
|---|---|
| Working Principle | RFID |
| Mounting | 2 x M5, Cylinder head screw |
| 15 mm | |
| Termination | Spring pulley connection |
Schmersal Lateral Area Safety Sensors, RSS16-I1-D-CC, 103009534 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | RFID |
| Housing construction form | Block |
| Installation conditions (mechanical) | Not flush |
| Sensor topology | Sensor for series wiring |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Active area | lateral front side cover-side |
| Reaction time, maximum | 100 ms |
| Duration of risk, maximum | 200 ms |
| Number of LEDs | 2 |
| Number of semi-conductor outputs with signaling function | 1 |
| Number of fail-safe digital outputs | 2 |
| Performance Level, up to | e |
| Category | 4 |
| PFH value | 6.30 x 10⁻¹¹ /h |
| PFD value | 1.50 x 10⁻⁵ |
| Mission time | 20 Year(s) |
| Actuating panels | front side rear from head |
| Mounting | 2 x M5, Cylinder head screw |
| Tightening torque of the fixing screws | 2 Nm |
| Switch distance, typical | 15 mm |
| Assured switching distance "ON" Sao | 12 mm |
| Assured switching distance "OFF" Sar | 30 mm |
| Hysteresis (Switching distance), maximum | 2 mm |
| Repeat accuracy R | 0.5 mm |
| Cable entry | 4 x M16 x 1,5 |
| Termination | Spring pulley connection |
| Length of sensor | 91 mm |
| Width of sensor | 52 mm |
| Height of sensor | 30 mm |
| Degree of protection | IP65 IP67 |
| Ambient temperature | -28 ... +70 °C |
| Storage and transport temperature | -28 ... +85 °C |
| Relative humidity, maximum | 93 % |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Operating voltage | 24 VDC -15 % / +10 % |
| Operating current, minimum | 0.5 mA |
| Rated operating voltage | 24 VDC |
| Operating current | 50 mA |
| Required rated short-circuit current | 100 A |
| Time to readiness, maximum | 2,000 ms |
| Switching frequency, maximum | 1 Hz |
| Current consumption of the safety inputs | 5 mA |
| Rated operating current (safety outputs) | 1,000 mA |
| Output current, (fail-safe output), maximum | 1 A |
| Design of control elements | p-type |
| Gross Weight | 250 g |
