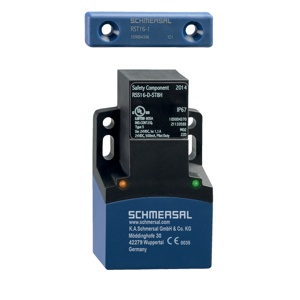

RSS16-I2-D-SK: 103009526 - Schmersal Category 4 Safety Sensors
Technical Specifications of Schmersal Category 4 Safety Sensors RSS16-I2-D-SK 103009526
| Spec | Value |
|---|---|
| Working Principle | RFID |
| Mounting | 2 x M5, Cylinder head screw |
| Switch Distance Typical | 15 mm |
| Termination | Screw terminals |
Schmersal Category 4 Safety Sensors, RSS16-I2-D-SK, 103009526 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | RFID |
| Housing construction form | Block |
| Installation conditions (mechanical) | Not flush |
| Sensor topology | Sensor for series wiring |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Active area | lateral front side cover-side |
| Reaction time, maximum | 100 ms |
| Duration of risk, maximum | 200 ms |
| Number of LEDs | 2 |
| Number of semi-conductor outputs with signaling function | 1 |
| Number of fail-safe digital outputs | 2 |
| Performance Level, up to | e |
| Category | 4 |
| PFH value | 6.30 x 10⁻¹¹ /h |
| PFD value | 1.50 x 10⁻⁵ |
| Mission time | 20 Year(s) |
| Actuating panels | front side rear from head |
| Mounting | 2 x M5, Cylinder head screw |
| Tightening torque of the fixing screws | 2 Nm |
| Switch distance, typical | 15 mm |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 30 mm |
| Hysteresis (Switching distance), maximum | 2 mm |
| Repeat accuracy R | 0.5 mm |
| Cable entry | 4 x M16 x 1,5 |
| Termination | Screw terminals |
| Length of sensor | 91 mm |
| Width of sensor | 52 mm |
| Height of sensor | 30 mm |
| Degree of protection | IP65 IP67 |
| Ambient temperature | -28 ... +70 °C |
| Storage and transport temperature | -28 ... +85 °C |
| Relative humidity, maximum | 93 % |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Operating voltage | 24 VDC -15 % / +10 % |
| Operating current, minimum | 0.5 mA |
| Rated operating voltage | 24 VDC |
| Operating current | 50 mA |
| Required rated short-circuit current | 100 A |
| Time to readiness, maximum | 2,000 ms |
| Switching frequency, maximum | 1 Hz |
| Current consumption of the safety inputs | 5 mA |
| Rated operating current (safety outputs) | 1,000 mA |
| Output current, (fail-safe output), maximum | 1 A |
| Design of control elements | p-type |
| Gross Weight | 275 g |
Talk to Our Engineer for Category 4 Safety Sensors RSS16-I2-D-SK part no: 103009526 with exclusive offers. Core System Specifications of RSS16-I2-D-SK, 103009526 are RFID principle, the sensor features a Block housing made from Plastic, glass-fibre reinforced thermoplastic, self-extinguishing properties. The sensor provides an assured switching distance of 5 mm and of 30 mm making it ideal for precise control tasks. The sensor's cable entry is compatible with a 4 x M16 x 1,5 setup, and it uses a Screw terminals for secure and efficient termination. Rated for 24 VDC operating voltage, the sensor supports an operating current of 50 mA ensuring energy efficiency, with a maximum switching frequency of 1 Hz. Don't Miss Out on a Quote for your requirement of Category 4 Safety Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
