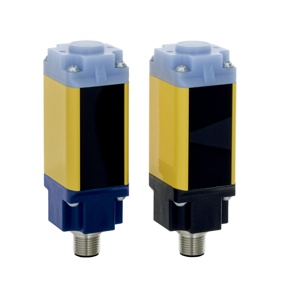

SLB440-ER-1-ST-H-EH: 103015491 - Schmersal M12, 4-pole Light Barrier
Technical Specifications of Schmersal Connector M12, 4-pole Light Barriers SLB440-ER-1-ST-H-EH 103015491:
| Spec | Value |
|---|---|
| Number of beams | 1 |
| PFH value | 1.50 x 10⁻⁸ /h |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
Schmersal Connector M12, 4-pole Light Barriers, SLB440-ER-1-ST-H-EH, 103015491 Technical Specifications:
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 22 ms |
| Reaction time, minimum | 7 ms |
| Number of fail-safe digital outputs | 2 |
| Number of beams | 1 |
| PFH value | 1.50 x 10⁻⁸ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Detection ability for test bodies at v = 1.6 m/s | 100 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 75 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector M12 |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length | 33 mm |
| Width | 27.8 mm |
| Height | 131 mm |
| Degree of protection | IP67 |
| Ambient temperature | -30 ... +50 °C |
| Storage and transport temperature | -30 ... +70 °C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 45 W |
| Electrical power consumption of the transmitter, maximum | 45 W |
| Length of cable, maximum | 100 m |
| Output current, (fail-safe output), maximum | 0.2 A |
| Design of control elements | p-type |
| Gross weight | 270 g |
Give Us a Call for Schmersal Connector M12, 4-pole Light Barriers SLB440-ER-1-ST-H-EH part no: 103015491 with budget-friendly prices. Technical Attributes are SLB440-ER-1-ST-H-EH, 103015491 include Aluminium housing with a swift reaction time ranging from 7 ms to 22 ms ensuring rapid and accurate detection. This sensor utilizes a single beam system with a protection field range between 0.3 m and 75 m providing versatile coverage for various operational needs. Equipped with a reliable Connector M12 termination, it guarantees secure and efficient connectivity. The sensor boasts an IP67 degree of protection, making it highly resistant to dust and water ingress, and suitable for harsh environments. It operates seamlessly within ambient temperatures of -30 ... +50 °C and supports a switching voltage OSSD high signal of 24 V for consistent and stable performance. Navigate Your Needs with a Quote for your requirement of Schmersal Connector M12, 4-pole Light Barriers. We excel in offering more cost-effective and supportive solutions than other Competitors.
