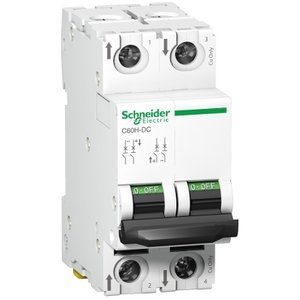

A9N61525: Schneider 2 Poles 5A C Curve Miniature Breaker
Technical Specifications of Schneider 2 Poles 5A C Curve Miniature Breaker A9N61525:
| Spec | Value |
|---|---|
| Productor Component type | Miniature circuit-breaker |
| Mounting Mode | Fixed |
| Mounting Support | 35 mm symmetrical DIN rail |
| Tightening torque | Power circuit: 2.5 N.m top or bottom |
Schneider 2 Poles 5A C Curve Miniature Breaker A9N61525 Technical Specifications:
| Specification | Value |
|---|---|
| Range | Acti9 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C60H-DC |
| Device application | Distribution |
| Poles description | 2P |
| Number of protected poles | 2 |
| [In] rated current | 5 A at 25 °C |
| Network type | DC |
| Trip unit technology | Thermal-magnetic |
| Breaking capacity | 10 kA Icu at 440 V DC conforming to EN 60947-210 kA Icu at 440 V DC conforming to IEC 60947-26 kA Icu at 500 V DC conforming to EN 60947-26 kA Icu at 500 V DC conforming to IEC 60947-220 kA Icu at 220 V DC conforming to GB 14048.220 kA Icu at 220 V DC conforming to IEC 60947-220 kA Icu at 250 V DC conforming to GB 14048.220 kA Icu at 250 V DC conforming to IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2Yes conforming to EN 60947-2 |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 500 V DC |
| [Ui] rated insulation voltage | 500 V DC conforming to IEC 60947-2500 V DC conforming to EN 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-26 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.256 kg |
| Colour | White |
| Tightening torque | Power circuit: 2.5 N.m top or bottom |
| Pollution degree | 3 conforming to EN 60947-23 conforming to IEC 60947-2 |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
Call us for Schneider 2 Poles 5A C Curve Miniature Breaker A9N61525 at the best rates. Technical Attributes of A9N61525 are the product is a Miniature circuit-breaker with a rated current of 5 A at 25 °C, designed specifically for DC applications. It supports an operational voltage of 500 V DC and an insulation voltage of 500 V DC conforming to IEC 60947-2500 V DC conforming to EN 60947-2 standards. The control type is a Toggle, ensuring easy and safe operation. The Acti9 C60H-DC is designed for Fixed installation on a 35 mm symmetrical DIN rail, making it ideal for industrial and commercial environments. Unlock Exclusive Pricing with a Quote for your requirement of Schneider 2 Poles 5A C Curve Miniature Breaker. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
