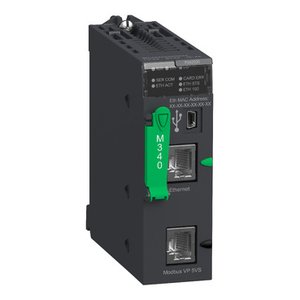

BMXP342020: Schneider Redundant PLC
Technical Specifications of Schneider Redundant PLC BMXP342020:
| Spec | Value |
|---|---|
| Analogue I/O processor capacity | 256 I/O multi-rack configuration66 I/O single-rack configuration |
| Product Component Type | Processor module |
| Current Consumption | 95 mA at 24 V DC |
| Supply | Internal power supply via rack |
Schneider Redundant PLC BMXP342020 Technical Specifications:
| Specification | Value |
|---|---|
| Bus length | 0…10 m serial link non isolated character mode segment0…10 m serial link non isolated Modbus segment0…1000 m serial link isolated character mode segment0…1000 m serial link isolated Modbus segment0…15 m character mode point-to-point0…15 m Modbus point-to-point |
| Number of addresses | 0…248 for character mode0…248 for Modbus |
| Execution time per instruction | 0.12 µs Boolean0.17 µs double-length words0.25 µs single-length words1.16 µs floating points |
| Number of slots | 11 |
| Maximum size of object areas | 256 kB unlocated internal data32634 %Mi located internal bits |
| Analogue I/O processor capacity | 256 I/O multi-rack configuration66 I/O single-rack configuration |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and dataInternal RAM 4096 kBInternal RAM 256 kB dataInternal RAM 3584 kB program constants and symbolsSupplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Transmission rate | - |
| Communication module processor capacity | 2 Ethernet communication module4 AS-Interface module |
| Integrated connection type | Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplexNon isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplexNon isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplexNon isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplexUSB port at 12 Mbit/sEthernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s |
| Number of racks | 4 |
| Product or component type | Processor module |
| Current consumption | 95 mA at 24 V DC |
| Number of devices | 2 point-to-point character mode2 point-to-point Modbus |
| Bus type | - |
| IP degree of protection | IP20 |
| Status LED | 1 LED (green) activity on Ethernet network (ETH ACT)1 LED (green) processor running (RUN)1 LED (green) status of Ethernet network (ETH STS)1 LED (red) data rate (ETH 100)1 LED (red) I/O module fault (I/O)1 LED (red) memory card fault (CARD ERR)1 LED (red) processor or system fault (ERR)1 LED (yellow) activity on Modbus (SER COM) |
| Number of application specific channel | 36 |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic8.1 Kinst/ms 100 % Boolean |
| Relative humidity | 10…95 % without condensation |
| Net weight | 0.205 kg |
| Embedded communication service | Bandwidth management, Ethernet TCP/IPData Editor, Ethernet TCP/IPModbus TCP messaging, Ethernet TCP/IPRack Viewer, Ethernet TCP/IPSNMP network administrator, Ethernet TCP/IP |
| Range of product | Modicon M340 automation platform |
| Supply | Internal power supply via rack |
| Ambient air temperature for operation | 0…60 °C |
| Monitoring | Diagnostic counters ModbusEvent counters Modbus |
| Motion control | - |
IndMALL Automation offers the Schneider Redundant PLC BMXP342020 at unbeatable prices. Part of the Modicon M340 automation platform, this processor module is designed for high-performance industrial control. It supports up to 256 I/O multi-rack configurations and 66 I/O single-rack configurations, providing flexibility for large systems. It also handles programmable loops for enhanced control capabilities. Weighing 4.033 kg with a height of 15.0 cm, it boasts a compact design suitable for tight spaces. With a current consumption of 95 mA at 24 V DC, it is energy-efficient, with power supplied internally via the rack. Get your quote today for the Schneider Redundant PLC and benefit from our unmatched pricing and support compared to other dealers and distributors.
