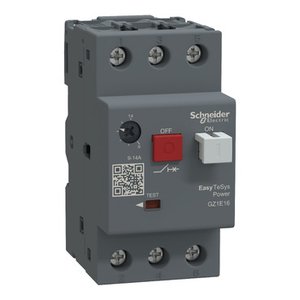

GZ1E16: Schneider 9-14A Thermomagnetic Circuit Breaker
Technical Specifications of Schneider 9-14A Thermomagnetic Circuit Breaker GZ1E16:
| Spec | Value |
|---|---|
| Mounting Support | Rail |
| Power Dissipation | 2.5 W (per pole) |
| Mounting Mode | By clipsBy screws |
| Connections Terminals | Screw clamp terminals 2 1…6 mm² - cable stiffness: solidScrew clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable endScrew clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
Schneider 9-14A Thermomagnetic Circuit Breaker GZ1E16 Technical Specifications:
| Specification | Value |
|---|---|
| Device application | Motor |
| mounting position | Any position |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Ambient air temperature for operation | -20…60 °C |
| Mounting support | Rail |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Electrical durability | 100000 cycles for AC-3 |
| Range | Easy TeSys |
| Magnetic tripping current | 170 A |
| Product or component type | Circuit breaker |
| poles description | 3P |
| Width | 44.5 mm |
| Control type | Push-button |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Colour | Grey (RAL 7011) |
| Power dissipation | 2.5 W (per pole) |
| mounting mode | By clipsBy screws |
| Operating altitude | 2000 m |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Thermal protection adjustment range | 9…14 A |
| Net weight | 0.26 kg |
| Motor power kW | 5.5 kW at 400 V AC 50/60 Hz5.5 kW at 440 V AC 50/60 Hz9 kW at 500 V AC 50/60 Hz11 kW at 690 V AC 50/60 Hz |
| Network type | AC |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Device short name | GZ1E |
| Utilisation category | AC-3 |
| Maximum operating rate | 25 cyc/h |
| Range of product | Easy TeSys Power |
| Ambient air temperature for storage | -40…80 °C |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Depth | 78 mm |
| Trip unit technology | Thermal-magnetic |
| Height | 89 mm |
| Connections - terminals | Screw clamp terminals 2 1…6 mm² - cable stiffness: solidScrew clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable endScrew clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
