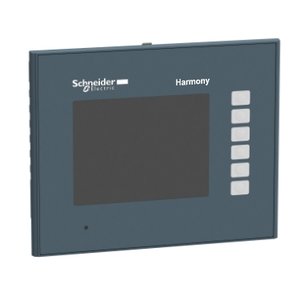

HMIGTO1300: Schneider 3.5inch TFT Touchscreen Panel
Technical Specifications of Schneider 3.5inch TFT Touchscreen Panel HMIGTO1300:
| Spec | Value |
|---|---|
| Databackedup | 128 kB internal RAM SRAM) |
| Memory Description | Flash EPROM, 64 MB |
| Display Colour | 65536 colours |
| Terminal Type | Touchscreen display |
Schneider 3.5inch TFT Touchscreen Panel HMIGTO1300 Technical Specifications:
| Specification | Value |
|---|---|
| Downloadable Protocols | Schneider Electric Modicon ModbusSchneider Electric Modicon Uni-TESchneider Electric Modicon Modbus PlusSchneider Electric Modicon FIPWAYMitsubishi Melsec third party protocolsOmron Sysmac third party protocolsRockwell Automation Allen-Bradley third party protocolsSiemens Simatic third party protocols |
| Data backedup | 128 kB internal RAM SRAM) |
| Standards | UL 508IEC 61131-2IEC 61000-6-2 |
| Supply | External source |
| Backlight lifespan | 50000 hours white 77 °F (25 °C) |
| Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
| Range of Product | Harmony GTO |
| Maximum power consumption in W | 5.2 W when power is not supplied to external devices4.2 W when backlight is OFF4.3 W when backlight is dimmed9.6 W |
| Net Weight | 0.9 lb(US) (0.4 kg) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Operating System | Harmony |
| Inrush current | 30 A |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2 |
| Relative humidity | 10…90 % without condensation |
| Depth | 1.7 in (42 mm) |
| Supply voltage limits | 19.2…28.8 V |
| Operating altitude | < 6561.68 ft (2000 m) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Width | 5.2 in (132 mm) |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| [Us] rated supply voltage | 24 V DC |
| Height | 4.2 in (106 mm) |
| Display colour | 65536 colours |
| IP degree of protection | IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel) |
| Terminal type | Touchscreen display |
| Vibration resistance | 9.8 m/s² 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-23.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 |
| Memory Description | Flash EPROM, 64 MB |
| Display Resolution | 320 x 240 pixels QVGA |
Ask for the Pricing of Schneider 3.5inch TFT Touchscreen Panel HMIGTO1300 at unbeatable prices. Detailed Specifications of HMIGTO1300 features Harmony GTO range, offering top-tier performance. The supply comes from an External source, and the backlight lifespan is rated at 50000 hours white 77 °F (25 °C). The touch-sensitive zone measures 1024 x 1024, providing precision in control. This sensor is designed for Flush mounting, with a net weight of 0.9 lb(US) (0.4 kg), and features a Backlit colour TFT LCD. The inrush current is 30 A, while the device’s depth measures 1.7 in (42 mm). The supply voltage limits range from 19.2…28.8 V and the sensor operates efficiently at altitudes below < 6561.68 ft (2000 m). Rated supply voltage [Us] is 24 V DC, with reliable terminal connections. Now's the Time to Secure a Quote for your requirement of Schneider 3.5inch TFT Touchscreen Panel. We're committed to offering more favorable pricing and more responsive support than other Traders.
