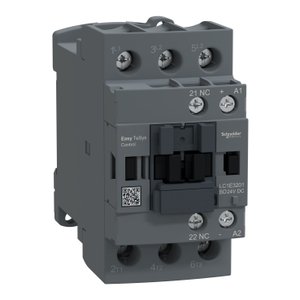

LC1E1210BD: Schneider Easy TeSys Contactor 12A 24V DC Coil NO
Technical Specifications of Schneider Easy TeSys Contactor 12A 24V DC Coil NO LC1E1210BD:
| Spec | Value |
|---|---|
| Product Component Type | Contactor |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| Power Dissipation Per Pole | 0.36 W AC-31.6 W AC-1 |
| Tightening Torque | Power circuit: 1.7 N.mControl circuit: 1.7 N.m |
Schneider Easy TeSys Contactor 12A 24V DC Coil NO LC1E1210BD Technical Specifications:
| Specification | Value |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 12 A (at <55 °C) at <= 440 V AC AC-3 for power circuit12 A (at <55 °C) at <= 440 V AC AC-3e for power circuit25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 24 V DC |
| Motor power kW | 3 kW at 220...230 V AC 50/60 Hz (AC-3)5.5 kW at 380...400 V AC 50/60 Hz (AC-3)5.5 kW at 415 V AC 50/60 Hz (AC-3)5.5 kW at 440 V AC 50/60 Hz (AC-3)7.5 kW at 500 V AC 50/60 Hz (AC-3)7.5 kW at 660...690 V AC 50/60 Hz (AC-3) |
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 25 A (at 55 °C) for power circuit |
| Irms rated making capacity | 156 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 102 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 105 A 40 °C - 10 s for power circuit61 A 40 °C - 60 s for power circuit30 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-125 A gG at <= 690 V coordination type 1 for power circuit |
| Power dissipation per pole | 0.36 W AC-31.6 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Control circuit type | DC |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational DC0.1...0.25 Uc (-5…55 °C):drop-out DC |
| Operating time | 53...72 ms on closing16...24 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable endControl circuit: 1 1…4 mm² - cable stiffness: solid without cable endControl circuit: 2 1…4 mm² - cable stiffness: solid without cable end |
| Tightening torque | Power circuit: 1.7 N.mControl circuit: 1.7 N.m |
| Auxiliary contact composition | 1 NO |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Mounting support | PlateDIN rail |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 93 mm |
| Net weight | 0.48 kg |
Ask for the Pricing of Schneider Easy TeSys Contactor 12A 24V DC Coil NO LC1E1210BD at unbeatable prices. Detailed Specifications of LC1E1210BD features Easy TeSys Control Range of products and the Contactor Product or component type 3P, designed for efficient performance in Power circuit: <= 690 V AC 50/60 Hz. This product features a rated operational current of 12 A (at <55 °C) at <= 440 V AC AC-3 for power circuit12 A (at <55 °C) at <= 440 V AC AC-3e for power circuit25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit. It operates at a control circuit voltage of 24 V DC, with 3 NO poles. The conventional free air thermal current is rated at 25 A (at 55 °C) for power circuit, and power dissipation per pole is 0.36 W AC-31.6 W AC-1. The rated insulation voltage is 690 V conforming to IEC 60947-4-1, and the impulse withstand voltage is 6 kV coil not connected to the power circuit conforming to IEC 60947. Now's the Time to Secure a Quote for your requirement of Schneider Easy TeSys Contactor 12A 24V DC Coil NO. We're committed to offering more favorable pricing and more responsive support than other Traders.
