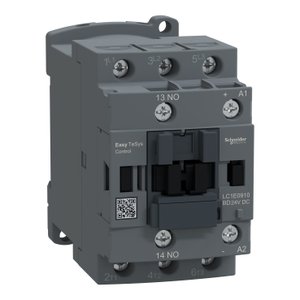

LC1E3210BD: Schneider Easy TeSys 32A 24V DC NO Auxiliary Contact
Technical Specifications of Schneider Easy TeSys 32A 24V DC NO Auxiliary Contact LC1E3210BD:
Spec | Value |
---|---|
Product Component Type | Contactor |
[Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
Power Dissipation Per Pole | 2 W AC-35 W AC-1 |
Tightening Torque | Power circuit: 2.5 N.mControl circuit: 1.7 N.m |
Schneider Easy TeSys 32A 24V DC NO Auxiliary Contact LC1E3210BD Technical Specifications:
Specification | Value |
---|---|
Range | Easy TeSys |
Range of product | Easy TeSys Control |
Product or component type | Contactor |
Poles description | 3P |
[Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
[Ie] rated operational current | 32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit32 A (at <55 °C) at <= 440 V AC AC-3e for power circuit50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
[Uc] control circuit voltage | 24 V DC |
Motor power kW | 7.5 kW at 220...230 V AC 50/60 Hz (AC-3)15 kW at 380...400 V AC 50/60 Hz (AC-3)15 kW at 415 V AC 50/60 Hz (AC-3)15 kW at 440 V AC 50/60 Hz (AC-3)18.5 kW at 500 V AC 50/60 Hz (AC-3)18.5 kW at 660...690 V AC 50/60 Hz (AC-3) |
Pole contact composition | 3 NO |
[Ith] conventional free air thermal current | 50 A (at 55 °C) for power circuit |
Irms rated making capacity | 416 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
Rated breaking capacity | 272 A at 440 V for power circuit conforming to IEC 60947 |
[Icw] rated short-time withstand current | 260 A 40 °C - 10 s for power circuit138 A 40 °C - 60 s for power circuit60 A 40 °C - 600 s for power circuit |
Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit |
Power dissipation per pole | 2 W AC-35 W AC-1 |
[Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
[Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
Control circuit type | DC |
Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational DC0.1...0.25 Uc (-5…55 °C):drop-out DC |
Operating time | 53...72 ms on closing16...24 ms on opening |
Maximum operating rate | 1800 cyc/h 60 °C |
Connections - terminals | Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable endControl circuit: 1 1…4 mm² - cable stiffness: solid without cable endControl circuit: 2 1…4 mm² - cable stiffness: solid without cable end |
Tightening torque | Power circuit: 2.5 N.mControl circuit: 1.7 N.m |
Auxiliary contact composition | 1 NO |
Minimum switching voltage | 17 V for signalling circuit |
Minimum switching current | 5 mA for signalling circuit |
Mounting support | DIN railPlate |
IP degree of protection | IP20 conforming to IEC 60529 |
Height | 85 mm |
Width | 56 mm |
Depth | 99 mm |
Net weight | 0.55 kg |
