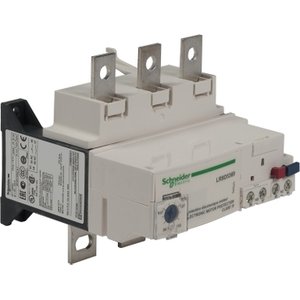

LR9D5369: Schneider Relay For High Impulse Voltage
Technical Specifications of Schneider Relay For High Impulse Voltage LR9D5369:
| Spec | Value |
|---|---|
| Range | TeSys |
| Control Type | Red push-button: stopBlue push-button: reset |
| IP Degree Protection | IP20 conforming to IEC 60529 |
| Mounting Support | Under contactorRail |
Schneider Relay For High Impulse Voltage LR9D5369 Technical Specifications:
| Specification | Value |
|---|---|
| Device short name | LR9D |
| Range | TeSys |
| Product name | TeSys LRDTeSys Deca |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Height | 118 mm |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Phase failure sensitivity | Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 |
| Temperature compensation | -20…60 °C |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Thermal overload class | Class 10 conforming to IEC 60947-4-1 |
| Network type | AC |
| Tripping threshold | 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-11.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1 |
| Control type | Red push-button: stopBlue push-button: reset |
| Mechanical robustness | Vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7 |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit4 A BS for signalling circuit |
| Product certifications | ULCSACCCUKCA |
| Depth | 125 mm |
| Width | 115 mm |
| Ambient air temperature for storage | -60…70 °C |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Thermal protection adjustment range | 90…150 A |
| Tightening torque | Alarm circuit: 0.45 N.m - on screw clamp terminalsPower circuit: 18 N.m - on bars M8Control circuit: 1.2 N.m - on screw clamp terminals |
| Mounting support | Under contactorRail |
| Relay application | Motor protection |
| Net weight | 0.885 kg |
Get A Quote for Schneider Relay For High Impulse Voltage LR9D5369 at the best price. Here are the brief Technical Specifications of LR9D5369 are device short name LR9D, from the TeSys range. The product, known as TeSys LRDTeSys Deca, is designed for reliable thermal protection in motor control applications. It has a conventional free air thermal current [Ith] of 5 A for signalling circuit, making it suitable for demanding environments. With a height of 118 mm and an IP20 conforming to IEC 60529, it provides protection against solid objects. The sensor operates efficiently in ambient temperatures ranging from -20…60 °C, with temperature compensation to maintain performance. The auxiliary contact composition includes 1 NO + 1 NC, and it features a thermal overload Class 10 conforming to IEC 60947-4-1. It supports both AC network types. The control type consists of a Red push-button: stopBlue push-button: reset. It's Time to get a Quote for your requirement of Schneider Relay For High Impulse Voltage. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
