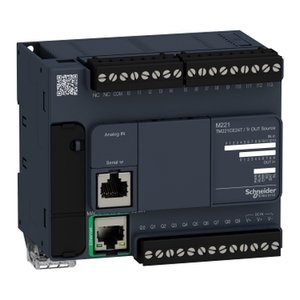

TM221CE24T: Schneider M221 24 IO Transistor PNP Controller
Technical Specifications of Schneider M221 24 IO Transistor PNP Controller TM221CE24T:
| Spec | Value |
|---|---|
| Maximum Leakage Current | 0.1 mA for transistor output |
| Discrete Output Voltage | 24 V DC |
| Discrete Output Type | Transistor |
| Range of Product | Modicon M221 |
Schneider M221 24 IO Transistor PNP Controller TM221CE24T Technical Specifications:
| Specification | Value |
|---|---|
| Maximum leakage current | 0.1 mA for transistor output |
| Discrete output logic | Positive logic (source) |
| Minimum load | - |
| Conversion time | 1 ms per channel + 1 controller cycle time for analogue input analog input |
| Ambient air temperature for storage | -25…70 °C |
| Pollution degree | <= 2 |
| Maximum current per output common | 5 A |
| Configurable filtering time | 0 ms for input3 ms for input12 ms for input |
| Power supply output current | 0.52 A 5 V for expansion bus0.2 A 24 V for expansion bus |
| Reset time | 1 s automatic reset |
| Discrete output voltage | 24 V DC |
| Discrete output type | Transistor |
| Switching frequency | - |
| Output frequency | 100 kHz for fast output (PWM/PLS mode) at Q0...Q15 kHz for output at Q2...Q30.1 kHz for output at Q4...Q9 |
| Backup time | 1 year at 25 °C (by interruption of power supply) |
| Maximum power consumption in VA | - |
| IP degree of protection | IP20 with protective cover in place |
| [Us] rated supply voltage | 24 V DC |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS4851.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232480 Mbit/s for USB |
| Input impedance | 3.4 kOhm for discrete input100 kOhm for analog input4.9 kOhm for fast input |
| Range of product | Modicon M221 |
| Net weight | 0.395 kg |
| Discrete output number | 10 transistor 2 fast output |
| Discrete input current | 7 mA for discrete input5 mA for fast input |
| Supply voltage limits | 20.4…28.8 V |
| Depth | 70 mm |
| Discrete I/O number | 24 |
| Electrical connection | removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 terminal(s) for connecting the 24 V DC power supply connector, 4 terminal(s) for analogue inputsMini B USB 2.0 connector for a programming terminal |
Obtain a Quote for Schneider M221 24 IO Transistor PNP Controller TM221CE24T at economical prices. Specifications Overview for TM221CE24T reveals ambient air storage temperatures ranging from -25…70 °C, ensuring durability under various conditions. It features 4 fast input (HSC mode) at 100 kHz 32 bits resolution, ideal for precise operations. The package width is 120.0 cm, and it supports a discrete output voltage of 24 V DC, with Transistor-type outputs. The discrete input voltage type is DC, and the sensor comes equipped with 10 transistor 2 fast output outputs for enhanced performance. The discrete input current is 7 mA for discrete input5 mA for fast input inputs. With a compact depth of 70 mm, this sensor integrates seamlessly into industrial setups, supporting a total of 24 discrete I/O points. It is designed to operate at altitudes up to 0...2000 m, making it suitable for a wide range of applications. Take the First Step with a Quote for your requirement of Schneider M221 24 IO Transistor PNP Controller. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
