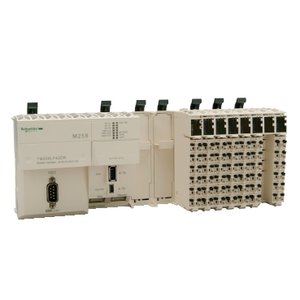

TM258LF42DR: Schneider 24V DC Modicon M258 Controller
Technical Specifications of Schneider 24V DC Modicon M258 Controller TM258LF42DR:
| Spec | Value |
|---|---|
| Output voltage limits | 19.2...28.8 V |
| Discrete output voltage | 24 V DC |
| Power consumption in W | 17.22 W |
| Mounting support | Symmetrical DIN rail |
Schneider 24V DC Modicon M258 Controller TM258LF42DR Technical Specifications:
| Specification | Value |
|---|---|
| Output voltage limits | 19.2...28.8 V |
| Isolation between channels and internal logic | 500 Vrms AC |
| [In] rated current | 0.04 A for embedded expert modules power10 A for I/O power segment0.33 A for main supply |
| Pollution degree | 2 conforming to IEC 60664 |
| Peak current | 100 kA (duration = <= 70 s) for main supply25 kA (duration = <= 500 s) for I/O power segment50 kA (duration = <= 150 s) for embedded expert modules power1.2 A (duration = > 70 s) for main supply |
| Discrete input number | 10 for fast input12 for input4 for regular input |
| Height | 99 mm |
| Maximum cable distance between devices | <30 m for fast input <30 m for fast output <30 m for regular input |
| Transmission rate | 125 kbit/s for bus length of 500 m for CANopen250 kbit/s for bus length of 250 m for CANopen50 kbit/s for bus length of 1000 m for CANopen500 kbit/s for bus length of 100 m for CANopen10 kbit/s for bus length of 5000 m for CANopen1000 kbit/s for bus length of 4 m for CANopen20 kbit/s for bus length of 2500 m for CANopen800 kbit/s for bus length of 25 m for CANopen |
| Width | 262.5 mm |
| Discrete output voltage | 24 V DC |
| Configurable filtering time | 0 ms for fast input/regular input and fast output1.5 ms for fast input/regular input and fast output12 ms for fast input/regular input and fast output4 ms for fast input/regular input and fast output |
| Input impedance | 6 kOhm for fast input6 kOhm for regular input |
| Storage altitude | 0…3000 m |
| Discrete input voltage | 24 V |
| Operating altitude | 0...2000 m |
| Discrete I/O number | 42 |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-310 V/m 80...2000 MHz conforming to IEC 61000-4-3 |
| [Us] rated supply voltage | 24 V DC for embedded expert modules power24 V DC for I/O power segment24 V DC for main supply |
| Integrated connection type | 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s2 free slots PCI1 CANopen with male SUB-D 9 connectorCANopen with master |
| Power consumption in W | 17.22 W |
| Mounting support | Symmetrical DIN rail |
| Discrete output current | 4 mA for fast output |
| Range of product | Modicon M258 |
| Product or component type | Logic controller |
| Net weight | 0.8 kg |
| Ambient air temperature for storage | -25…70 °C |
| Memory description | Flash 128 MBInternal RAM 64 MB |
| Vibration resistance | 1 gn at 8.4…150 Hz on DIN rail3.5 mm at 5…8.4 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
Get A Quote for Schneider 24V DC Modicon M258 Controller TM258LF42DR at the best price. Here are the brief Technical Specifications of TM258LF42DR are output voltage limits of 19.2...28.8 V and supports discrete output voltages of 24 V DC. The sensor features 12 relay output4 fast output, including with Source output logic. With a compact height of 99 mm and a width of 262.5 mm, it fits seamlessly into various setups. The input impedance is 6 kOhm for fast input6 kOhm for regular input, and the discrete input voltage is 24 V, ensuring compatibility with standard systems. The sensor operates at altitudes up to 0...2000 m and guarantees a voltage state of 0 at <= 5 V for fast input<= 5 V for fast output<= 5 V for regular input. It supports Symmetrical DIN rail mounting and offers a discrete output current of 4 mA for fast output. It's Time to get a Quote for your requirement of Schneider 24V DC Modicon M258 Controller. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
