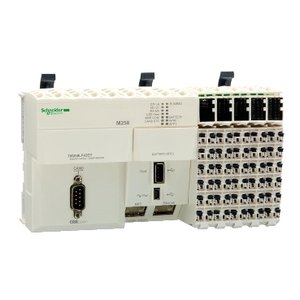

TM258LF42DT: Schneider CANopen Modicon M258 Controller
Technical specifications of Schneider CANopen Modicon M258 Controller TM258LF42DT 9e405m453#un:
| Spec | Value |
|---|---|
| [In] Rated Current | 0.04 A for embedded expert modules power10 A for I/O power segment0.26 A for main supply0.04 A for embedded expert modules power10 A for I/O power segment0.26 A for main supply |
| Peak Current | 100 kA (duration = <= 70 s) for main supply25 kA (duration = <= 500 s) for I/O power segment50 kA (duration = <= 150 s) for embedded expert modules power1.2 A (duration = > 70 s) for main supply100 kA (duration = <= 70 s) for main supply25 kA (duration = <= 500 s) for I/O power segment50 kA (duration = <= 150 s) for embedded expert modules power1.2 A (duration = > 70 s) for main supply |
| [Us] Rated Supply Voltage | 24 V DC for embedded expert modules power24 V DC for I/O power segment24 V DC for main supply24 V DC for embedded expert modules power24 V DC for I/O power segment24 V DC for main supply |
| Discrete Output Voltage | 24 V DC24 V DC |
| Power Consumption in W | 13.03 W13.03 W |
Schneider CANopen Modicon M258 Controller TM258LF42DT Technical Specifications:
| Specification | Value |
|---|---|
| Output Voltage Limits | 19.2...28.8 V |
| [In] Rated Current | 0.04 A for embedded expert modules power10 A for I/O power segment0.26 A for main supply |
| Peak Current | 100 kA (duration = <= 70 s) for main supply25 kA (duration = <= 500 s) for I/O power segment50 kA (duration = <= 150 s) for embedded expert modules power1.2 A (duration = > 70 s) for main supply |
| Discrete Input Number | 10 for fast input12 for input4 for regular input |
| Transmission Rate | 125 kbit/s for bus length of 500 m for CANopen250 kbit/s for bus length of 250 m for CANopen50 kbit/s for bus length of 1000 m for CANopen500 kbit/s for bus length of 100 m for CANopen10 kbit/s for bus length of 5000 m for CANopen1000 kbit/s for bus length of 4 m for CANopen20 kbit/s for bus length of 2500 m for CANopen800 kbit/s for bus length of 25 m for CANopen |
| Discrete Output Voltage | Source |
| Discrete Output Logic | Source |
| Input Impedance | 6 kOhm for fast input6 kOhm for regular input |
| Discrete Input Logic | Sink for fast inputSink for regular inputSource for input |
| Discrete I/O Number | 42 |
| Resistance to Electromagnetic Fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-310 V/m 80...2000 MHz conforming to IEC 61000-4-3 |
| [Us] Rated Supply Voltage | 24 V DC for embedded expert modules power24 V DC for I/O power segment24 V DC for main supply |
| Power Consumption in W | 13.03 W |
| Discrete Output Current | 4 mA for fast output |
| Range of Product | Modicon M258 |
| Product or Component Type | Logic controller |
| Net Weight | 0.55 kg |
| Vibration Resistance | 1 gn at 8.4…150 Hz on DIN rail3.5 mm at 5…8.4 Hz on DIN rail |
| Resistance to Electrostatic Discharge | 4 kV on contact conforming to IEC 61000-4-28 kV in air conforming to IEC 61000-4-2 |
| Shock Resistance | 15 gn for 11 ms |
| IP Degree of Protection | IP20 conforming to IEC 61131-2 |
| Discrete Input Voltage Type | DC |
| Supply Voltage Limits | 20.4…28.8 V |
Ask for the Pricing of Schneider CANopen Modicon M258 Controller TM258LF42DT at unbeatable prices. Detailed Specifications of TM258LF42DT features output voltage limits of 19.2...28.8 V and supports discrete output voltages of 24 V DC. The sensor features 12 output4 fast output, including with Source output logic. With a compact height of 99 mm and a width of 175 mm, it fits seamlessly into various setups. The input impedance is 6 kOhm for fast input6 kOhm for regular input, and the discrete input voltage is 24 V, ensuring compatibility with standard systems. The sensor operates at altitudes up to 0...2000 m and guarantees a voltage state of 0 at <= 5 V for fast input<= 5 V for fast output<= 5 V for regular input. It supports Symmetrical DIN rail mounting and offers a discrete output current of 4 mA for fast output. Now's the Time to Secure a Quote for your requirement of Schneider CANopen Modicon M258 Controller. We're committed to offering more favorable pricing and more responsive support than other Traders.
