Schneider PLC – Modicon Programmable Logic Controller
A Schneider PLC (Programmable Logic Controller) is an industrial automation controller designed to monitor inputs, execute control logic, and operate machines in real time. Developed by Schneider Electric, Schneider PLC systems are widely used in manufacturing plants, infrastructure projects, and energy systems.
In industrial automation, a PLC acts as the central controller for machinery such as packaging machines, conveyor systems, robotic cells, and process automation equipment. The PLC reads signals from sensors through Digital Input modules, processes control logic in the CPU module, and sends commands to actuators using Digital Output or Analog Output modules.
Across Indian industries—including automotive manufacturing, water treatment plants, pharmaceutical production lines, food processing plants, and energy infrastructure—Schneider PLC systems provide reliable machine control, scalable automation architecture, and seamless SCADA integration.

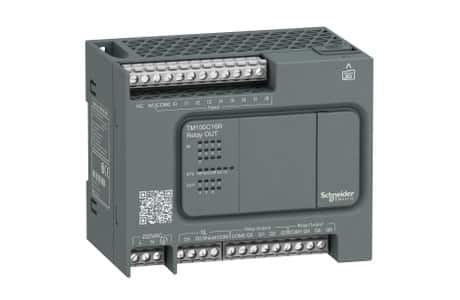

Schneider PLC – M100 Series
- I/O Options: 16, 24, 40 I/Os.
- Power Supply: AC.
- Communication: Serial line port.
- Outputs: Relay outputs.
- Ease of Use: Intuitive software, USB port, micro SD card support.
- Robustness: Overvoltage protection, IP20, high insulation/EMC.
- Applications: Ideal for compact machines in various industries.

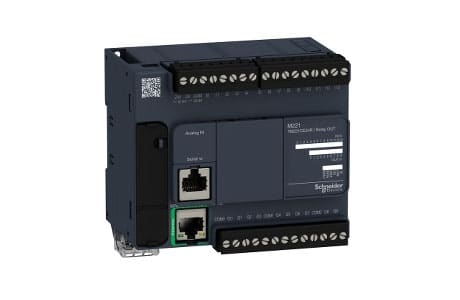

Schneider Modicon M221
- Performance: Best-in-class performance for its size.
- Versatility: Available in brick or book format for various installations.
- Connectivity: Options for Ethernet, wireless access, and web servers.
- Application Support: Dedicated application cartridge for specific applications like hoisting and packaging.
- Safety: Integration with the Modicon TM3 safety I/O system.
- Programming: Intuitive machine programming with EcoStruxure Machine Expert – Basic software.

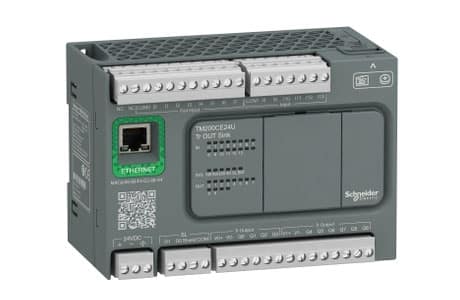

PLC Schneider – M200 Series
- I/O Options: Flexible I/Os with 2 cartridges and up to 4 expansions.
- Outputs: Relay and transistor outputs.
- Connectivity: Ethernet and serial line ports, micro-SD card slot, USB port.
- Programming and Maintenance: Easy setup with intuitive software, standard USB Mini-B port, micro SD memory card for fast duplication.
- Robustness: Inputs protected against overvoltage, high insulation/EMC level, IP20 protection.

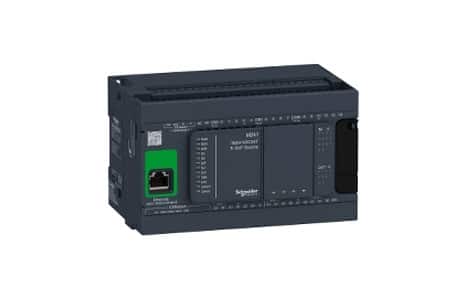

Schneider PLC Controller – M241 Series
- Multiple Ports: Ethernet, CANopen, serial lines, USB.
- High-Processing CPU: With cartridge extensions.
- Outputs: Pulse train outputs and high-speed counters.
- SD Card Support: For memory expansion.
- Safety Functions: Including motor starter compatibility.
- Modular Design: Analog and digital modules available.
- Communication: Supports Ethernet and Profibus.
- Programming: Via EcoStruxure Machine Expert.

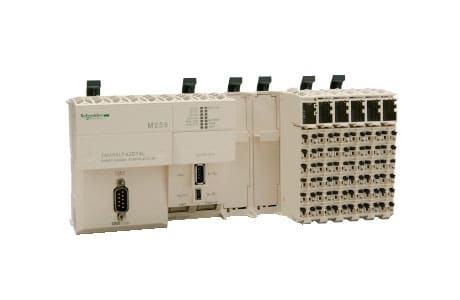

Schneider Modicon PLC – M258 Series
- High Performance: For logic applications, speed control, and high-speed counting.
- Connectivity: Ethernet & CANopen master, up to 2400 I/O.
- EcoStruxure Machine Expert: Software for machine design.
- Advanced Capabilities: HSC, Reflex output, Event Tasks.
- Applications: Ideal for packaging, machinery, and food and beverage industries.

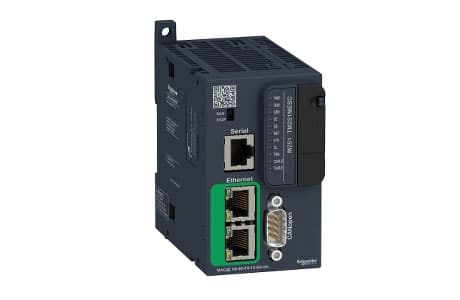

Schneider Electric Controller – M251 Series
- Ports: Serial line and USB port, CANopen, Modbus TCP, and EtherNet/IP.
- Ethernet Switch: Embedded with 2 ports.
- Communication Modules: Up to 3 modules.
- Programming: Intuitive machine programming with EcoStruxure Machine Expert.
- Flexibility: Ultra-compact format, expansion bus Modicon TM3, up to 14 fast expansion modules.

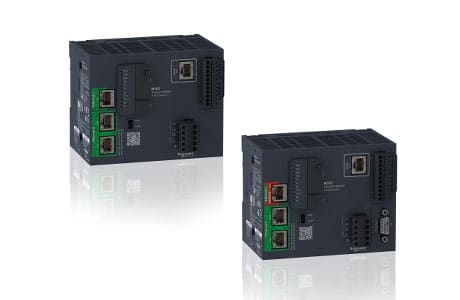

Schneider Electric PLC – M262 Series
- IIoT-Ready: Embedded Cloud protocols like MQTT, OPC UA Server and Client, API, and TLS encryption.
- Performance: 3 ns/inst. for logic applications, up to 24 synchronized axes in 4 ms for motion.
- Dual-Core CPU: Efficiently manages parallel application and communication.
- Digitization: Enhances machine performance with faster motion and logic.
- Flexibility: Increases flexibility across logic and motion applications.
- Efficiency: Saves time during commissioning and maintenance.

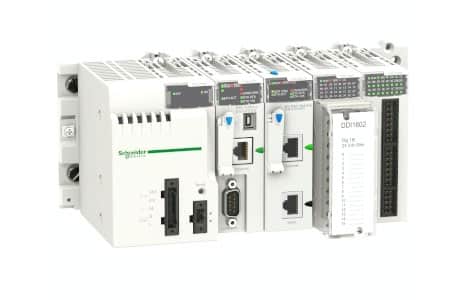

Schneider M340 PLC
- Compact Design: 100 mm high, 93 mm deep, 32 mm wide.
- Flexibility: Suits all control needs with scalable topology.
- Robustness: Exceeds certification standards.
- Built-in Communication: Field bus and/or Ethernet.
- SD Card Support: For application recovery or firmware upgrade.

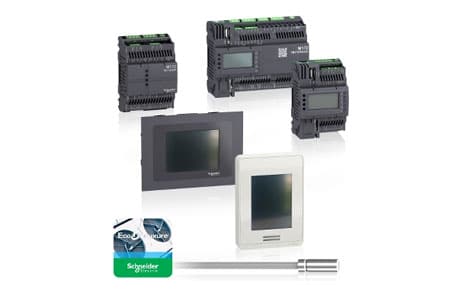

Schneider Logic Controller – M171/M172 Series
- Optimized and Performance Ranges: M171 for simple, compact machines; M172 for any size and BMS-connectable machines.
- Flexibility: High degree of flexibility for easy installation of additional modules.
- Connectivity: Multiple BMS connectivity options and an embedded web server.
- Cybersecurity: Secure Interface for data protection and compliance with IEC 62443 standard.
Schneider PLC Technology
PLC Architecture & Modular Design
Schneider PLC platforms support both compact PLC and modular PLC architectures. Compact PLCs such as the Modicon M221 are designed for standalone machines and small automation systems. These controllers integrate CPU, I/O modules, and communication ports in a compact form factor. For larger automation systems, modular PLC platforms like Modicon M340 and Modicon M580 provide a scalable control architecture. These systems use rack-based designs where modules are connected through a backplane bus.
Typical PLC system components include:
- CPU module
- Power supply module
- Digital Input module
- Digital Output module
- Analog Input module
- Analog Output module
- Ethernet communication module
This modular architecture allows engineers to design flexible automation systems that can scale with factory requirements.
CPU Performance & Scan Time
The CPU module is the central processor responsible for executing automation programs and coordinating machine operations.
Key performance parameters include:
- Scan time
- Program memory capacity
- instruction execution speed
- high-speed counter capability
- interrupt processing
High-performance PLC CPUs such as those used in the Modicon M580 provide deterministic scan cycles and support large program memory sizes, enabling control of complex industrial systems.
Fast scan times are essential for applications such as conveyor sorting systems, packaging machines, and robotic assembly lines where precise timing is required.
Communication & Industrial Networks
Industrial control systems require robust networking to connect controllers with field devices, monitoring systems, and supervisory control systems.
Schneider PLC platforms support several industrial communication technologies including:
- Modbus TCP industrial Ethernet
- Modbus RTU serial communication
- CANopen fieldbus network
- Ethernet/IP industrial communication
- RS-232 / RS-485 serial networks
These networks enable PLCs to exchange data with SCADA platforms, machine HMIs, and distributed field devices across production facilities.
Motion Control & Machine Automation
Modern automation machines require precise control of motors, encoders, and positioning systems.
Schneider PLC systems integrate with motion control modules and servo drives to coordinate machine movement across multiple axes. These controllers are commonly used in:
- robotic assembly lines
- CNC machining centers
- packaging machines
- injection molding machines
Motion control modules enable PLCs to perform synchronized positioning, electronic gearing, and coordinated machine operations.
Product List:
| Model No | Image | Product or Component Type | Rated Supply Voltage | Analogue Input Number | Discrete Output Type | Discrete Output Number |
|---|---|---|---|---|---|---|

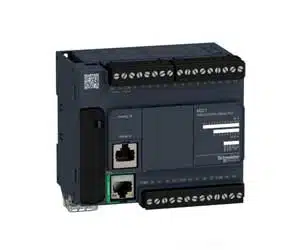

| TM221CE24R |  |
Logic controller | 100…240 V AC | 2 at 0…10 V | Relay normally open | 10 relay |

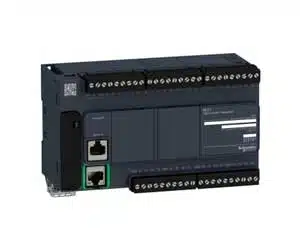

| TM221CE40R |  |
Logic controller | 100…240 V AC | 2 at 0…10 V | Relay normally open | 16 relay |

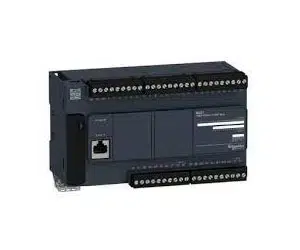

| TM221C40U |  |
Logic controller | 24 V DC | 2 at 0…10 V | Transistor | 16 transistor 4 fast output |

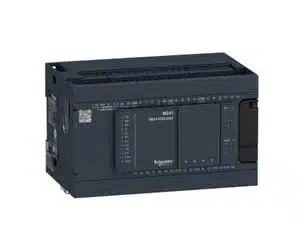

| TM241C24R |  |
Logic controller | 100…240 V AC | – | Transistor Relay |
6 relay 4 transistor 4 fast output |

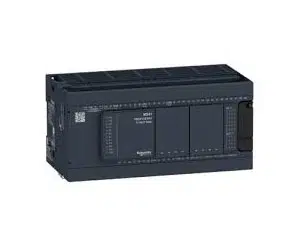

| TM241C40R |  |
Logic controller | 100…240 V AC | – | Relay Transistor |
4 transistor 4 fast output 12 relay |
How to Select Schneider PLC
Selecting a Schneider PLC requires analyzing the automation requirements of the machine or plant.
Required I/O Count: Determine the number of Digital Inputs, Digital Outputs, Analog Inputs, and Analog Outputs required for sensors and actuators.
CPU Processing Requirements: High-speed automation systems require PLC CPUs with faster scan times and larger program memory.
Motion Control Needs: Machines with servo motors or coordinated axes require PLC platforms capable of supporting motion control modules.
Communication Protocols: Verify compatibility with industrial communication protocols such as Modbus TCP, Ethernet/IP, or CANopen.
Expansion Capability: Large factories require modular PLC platforms with rack-based expansion and distributed remote I/O modules.
Redundancy Requirements: Critical infrastructure applications such as water treatment plants or power distribution systems may require redundant PLC CPU configurations.
Industrial Environment Conditions: Controllers should meet electrical panel safety requirements and comply with CE and RoHS industrial standards.
Software Compatibility: Ensure compatibility with EcoStruxure engineering software and SCADA platforms used in the facility.
Why Industries Choose Schneider PLC
Proven Industrial Reliability: Schneider PLC systems are widely used in manufacturing plants, infrastructure systems, and energy automation due to their reliable operation and long lifecycle.
High-Speed Processing Performance: Advanced PLC CPUs provide fast scan cycles and deterministic machine control required in modern automation systems.
Scalable Automation Architecture: Schneider PLC platforms support expansion through modular rack systems and distributed I/O modules, enabling factories to grow without redesigning control systems.
Advanced Industrial Networking: Native support for industrial protocols such as Modbus TCP and Ethernet/IP enables integration with SCADA systems and distributed industrial networks.
EcoStruxure Smart Industry Integration: Schneider PLC platforms integrate with the EcoStruxure architecture, enabling digital manufacturing, predictive maintenance, and connected industrial systems.
Global Automation Ecosystem: Schneider Electric maintains a strong global presence with extensive industrial automation support and long-term product availability.
Frequently Asked Questions
What are Schneider PLC's?
A Schneider PLC (Programmable Logic Controller) is an automation device for logic, motion, and process control in industrial applications. Built with Schneider Electric’s EcoStruxure Machine Expert software, these PLCs offer user-friendly programming, real-time processing, and modular design for flexibility.
What are the Different Types of PLC Communication Connectors?
How to Configure Schneider PLC?
Configuring Schneider PLC involves Schneider’s software tools. Users connect the PLC to a computer, set tasks, and design logic using the software. Following Schneider’s manuals ensures success.
What is Modbus in PLC?
Which Program is Used with M340?
The M340 PLC uses EcoStruxure Machine Expert for programming. This software simplifies machine automation, logic design, and ensures efficient M340 operation. Regular updates enhance its functionality.
If you require Schneider PLC Controllers, get a quote now.
