Selec Counters | Preset & Pulse Counter
IndMALL Automation presents the comprehensive Selec Counters series, meticulously designed for diverse industrial applications. These counters range from totalisers like the XC410B to multifunction programmable units such as the XTC562, equipped to handle various functions including timing, counting, and rate control. Display options vary from 6 to 7 1/2 digits, available in both LED and LCD formats, ensuring clarity and precision in readouts. Selec Counters are capable of high-speed inputs up to 5KHz and offer multiple power options, including battery and 90-270V AC/DC. Sizes are varied to accommodate different panel requirements, with compact and standard options available. Each model is designed for easy panel mounting, enhancing integration and functionality in automated systems.

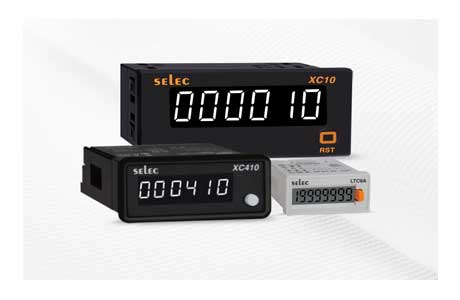

Selec Counters:Totaliser
Models: Include XC410B, LTC9A, XC10D, XTC4102, XC10, XC410C.
- Display Types: Options range from 6 to 7 1/2 digits, available in LED or LCD.
- Functionalities: Count totalisers, time/count totalisers, and rate indicators.
- Input Speed: Up to 5KHz for counters.
- Power Options: Battery powered or 90-270V AC/DC.
- Sensor Supply: Built-in 12V DC sensor supply for certain models.
- Sizes: Available in compact sizes like 36x72mm and larger 48x96mm.
- Reset Options: Front panel reset available.

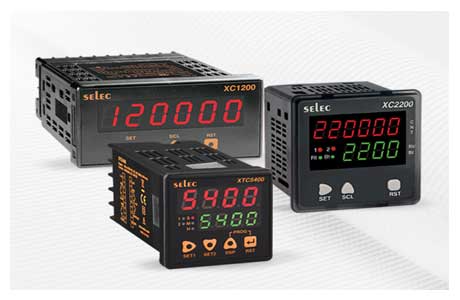

Selec Counter Meter:Preset counters

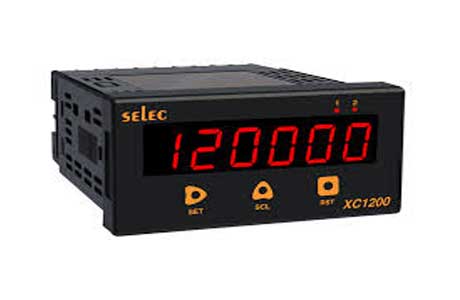

Models: XC1200, XC2200, XC22B.
- Display: LED, available in single and dual formats.
- Power Supply: 90 to 270V AC/DC for all models.
- Functionalities: Auto reset, NPN/PNP input, timer + counter.
- Mounting: Panel installation for easy integration.

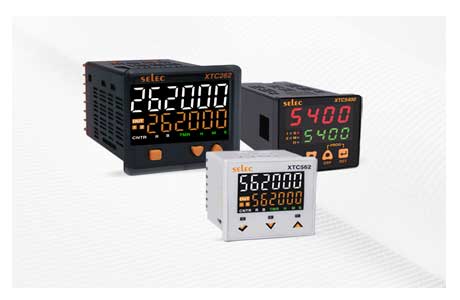

Selec Pulse Counter:Multifunction programmable
Models: XTC562, XTC5400, XTC262.
- Display: 6+6 digit, 7 segment digital.
- Functionalities: Timer, counter, rate controller, batch counter.
- Dual Set Points: For precise control.
- Sizes: Available in 48×48 mm and 72×72 mm.
- Power Supply: 90 to 270V AC/DC.
- Certification: CE certified for quality and safety.
Selec’s Pro Series counters offer a comprehensive range of options for industrial applications. This series includes Totalisers with LCD or LED displays, versatile Programmable/Preset Counters, and precision Rate Indicators capable of measuring up to 9999 RPM. Additionally, the series features a Multifunctional Digital Timer + Programmable Counter that combines timing and counting functionalities into one device, configurable for multiple modes. All units are designed for easy setup and are available with universal or battery power options, ensuring reliability and compliance with CE safety standards. These counters are ideal for precise control and monitoring in industrial settings, enhancing operational efficiency and reliability.
Frequently Asked Questions
What does a digital counter do?
A digital counter is an electronic device that records the number of occurrences of a specific event or process, often in relation to a clock signal. It stores and sometimes displays this count, providing a precise measure of event frequency or duration. Digital counters are essential in various applications, from manufacturing to computing, where accurate tracking of events is crucial.
What is the price of Selec counter XC22B?
The Selec counter model XC22B is priced at Rs 2342 per piece in India. This model features digital on-off counting, a capacity of up to 9999 counts, and is identified by the model name/number XC22B-4-AR-M1-230. It is designed to offer accurate and reliable counting solutions for various industrial applications.
What are the applications of digital counters?
Digital counters are versatile tools in digital electronics with multiple applications including frequency measurement and division, timing, binary arithmetic, data storage, and digital signal processing. These counters are essential for tasks that require precise quantification of events, such as counting the occurrences of a digital signal or measuring the duration of an event.
