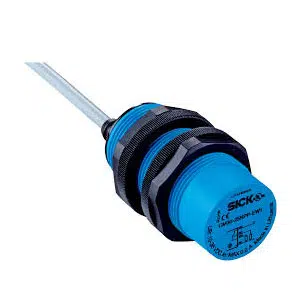

CM30-16BAP-KW1: 6028411 - Sick 2m Cable Capacitive Sensor

SpecValue
HousingCylindrical thread design
Thread SizeM30 x 1.5
DiameterØ 30 mm
Sensing Range2 mm ... 16 mm
Installation TypeFlush

Sick 2m Cable Capacitive Sensor CM30-16BAP-KW1, 6028411 Technical Specifications:

SpecificationValue
HousingCylindrical thread design
Thread sizeM30 x 1.5
DiameterØ 30 mm
Sensing range Sn2 mm ... 16 mm
Safe sensing range Sa11.52 mm
Installation typeFlush
Switching frequency10 Hz
Connection type2m Cable
Switching output-
Output functionNC or NO
Output characteristic-
Electrical wiringAC 2-wire
AdjustmentPotentiometer, 11 turns (Sensitivity)
Enclosure ratingIP67 (According to EN 60529)
Items suppliedMounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x)
Give Us a Call for Sick 2m Cable Capacitive Sensor CM30-16BAP-KW1 part no: 6028411 at the lowest pricing. In-depth Technical Analysis of CM30-16BAP-KW1, 6028411 feature Cylindrical thread design housing, M30 x 1.5 thread size, Ø 30 mm diameter, 2 mm ... 16 mm sensing range, Flush Installation, 10 Hz frequency, 2m Cable, -, AC 2-wire , NC or NO output. Elevate Your Project with a Quote for your requirement of Sick 2m Cable Capacitive Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
