Sick Fork Sensor: Ultrasonic Fork Sensor
Looking for high-precision detection solutions for Sick Fork Sensor? IndMALL Automation offers WF Series, is ideal for high-speed applications with its quick response time and integrated design. The WFM Series, with its easy installation and rugged build, is perfect for part detection and logistics. Our Ultrasonic Fork Sensor UF Series excels in detecting various materials, including transparent labels, thanks to its ultrasonic technology.
For compact spaces, the UFS Series is efficient in detecting small label gaps, while the WFE Series offers high switching frequency and versatile functionality. Choose IndMALL Automation for reliable and precise Sick Fork Sensors, enhancing efficiency and accuracy in your industrial processes. We can assure our prices are better than Authorized Sick fork sensor Dealers or Sick sensor distributors in Bangalore, Pondicherry, Chennai, Coimbatore, Mumbai, Pune, Mumbai, Hyderabad, and Pan India. Check out SICK fork sensors regular moving models.

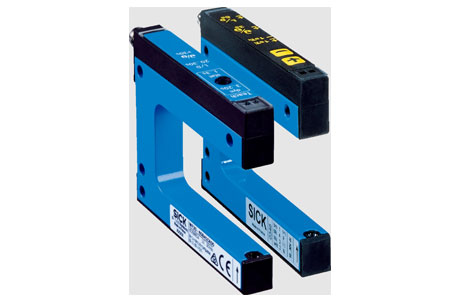

Sick Fork Sensor: WF Series
- Design: Integrated sender and receiver, no adjustment needed.
- Fork Sizes: 2 mm to 120 mm width, 40 mm to 95 mm depth.
- Response Time: 100 µs, suitable for high-speed applications.
- Light Source: Infrared for ambient light immunity.
- Settings: Adjustable via IO-Link, teach-in button, or buttons.
- Housing: Aluminum, IP 65 rated.
- Use: Detects labels, marks, sheets, holes, edges at high speeds.

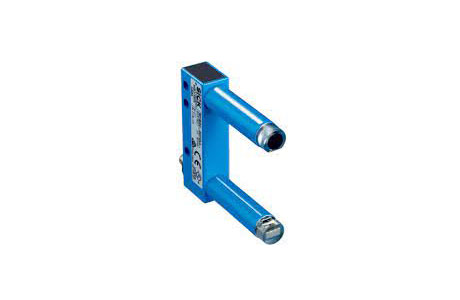

Sick Fork Sensors: WFM Series
- Easy Installation: Plug-and-play setup.
- Visibility: All-round visible receive indicator.
- Integrated Design: Sender and receiver in one housing.
- Fork Sizes: Widths from 30 mm to 180 mm, depths from 40 mm to 120 mm.
- Durability: Rugged aluminum housing, IP67 rated.
- Applications: Suitable for part detection, presence checking, and intralogistics.

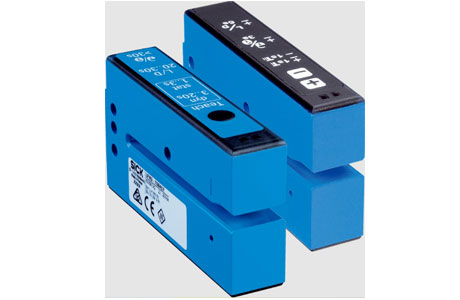

Sick Ultrasonic Fork Sensor: UF Series
- Technology: Ultrasonic, relying on material thickness for sound wave absorption.
- Response Time: Fast, at 250 µs.
- Design: Compact, rugged aluminum housing, IP65 rated.
- Flexibility: Detects transparent, opaque, or printed labels, unaffected by metallic foils.
- Adjustment: Simple and accurate via teach-in button or plus/minus buttons.

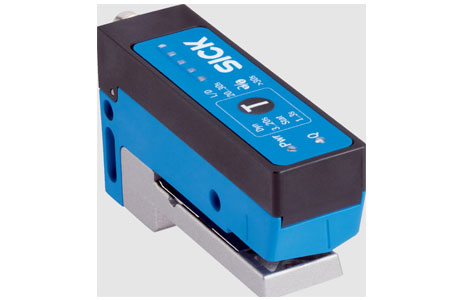

Sick Ultrasonic Fork Sensors: UFS Series
- Design: Slim housing, ideal for compact installations.
- Technology: Ultrasonic, effective for various labels regardless of appearance.
- Label Detection: Efficient in detecting small label gaps down to 1 mm.
- Display: Indicates operating reserve and teach-in quality.
- IO-Link: Enables easy adjustments and monitoring during operation.
- Applications: Suitable for labeling machines and related tasks.

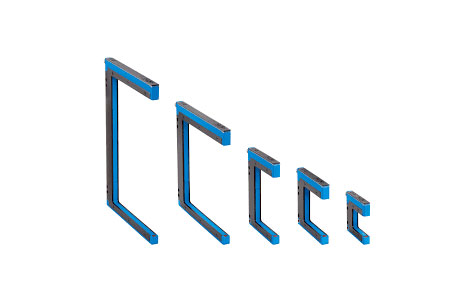

Fork Sensor Sick: WFE Series
- Fork Widths: Ranges from 30 mm to 180 mm.
- Switching Frequency: High, at 5 kHz.
- Minimum Detectable Object: 0.5 mm.
- Housing: Durable ABS with carbon steel frame, IP67 rated.
- Functionality: Sensitivity adjustment, light/dark switching, push-pull output.
- Installation: Easy, with pre-aligned sender and receiver.
At IndMALL Automation, we offer a reliable Sick fork sensor ideal for precise object detection. This sensor is known for its accuracy and efficiency in various industrial settings. Our Sick ultrasonic fork sensor excels in detecting transparent and high-speed objects, making it versatile for diverse applications.
It’s durable, easy to install, and a preferred choice for many industries. Choose IndMALL Automation for top-quality Sick fork sensors, enhancing your automation processes with precision and reliability. Find our complete range of SICK fork sensors.
Product List:
| Model No | Image | Dimensions (W x H x D) | Fork width | Fork depth | Switching output | Supply voltage |
|---|---|---|---|---|---|---|

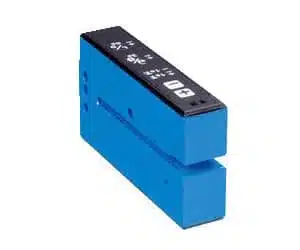

| UFN3-70B413 |  |
18 mm x 47.5 mm x 92.5 mm | 3 mm | 69 mm | PNP, NPN | 10 V DC … 30 V DC |

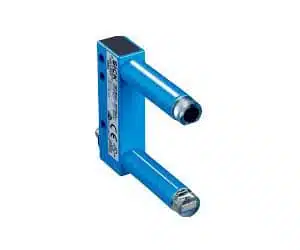

| WFM80-60P311 |  |
10 mm x 100 mm x 77.5 mm | 80 mm | 60 mm | PNP | 10 V DC … 30 V DC |

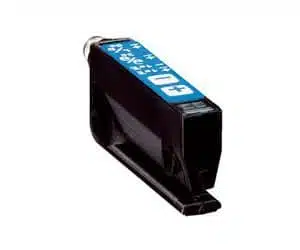

| WFS3-40N415 |  |
10 mm x 25 mm x 64.3 mm | 3 mm | 42 mm | NPN | 10 V DC … 30 V DC |

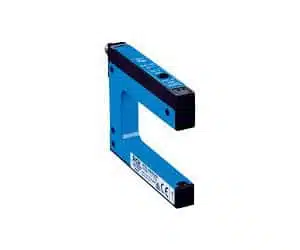

| WF80-40B41CA00 |  |
10 mm x 110 mm x 57 mm | 80 mm | 42 mm | Push-pull: PNP/NPN | 10 V DC … 30 V DC |
Frequently Asked Questions
What does a Fork Sensor Do?
A fork sensor, also known as a slot sensor, is designed to detect objects passing through its fork-shaped structure. It consists of an emitter and receiver placed opposite each other, creating a uniform light beam.
When an object interrupts this beam, the sensor detects its presence, making it ideal for counting, detecting, and positioning tasks in various applications.
What is Fork Light Sensor?
A fork light sensor is a type of optical sensor with a fork-like shape, comprising an integrated light emitter and receiver. It detects objects passing between its prongs by sensing the interruption of the light beam.
This sensor is commonly used for precise positioning, counting, and detection tasks in automation and manufacturing processes.
How does a Vibrating Fork Level Switch Work?
A vibrating fork level switch works by using two prongs that vibrate at a natural frequency. When immersed in a medium, like a liquid or solid, the vibration frequency changes. This change is detected by the device’s electronics, which then trigger a switch, indicating the presence or absence of the material at a specific level.
How do Optical Fork Sensors Work?
Optical fork sensors work by emitting a light beam from one prong and receiving it on the opposite prong. When an object passes between the prongs, it interrupts the light beam.
This interruption is detected by the receiver, triggering a response such as counting, detecting, or signaling the presence of the object. These sensors are widely used for precise object detection in automation processes.
