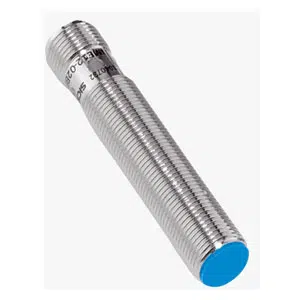

IME12-04BPOZC0SS01: 1042579 - Sick M12 Non-flush Inductive Sensor

SpecValue
HousingCylindrical thread design, Standard design
Thread SizeM12 x 1
DiameterØ 12 mm
Sensing Range4 mm
Connection TypeMale connector M12, 4-pin

Sick M12 Non-flush Inductive Sensor IME12-04BPOZC0SS01, 1042579 Technical Specifications:

SpecificationValue
HousingCylindrical thread design, Standard design
Thread sizeM12 x 1
DiameterØ 12 mm
Sensing range Sn4 mm
Safe sensing range Sa3.24 mm
Installation typeNon-flush
Switching frequency2,000 Hz
Connection typeMale connector M12, 4-pin
Switching outputPNP
Output functionNC
Electrical wiringDC 3-wire
Enclosure ratingIP67 1)
Items suppliedMounting nut, brass, nickel-plated (2x)
Give Us a Call for Sick M12 Non-flush Inductive Sensor IME12-04BPOZC0SS01 part no: 1042579 with budget-friendly prices. Technical Attributes are IME12-04BPOZC0SS01, 1042579 include Cylindrical thread design, Standard design housing, M12 x 1 thread size, Ø 12 mm diameter, 4 mm sensing range, 3.24 mm safe sensing range, Non-flush Installation, 2,000 Hz frequency, Male connector M12, 4-pin, NC output, DC 3-wire . Navigate Your Needs with a Quote for your requirement of Sick M12 Non-flush Inductive Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
