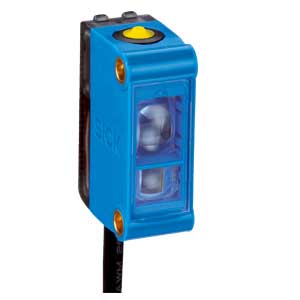

KTM-WN11172P: 1082137 - Sick Small Housing NPN Contrast Sensor
Technical Specifications of Sick Small Housing NPN Contrast Sensor KTM-WN11172P 1082137:
| Spec | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | ≤ 12.5 mm |
| Switching output | NPN |
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
Sick Small Housing NPN Contrast Sensor KTM-WN11172P, 1082137 Technical Specifications:
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | ≤ 12.5 mm |
| Sensing distance tolerance | ± 3 mm |
| Housing design | Small |
| Light source | LED, RGB 1) |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 1.6 mm x 9.5 mm |
| Light spot direction | Vertical 2) |
| Adjustment | Teach-in button |
| Supply voltage | 12 V DC ... 24 V DC 1) |
| Response time | 32 µs 5) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Enclosure rating | IP67 |
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
| Ambient operating temperature | –10 °C ... +55 °C |
Ask for the Pricing of Sick Small Housing NPN Contrast Sensor KTM-WN11172P part no: 1082137 at unbeatable prices. Detailed Specifications of KTM-WN11172P, 1082137 feature compact sensor measures 12 mm x 31.5 mm x 21 mm and has a sensing distance of ≤ 12.5 mm ± 3 mm tolerance. It uses LED RGB technology with wavelengths of 470 nm, 525 nm, 625 nm, and features a beam spot size of 1.6 mm x 9.5 mm. The sensor operates on 32 µs 5) power supply and includes a teach-in button for easy setup. With a fast response time of NPN and Light/dark switching output. The device has an Cable with M12 male connector, 4-pin, 0.2 m ratings, operates in temperatures from –10 °C ... +55 °C. Now's the Time to Secure a Quote for your requirement of Sick Small Housing NPN Contrast Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
