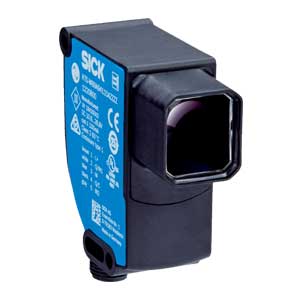

KTS-WB9134115AZZZZZZSZZZZZZZZ1: 1222250 - Sick 3.9 mm x 0.9 mm Light Spot Contrast Sensor
Technical Specifications of Sick 3.9 mm x 0.9 mm Light Spot Contrast Sensor KTS-WB9134115AZZZZZZSZZZZZZZZ1 1222250:
| Spec | Value |
|---|---|
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Sensing distance | ≤ 40 mm |
| Switching output | Push-pull: PNP/NPN |
| Connection type | Male connector M12, 5-pin |
Sick 3.9 mm x 0.9 mm Light Spot Contrast Sensor KTS-WB9134115AZZZZZZSZZZZZZZZ1, 1222250 Technical Specifications:
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Sensing distance | ≤ 40 mm |
| Sensing distance tolerance | ± 3 mm |
| Housing design | Middle |
| Light source | LED, RGB 1) |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 3.9 mm x 0.9 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC 1) |
| Response time | 20 µs 6) 7) |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | –20 °C ... +60 °C |
Send Us an Email for Sick 3.9 mm x 0.9 mm Light Spot Contrast Sensor KTS-WB9134115AZZZZZZSZZZZZZZZ1 part no: 1222250 with budget-friendly prices. Technical Attributes of KTS-WB9134115AZZZZZZSZZZZZZZZ1, 1222250 includes Compact sensor measures 26 mm x 62 mm x 47.5 mm and has a sensing distance of ≤ 40 mm ± 3 mm tolerance. It uses LED RGB technology with wavelengths of 470 nm, 525 nm, 625 nm, and features a beam spot size of 3.9 mm x 0.9 mm. The sensor operates on 20 µs 6) 7) power supply and includes a teach-in button for easy setup. With a fast response time of Push-pull: PNP/NPN and - output. The device has an Male connector M12, 5-pin ratings, operates in temperatures from –20 °C ... +60 °C. Now's the Time to Secure Quote for your requirement of Sick 3.9 mm x 0.9 mm Light Spot Contrast Sensor. Rest assured, our pricing and support outshine other Suppliers.
