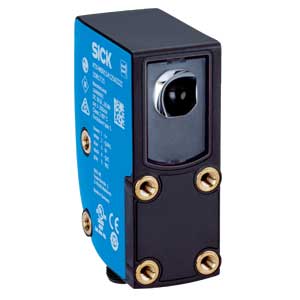

KTX-WBN1141252ZZZZ: 1220055 - Sick 470 nm, 525 nm, 625 nm Wave Length Contrast Sensor
Technical Specifications of Sick 470 nm, 525 nm, 625 nm Wave Length Contrast Sensor KTX-WBN1141252ZZZZ 1220055:
| Spec | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | ≤ 13 mm |
| Switching output | Push-pull: PNP/NPN |
| Connection type | Male connector M12, 5-pin |
Sick 470 nm, 525 nm, 625 nm Wave Length Contrast Sensor KTX-WBN1141252ZZZZ, 1220055 Technical Specifications:
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 5 mm |
| Housing design | Large |
| Light source | LED, RGB 1) |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC 1) |
| Response time | 42 µs 6) 7) |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | –20 °C ... +60 °C |
IndMALL Offers Sick 470 nm, 525 nm, 625 nm Wave Length Contrast Sensor KTX-WBN1141252ZZZZ part no: 1220055 at the lowest pricing. Technical Specs Summary of KTX-WBN1141252ZZZZ, 1220055 includes Compact sensor measures 30 mm x 53 mm x 78.5 mm and has a sensing distance of ≤ 13 mm ± 5 mm tolerance. It uses LED RGB technology with wavelengths of 470 nm, 525 nm, 625 nm, and features a beam spot size of 0.9 mm x 3.8 mm. The sensor operates on 42 µs 6) 7) power supply and includes a teach-in button for easy setup. With a fast response time of Push-pull: PNP/NPN and - output. The device has an Male connector M12, 5-pin ratings, operates in temperatures from –20 °C ... +60 °C. Now's the Time to Secure a Quote for your requirement of Sick 470 nm, 525 nm, 625 nm Wave Length Contrast Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
