Sick Magnetic Sensor: Magnetic Field Sensors
At IndMALL Automation, we specialize in providing a wide array of Sick Magnetic Sensor, tailored to meet various industrial needs. If you’re looking for reliable Sick magnetic proximity sensors, you’ve come to the right place. Our selection includes sensors with long sensing ranges, capable of reliably detecting magnetic objects in diverse environments.
Our Sick magnetic sensors are designed for precision and durability, ensuring optimal performance in your applications. We take pride in offering these high-quality sensors at prices that are competitive with, and often better than, those of authorized Sick sensors dealers or distributors. Whether you need sensors for specific proximity detection or general magnetic sensing, our range at IndMALL Automation has you covered.

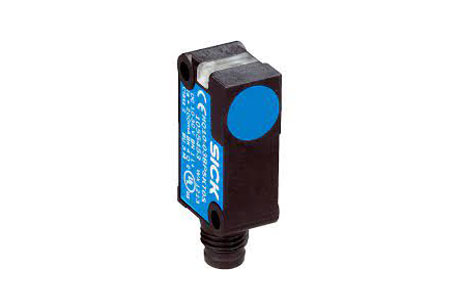

Sick Magnetic Sensor: MQB
- Housing Type: Rectangular, compact plastic housing measuring 10 mm x 28 mm x 16 mm.
- Sensing Ranges: Up to 60 mm; Electrical Configuration: DC, 3-wire.
- Enclosure Rating: IP67, ensuring robustness in harsh environments.
- Temperature Range: Operable from –25 °C to +75 °C.
- Housing Material: Tough VISTAL™.

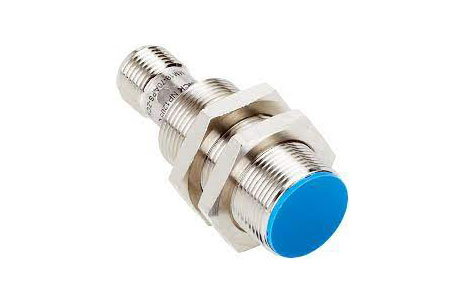

Sick Magnetic Sensors: MME
- Housing Sizes: Available in common M8, M12, and M18 cylindrical housings.
- Sensing Range: Up to 120 mm; Electrical Configuration: DC 3-wire.
- Enclosure Rating: IP67, ensuring robustness in harsh environments.
- Temperature Range: Operable from –25 °C to +75 °C.
- Housing Material: Nickel-plated brass with a plastic sensing face.
Magnetic Proximity Sensor: MMN
- Types Available: M12 to M18 cylindrical housing designs.
- Sensing Range: Up to 120 mm; Electrical Configuration: NAMUR type for use in hazardous areas.
- Enclosure Rating: IP67, ensuring robustness in harsh environments.
- Temperature Range: Operable from –25 °C to +70 °C.
- Housing Material: Nickel-plated brass with a plastic sensing face.

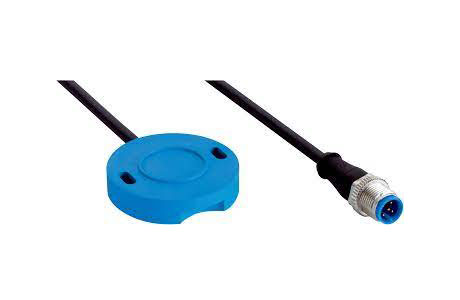

Sick Magnetic Proximity Sensor: MAS
- Angle Measuring Range: 0° to 360°.
- Resolution: 12-bit (corresponds to 0.09°).
- Definable Angle Windows: Up to 32-angle windows can be defined.
- Enclosure Rating: IP67, IP68; Operating Temperature: –40 °C to +80 °C.
- Connectivity: IO-Link 1.1 and up to 3 digital outputs.

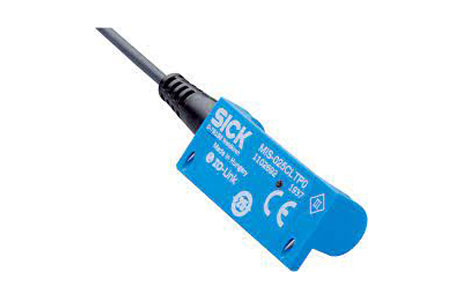

Sick Magnetic Proximity Sensors: MIS
- Scanning Range: 0 mm to 3 mm, distance between sensor and tag.
- Number of Different Magnetic-Coded Tags: Can differentiate 15 magnetic-coded tags.
- IO-Link: Available for communication.
- Analog Output: Includes both current (4 mA to 20 mA) and voltage (0 V DC to 10 V DC) outputs.
- Mounting: Simple mounting with optional mounting support.
Frequently Asked Questions
What does a Magnetic Field Sensor Detect?
A magnetic field sensor detects changes in magnetic fields, typically generated by magnetic materials or electrical currents. It senses the presence, strength, and direction of magnetic fields. These sensors are widely used in industrial applications for position sensing, speed detection, and proximity switching, providing accurate and reliable measurements.
What is the Working Principle of the Magnetic Sensor?
The working principle of a magnetic sensor involves detecting magnetic field changes caused by ferromagnetic objects. These sensors use the Hall effect or inductive principles to sense the presence and movement of metal parts. This allows for precise position, speed, and distance measurements, crucial in automated machinery and conveyor systems.
What does a Magnetic Field Sensor Detect?
A magnetic field sensor detects the presence and changes in magnetic fields around machinery and equipment. It senses the position, movement, and alignment of ferromagnetic objects, crucial for precise control in automated processes. These sensors are key in ensuring accuracy and efficiency in production lines and robotic systems.
Which Sensor can Detect the Proximity of a Magnetic Object?
A magnetic proximity sensor is used to detect the proximity of magnetic objects. It operates by sensing the magnetic field changes when a ferromagnetic object is near. These sensors are essential for position sensing, ensuring precise alignment and movement control in automated machinery and conveyor systems.
If you require Sick Magnetic Sensor get a Call: at +91 79955 44066
