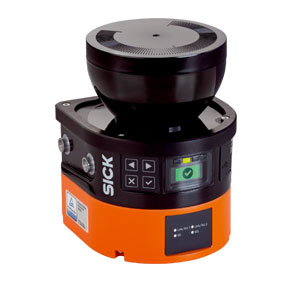

MICS3-AAUZ40AZ1P01: 1094452 - Sick OutdoorScan3 Core Safety Laser Scanner
Technical Specifications of Sick OutdoorScan3 Core Safety Laser Scanner MICS3-AAUZ40AZ1P01:
| Spec | Value |
|---|---|
| Protective field range | 4 m |
| Dimensions (W x H x D) | 114.6 mm x 135.1 mm x 114.6 mm |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Connection type | Male connector, M12, 8 pin, A-coded (common male connector for power supply and inputs and outputs) |
Sick OutdoorScan3 Core Safety Laser Scanner MICS3-AAUZ40AZ1P01, 1094452 Technical Specifications:
| Specification | Value |
|---|---|
| Sub product family | outdoorScan3 Core I/O |
| Application | Outdoor |
| Protective field range | 4 m |
| Warning field range | 40 m |
| Number of simultaneously monitored fields | ≤ 4 |
| Number of fields | 8 |
| Number of monitoring cases | 2 |
| Scanning angle | 275° |
| Angular resolution | 0.39° |
| Resolution (can be configured) | 50 mm, 70 mm |
| Response time | ≥ 90 ms |
| Protective field supplement | 65 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | In each OSSD pair, at least one OSSD is in the OFF state. |
| Connection type | Male connector, M12, 8 pin, A-coded (common male connector for power supply and inputs and outputs) |
| Universal I/Os | 3 |
| Outputs/OSSD pairs | 1 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, Mini-USB, Ethernet |
| Display elements | Graphic color display, LEDs |
| Protection class | III (EN 61140) |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption typical | 7 W (without output load) |
| Dimensions (W x H x D) | 114.6 mm x 135.1 mm x 114.6 mm |
| Weight | 1.15 kg |
| Housing material | Aluminum |
| Housing color | RAL 2004 (pure orange), RAL 9005 (black) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (IEC 60529) |
| Ambient operating temperature | –25 °C ... +50 °C |
| Type of light | Pulsed laser diode |
| Wave length | 845 nm |
Please speak to our Technical Engineer for Sick OutdoorScan3 Core Safety Laser Scanner MICS3-AAUZ40AZ1P01 part no: 1094452 at attractive prices. Technical Specs Summary of MICS3-AAUZ40AZ1P01, 1094452 features outdoorScan3 Core I/O Laser Safety Scanner is designed for Outdoor applications, offering a protective field range of 4 m and a warning field range of 40 m. It can monitor ≤ 4 fields simultaneously, with 8 configurable fields and 2 monitoring cases. The scanner features a 275° scanning angle and an angular resolution of 0.39°. It supports configurable resolutions of 50 mm, 70 mm and a response time of ≥ 90 ms. Classified as Type 3 (IEC 61496) with SIL 2 (IEC 61508) and Category 3 (EN ISO 13849), achieving a PL d (EN ISO 13849) performance level and a mission time of 20 years (EN ISO 13849), and connection type Male connector, M12, 8 pin, A-coded (common male connector for power supply and inputs and outputs) Configuration is done PC with Safety Designer (Configuration and Diagnostic Software) using a USB 2.0, Mini-USB, Ethernet interface. It features a Graphic color display, LEDs, operates at 24 V DC (16.8 V DC ... 30 V DC), and consumes 7 W (without output load). Dimensions are 114.6 mm x 135.1 mm x 114.6 mm, and the housing is Aluminum with RAL 2004 (pure orange), RAL 9005 (black) colors, with a Polycarbonate optics cover having a Outside with scratch-resistant coating. It is rated IP65 (IEC 60529) and operates in temperatures from –25 °C ... +50 °C, type of light is a Pulsed laser diode at 845 nm wave length. Match Your Needs with a Quote for your requirement of Sick OutdoorScan3 Core Safety Laser Scanner. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
