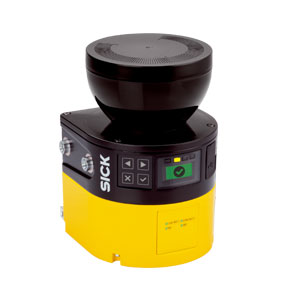

MICS3-CCAZ90AA1P01: 1110037 - Sick Rugged Safety Laser Scanner
Technical Specifications of Sick Rugged Safety Laser Scanner MICS3-CCAZ90AA1P01:
| Spec | Value |
|---|---|
| Protective field range | 9 m |
| Dimensions (W x H x D) | 112 mm x 163 mm x 111.1 mm |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Connection type | Voltage supply, 1 x male connector, M12, 4-pin, A-coded. Local inputs and outputs (I/O), 2 x female connector, M12, 17-pin, A-coded. Dynamic switching signals, 2 x female connector, M12, 8-pin, A-coded. Fieldbus, industrial network, 2 x M12 female connectors, 4-pin, D-coded. |
Sick Rugged Safety Laser Scanner MICS3-CCAZ90AA1P01, 1110037 Technical Specifications:
| Specification | Value |
|---|---|
| Sub product family | microScan3 Core I/O |
| Application | Indoor |
| Protective field range | 9 m |
| Warning field range | 64 m |
| Number of simultaneously monitored fields | ≤ 4 |
| Number of fields | 128 |
| Number of monitoring cases | 128 |
| Scanning angle | 275° |
| Angular resolution | 0.1° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 150 mm, 200 mm |
| Response time | ≥ 90 ms |
| Protective field supplement | 100 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state, The safety outputs via the network are logic 0. |
| Connection type | Voltage supply, 1 x male connector, M12, 4-pin, A-coded. Local inputs and outputs (I/O), 2 x female connector, M12, 17-pin, A-coded. Dynamic switching signals, 2 x female connector, M12, 8-pin, A-coded. Fieldbus, industrial network, 2 x M12 female connectors, 4-pin, D-coded. |
| Universal I/Os | ≤ 16/4 |
| Outputs/OSSD pairs | 4 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, Mini-USB, Ethernet |
| Display elements | Graphic color display, LEDs |
| Protection class | III (EN 61140) |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption typical | 8.1 W (without output load) |
| Dimensions (W x H x D) | 112 mm x 163 mm x 111.1 mm |
| Weight | 1.6 kg |
| Housing material | Aluminum |
| Housing color | RAL 1021 (yellow), RAL 9005 (black) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (IEC 60529) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Type of light | Pulsed laser diode |
| Wave length | 845 nm |
Ask for the Pricing of Sick Rugged Safety Laser Scanner MICS3-CCAZ90AA1P01 part no: 1110037 at unbeatable prices. Detailed Specifications of MICS3-CCAZ90AA1P01, 1110037 features microScan3 Core I/O Laser Safety Scanner is designed for Indoor applications, offering a protective field range of 9 m and a warning field range of 64 m. It can monitor ≤ 4 fields simultaneously, with 128 configurable fields and 128 monitoring cases. The scanner features a 275° scanning angle and an angular resolution of 0.1°. It supports configurable resolutions of 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 150 mm, 200 mm and a response time of ≥ 90 ms. Classified as Type 3 (IEC 61496) with SIL 2 (IEC 61508) and Category 3 (EN ISO 13849), achieving a PL d (EN ISO 13849) performance level and a mission time of 20 years (EN ISO 13849), and connection type Voltage supply, 1 x male connector, M12, 4-pin, A-coded. Local inputs and outputs (I/O), 2 x female connector, M12, 17-pin, A-coded. Dynamic switching signals, 2 x female connector, M12, 8-pin, A-coded. Fieldbus, industrial network, 2 x M12 female connectors, 4-pin, D-coded. Configuration is done PC with Safety Designer (Configuration and Diagnostic Software) using a USB 2.0, Mini-USB, Ethernet interface. It features a Graphic color display, LEDs, operates at 24 V DC (16.8 V DC ... 30 V DC), and consumes 8.1 W (without output load). Dimensions are 112 mm x 163 mm x 111.1 mm, and the housing is Aluminum with RAL 1021 (yellow), RAL 9005 (black) colors, with a Polycarbonate optics cover having a Outside with scratch-resistant coating. It is rated IP65 (IEC 60529) and operates in temperatures from –10 °C ... +50 °C, type of light is a Pulsed laser diode at 845 nm wave length. Now's the Time to Secure a Quote for your requirement of Sick Rugged Safety Laser Scanner. We're committed to offering more favorable pricing and more responsive support than other Traders.
