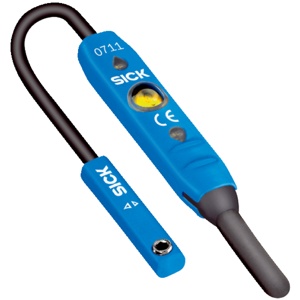

MZ2Q-CSSPSKR0S01: Dual Position Detection Sensors for Pneumatic Applications
Technical Specifications of Dual Position Detection Sensors for Pneumatic Applications MZ2Q-CSSPSKR0S01:
Spec | Value |
---|---|
Housing length | 19.5 mm |
Switching output | 2 x PNP |
Output function | NO |
Connection type | Cable with connector M8, 4-pin, with knurled nuts, 0.5 m |
Dual Position Detection Sensors for Pneumatic Applications MZ2Q-CSSPSKR0S01 Technical Specifications:
Specification | Value |
---|---|
Cylinder type | C-slot |
Preferred manufacturer slot | SMCBimbaSchunk |
Detection zone | 0 mm ... 50 mm; 0 mm ... 50 mm |
Cylinder types with adapter | SMC rail ECDQ2SMC rail CDQ2 |
Housing length | 19.5 mm |
Switching output | 2 x PNP |
Output function | NO |
Electrical wiring | DC 4-wire |
Enclosure rating | IP67 |
Teach-in control panel | Teaching in switching points 1 and 2 |
Supply voltage | 12 V DC ... 30 V DC |
Power consumption | Typ. 20 mA, without load |
Voltage drop | ≤ 2.2 V |
Continuous current Ia | ≤ 100 mA |
Protection class | III |
Hysteresis, typ. | 1 mT |
Reproducibility | ≤ 0.1 mT |
Ambient operating temperature | –20 °C ... +75 °C |
Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
EMC | According to EN 60947-5-2 |
Connection type | Cable with connector M8, 4-pin, with knurled nuts, 0.5 m |
Cable diameter | Ø 2.6 mm |
Bending radius | With fixed installation > 5 x cable diameter |
Cable outlet | Axial |
MaterialHousingPlasticCablePUR | Material |
Housing | Plastic |
Cable | PUR |
IndMALL Automation Dealing offers Dual Position Detection Sensors for Pneumatic Applications MZ2Q-CSSPSKR0S01 at unbeatable prices. The Main Technical Parameters of MZ2Q-CSSPSKR0S01 are housing length of 19.5 mm and 2 x PNP switching outputs. This sensor is designed with a NO output function, operating on DC 4-wire electrical wiring system. Rated IP67 , it ensures excellent protection against dust and water in challenging industrial environments. The supply voltage ranges from 12 V DC ... 30 V DC, with a power consumption of Typ. 20 mA, without load. The voltage drop is ≤ 2.2 V and the continuous current (Ia) is ≤ 100 mA, ensuring efficient and reliable performance. The connection type is a Cable with connector M8, 4-pin, with knurled nuts, 0.5 m, providing flexibility in installation. The housing is constructed from durable Plastic, while the cable material is made of long-lasting PUR. Take the First Step with a Quote for your requirement of Dual Position Detection Sensors for Pneumatic Applications. Choose us for unparalleled pricing and support over other Dealers & Distributors.
