Sick Pressure Sensor: Transmitters, Switches, & Transducers

Sick Pressure Sensors

IndMALL Automation offers a diverse selection of Sick Pressure Sensor, transmitters, and switches, ideal for various industrial needs. Our products, including the versatile Sick PBS Pressure Switch and the robust Sick PBT Pressure Transmitter, cater to both liquid and gaseous mediums with high precision.

The Sick Pressure Switch LFH is perfect for fluid mediums with low gauge pressure, while the Sick Pressure Transducer PET and Transmitter PFT provide accurate measurements with multiple output options. For hygienic applications, the Sick Pressure Gauge PBS Hygienic is an excellent choice. Our prices are better than Authorized Sick Pressure Sensors or Sick Pressure Switch.

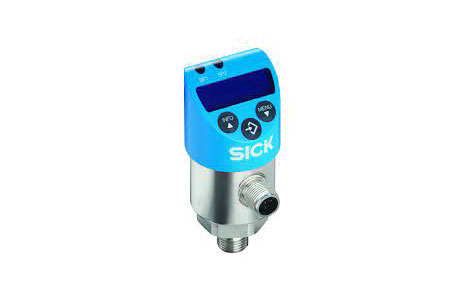

Sick Pressure Sensor

Sick Pressure Sensor: PBS

  • Medium Compatibility: Liquid and gaseous.
  • Measuring Ranges: Gauge Pressure: 0 to 600 bar; Absolute Pressure: 0 to 25 bar.; Compound Pressure: –1 to +24 bar.; Pressure Units: Bar, MPa, psi, kg/cm².
  • Process Temperature Range: –20 °C to +85 °C.
  • Outputs: Analog Signal: 4 mA to 20 mA, 0 V to 10 V; Switching Output: Transistor (PNP or NPN), adjustable.
  • Display: 14-segment LED, blue, 4 digits, rotatable.
  • Response Time: 3 ms; ambient temperatures of –20 °C to +80 °C.

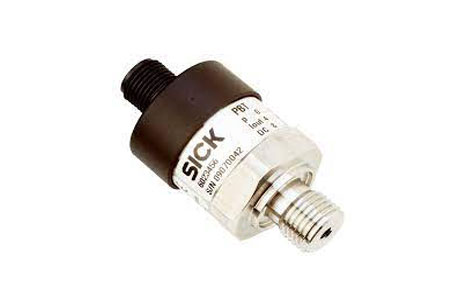

Sick PBT Pressure Transmitter

Sick PBT Pressure Transmitter: PBT

  • Purpose: Universal electronic pressure transmitter for liquids and gases.
  • Measurement Range: 0 bar to 600 bar.
  • Key Features: Various measuring ranges (relative, absolute, ±), multiple process connections, no mechanical moving parts, stainless steel membrane, output signals (4 mA to 20 mA, 0 V to 5 V, 0 V to 10 V), and M12 x 1 electrical connection.
  • Benefits: Compact, easy installation, customizable configurations, robust design, and excellent value.

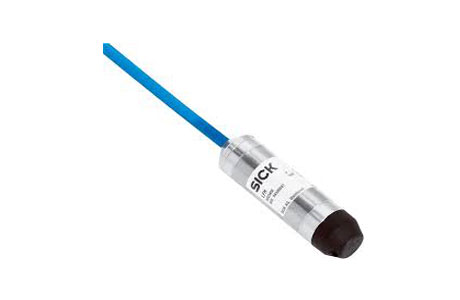

Sick Pressure Switch

Sick Pressure Switch: LFH

  • Medium: Fluids.
  • Pressure Range: 0 to 0.4 bar (gauge pressure).
  • Process Temperature: –10 °C to +50 °C.
  • Output Signal: 4 mA to 20 mA, 2-wire; Cable Length: 5 meters.
  • Housing Material: Stainless steel.
  • Supply Voltage: 10 V DC to 30 V DC.
  • Enclosure Rating: IP68; Accuracy: ≤ ± 0.5% of the span.

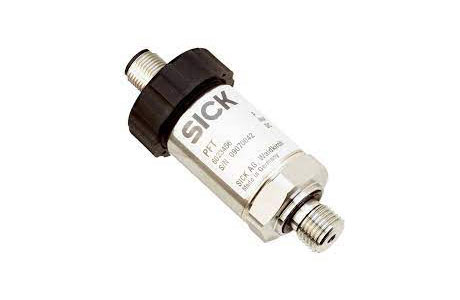

Sick Pressure Transmitter

Sick Pressure Transmitter: PFT

  • Measurement Range: 0…0.1 bar to 600 bar, including absolute and compound ranges.
  • Accuracy: ≤± 0.5% of the span (optionally ≤± 0.25%).
  • Temperature Range: Up to 150°C for extended range version.
  • Membrane: Circularly welded stainless steel, corrosion-resistant.
  • Output Signals: 4…20mA, 0…10V, or 0…5V.
  • Electrical Connection: M12x1 connectors, L-connectors, and cable outlets.

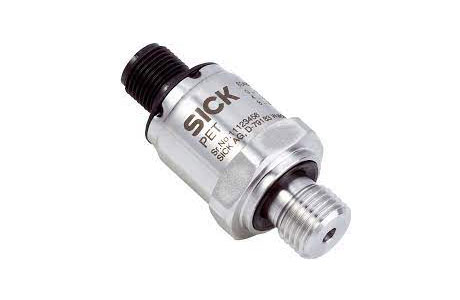

Sick Pressure Transducer

Sick Pressure Transducer: PET

  • Medium Compatibility: Liquid and gaseous.
  • Pressure Range: 0 to 600 bar (gauge and compound pressure).
  • Process Temperature: –30 °C to +100 °C.
  • Output Signals: Options include 4 mA to 20 mA, 0 V to 10 V.
  • Accuracy: ≤ ± 1.2% of span; Response Time: < 2 ms.
  • Housing: Stainless steel 316L, PBT GF30.
  • Enclosure Rating: IP 67 (round connector), IP 65 (L-connector).

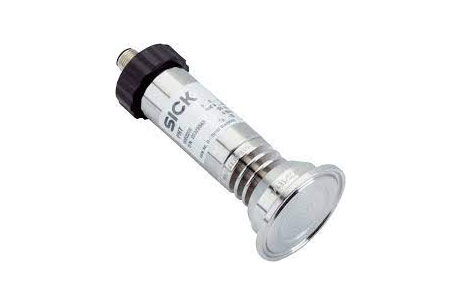

Sick Pressure Measurement Sensor

Sick Pressure Measurement Sensor: PHT

  • Medium: Liquid and gaseous.
  • Pressure Range: 0 to 1 bar (gauge pressure).
  • Temperature Range: –20 °C to +150 °C.
  • Output: 4 mA to 20 mA, 2-wire; options for 0 V to 10 V, 0 V to 5 V, 3-wire.
  • Connection: Tri-Clamp 1 ½”.
  • Material: Stainless steel; Response Time: ≤ 10 ms.
  • Supply Voltage: 10 V DC to 30 V DC; Rating: IP67; Accuracy: ≤ ± 0.5%.

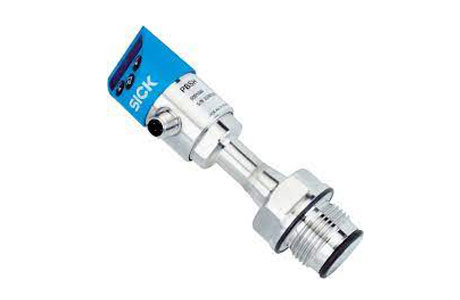

Sick Pressure Guage

Sick Pressure Guage: PBS Hygienic

  • Medium: Suitable for liquid and gaseous substances.
  • Pressure Type: Gauge pressure.
  • Measuring Range: 0 bar to 1 bar.
  • Process Temperature: –20 °C to +100 °C (up to +135 °C for max. 1 hour).
  • Output Signal: 1 x PNP + 4 mA to 20 mA.
  • Display: 14-segment LED, blue, 4 digits, height 9 mm, electronically turnable by 180°.
  • Supply Voltage: 15 V DC to 35 V DC; Power Consumption: Max. 70 mA.

Product List:

Model No Image Measuring Range Response Time Supply Voltage Output Signal Connection Type

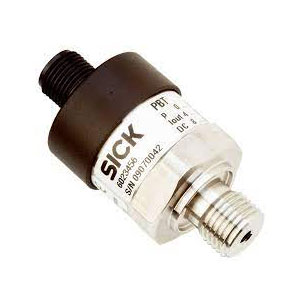

PBT-RB250SG1SSNVMC0Z PBT-RB250SG1SSNVMC0Z 0 bar … 250 bar < 4 ms 14 V DC … 30 V DC 0 V … 10 V, 3-wire M12 round connector x 1, 4-pin

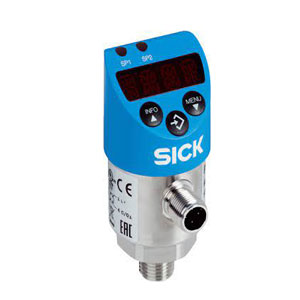

PBS2-RB010SG1SSDNMA0Z PBS2-RB010SG1SSDNMA0Z 0 bar … 10 bar 0 psi … 145 psi ≤ 5 ms 15 V DC … 35 V DC IO-Link/PNP/NPN + 4 mA … 20 mA / 0 V … 10 V M12 round connector x 1, 4-pin

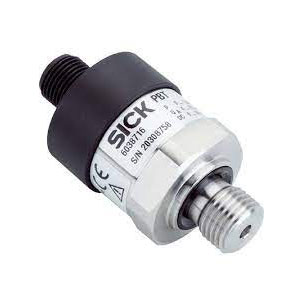

PBT-RB1X0SG1SSNAMA0Z PBT-RB1X0SG1SSNAMA0Z 0 bar … 1 bar < 4 ms 8 V DC … 30 V DC 4 mA … 20 mA, 2-wire M12 round connector x 1, 4-pin

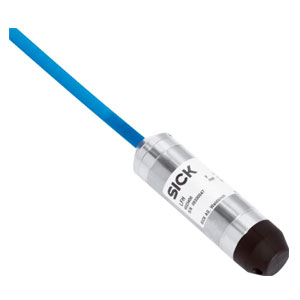

LFH-SBX60G1AS80SZ0 LFH-SBX60G1AS80SZ0 0 bar … 0.6 bar — 10 V DC … 30 V DC 4 mA … 20 mA, 2-wire PUR cable

Frequently Asked Questions

What is a Pressure Sensor Used for?

A pressure sensor is used to measure the pressure of gases or liquids. It converts the physical pressure into an electrical signal. These sensors are essential in various industries for monitoring and controlling systems. They ensure safety, efficiency, and optimal performance in applications like HVAC systems, automotive engines, and medical equipment.

What are the Four Types of Pressure Sensors?

The four main types of pressure sensors are:

Absolute Pressure Sensors, measuring pressure relative to a perfect vacuum.
Gauge Pressure Sensors, comparing pressure to atmospheric pressure.
Differential Pressure Sensors, measuring the difference between two pressure points.
Sealed Pressure Sensors, comparing pressure to a sealed reference pressure.

What is the Output of a Pressure Sensor?

The output of a pressure sensor is typically an electrical signal that corresponds to the measured pressure. This signal can be analog, like a varying voltage or current, or digital, providing discrete numerical values. The output is used to monitor and control pressure in systems, ensuring accurate and reliable pressure readings for various applications.

Which Sensor is used for Pressure Sensor?

Pressure sensors come in seven main types, each suited for specific applications:

  • Aneroid Barometer Pressure Sensors, used for measuring atmospheric pressure.
  • Manometer Pressure Sensors, ideal for measuring fluid pressure using a column of liquid.
  • Bourdon Tube Pressure Sensors, commonly used for mechanical pressure measurement.
  • Vacuum (Pirani) Pressure Sensors, designed for measuring low pressures in vacuum systems.
  • Sealed Pressure Sensors, comparing pressure against a sealed reference chamber.
  • Piezoelectric Pressure Sensors, detecting pressure changes through voltage generation.
  • Strain Gauge Pressure Sensors, measuring pressure by detecting changes in electrical resistance.
