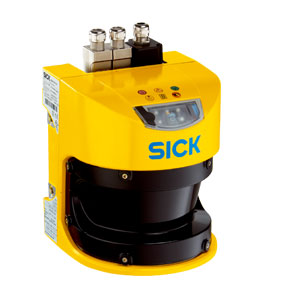

S30A-4111CP: 1045650 - Sick 4m Range Safety Laser Scanner
Technical Specifications of Sick 4m Range Safety Laser Scanner S30A-4111CP:
| Spec | Value |
|---|---|
| Protective field range | 4 m |
| Dimensions (W x H x D) | 155 mm x 185 mm x 160 mm |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 28.8 V DC) |
| Connection type | Bus connection, Copper conductor (2 female connectors for RJ-45 push-pull plug). Supply connection, System plug with or without connecting cable |
Sick 4m Range Safety Laser Scanner S30A-4111CP, 1045650 Technical Specifications:
| Specification | Value |
|---|---|
| Sub product family | - |
| Application | Indoor |
| Protective field range | 4 m |
| Warning field range | 49 m (20 m at 20 % reflectivity) |
| Number of simultaneously monitored fields | 2 |
| Number of fields | 8 |
| Number of monitoring cases | 4 |
| Scanning angle | 190° |
| Angular resolution | 0.5°, 0.25°, depending on range and resolution |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm, 150 mm |
| Response time | 60 ms |
| Protective field supplement | 100 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
| Connection type | Bus connection, Copper conductor (2 female connectors for RJ-45 push-pull plug). Supply connection, System plug with or without connecting cable |
| Universal I/Os | - |
| Outputs/OSSD pairs | - |
| Configuration method | - |
| Configuration and diagnostics interface | RS-232 |
| Display elements | - |
| Protection class | III (VDE 0106, EN 60950) |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 28.8 V DC) |
| Power consumption typical | ≤ 0.8 A |
| Dimensions (W x H x D) | 155 mm x 185 mm x 160 mm |
| Weight | 3.3 kg |
| Housing material | Aluminum die cast |
| Housing color | RAL 1021 (yellow) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (EN 60529) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Type of light | Pulsed laser diode |
| Wave length | 905 nm |
Talk to Our Engineer for Sick 4m Range Safety Laser Scanner S30A-4111CP part no: 1045650 with exclusive offers. Core System Specifications of S30A-4111CP, 1045650 are Laser Safety Scanner is designed for Indoor applications, offering a protective field range of 4 m and a warning field range of 49 m (20 m at 20 % reflectivity). It can monitor 2 fields simultaneously, with 8 configurable fields and 4 monitoring cases. The scanner features a 190° scanning angle and an angular resolution of 0.5°, 0.25°, depending on range and resolution. It supports configurable resolutions of 30 mm, 40 mm, 50 mm, 70 mm, 150 mm and a response time of 60 ms. Classified as Type 3 (IEC 61496) with SIL 2 (IEC 61508) and Category 3 (EN ISO 13849), achieving a PL d (EN ISO 13849) performance level and a mission time of 20 years (EN ISO 13849), and connection type Bus connection, Copper conductor (2 female connectors for RJ-45 push-pull plug). Supply connection, System plug with or without connecting cable using a RS-232 interface. It features a operates at 24 V DC (16.8 V DC ... 28.8 V DC), and consumes ≤ 0.8 A. Dimensions are 155 mm x 185 mm x 160 mm, and the housing is Aluminum die cast with RAL 1021 (yellow) colors, with a Polycarbonate optics cover having a Outside with scratch-resistant coating. It is rated IP65 (EN 60529) and operates in temperatures from –10 °C ... +50 °C, type of light is a Pulsed laser diode at 905 nm wave length. Don't Miss Out on a Quote for your requirement of Sick 4m Range Safety Laser Scanner. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
