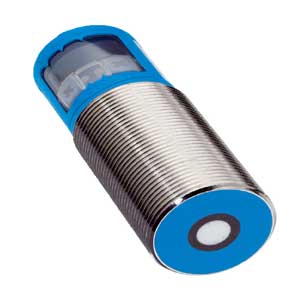

UM30-213111: 6037537 - Sick 200 mm PNP Ultrasonic Sensor

SpecValue
DesignCylindrical
Supply Voltage VsDC 9 V ... 30 V
Power Consumption≤ 2.4 W
Connection TypeMale connector, M12, 5-pin

Sick 200 mm PNP Ultrasonic Sensor UM30-213111, 6037537 Technical Specifications:

SpecificationValue
DesignCylindrical
Supply voltage VsDC 9 V ... 30 V
Power consumption≤ 2.4 W
Initialization time< 300 ms
Housing materialMetal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Connection typeMale connector, M12, 5-pin
IndicationLED display, 2 x LED
Sending axisStraight
Dimensions (W x H x D)30 mm x 30 mm x 84 mm
Enclosure ratingIP65 / IP67
Weight150 g
Send Your Inquiry for Sick 200 mm PNP Ultrasonic Sensor UM30-213111 part no: 6037537 at unbeatable prices. The Main Technical Parameters of UM30-213111, 6037537 feature Cylindrical , DC 9 V ... 30 V supply voltage,≤ 2.4 Wpower consumption, < 300 ms Initialization time, Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin), Male connector, M12, 5-pin , LED display, 2 x LED Indication, Straight, 30 mm x 30 mm x 84 mm dimensions. Don't Miss Out on a Quote for your requirement of Sick 200 mm PNP Ultrasonic Sensor. Experience the difference with our competitive pricing and superior support over other Traders.
