Siemens HMI: Simantic HMI Touch Panel

Siemens HMI basic panels offer basic functions for simple human to machine interfacing applications and much more than powerful hardware for controlling machines and plants of all kinds. SIMATIC HMI comfort panels or Basic Panels are Cost-effective operation and monitoring in the 2nd Generation With their sophisticated HMI basic functions,

Are you searching for Siemens Human Machine Interface? IndMALL offers Siemens HMI, including Simatic HMI KTP400, Simatic HMI KPT700, Simatic HMI KPT900, Simatic HMI KTP1200, Simatic HMI ktp700 basic, Simatic TP700, and more.

Siemens HMI: KTP400 Series

Display: 4.3 inch TFT, 64K colors, 480 x 272 px resolution.
Control: Touch screen and 4 function keys.
Memory: 10 MB user memory.
Interfaces: PROFINET RJ 45 Ethernet, USB host.
Dimensions: Installation cutout 123 x 99 mm, front panel 141 x 116 mm, depth 43 mm.
Software: WinCC Basic (TIA Portal) V13+.
Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, 50 recipes, archiving.

Siemens Touch Panel: KTP700 Series

Display: 7 inch TFT, 64K colors, 800 x 480 px.
Control: Touch screen, 8 function keys.
Memory: 10 MB user memory.
Interfaces: Ethernet for PROFINET (KTP700 Basic) or RS 485 for PROFIBUS/MPI (KTP700 Basic DP), plus USB host.
Dimensions: Cutout 197 x 141 mm, front panel 214 x 158 mm, depth 46 mm.
Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, 50 recipes, archiving.

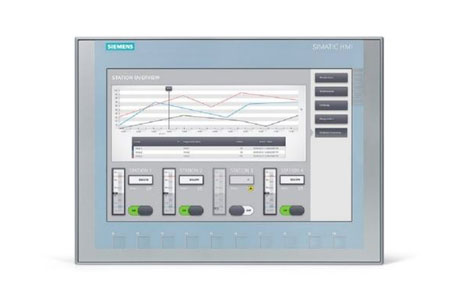

Siemens Simatic HMI: KTP900 Series

Display: 9 inch TFT, 64K colors, 800 x 480 px resolution.
Control: Touch screen and 8 function keys.
Memory: 10 MB user memory.
Interfaces: 1 x RJ 45 Ethernet for PROFINET, 1 x USB host.
Protection: IP 65/NEMA 4x front, IP 20 rear.
Dimensions: Installation cutout 251 x 166 mm, front panel 267 x 182 mm, depth 47 mm.
Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, curve diagrams (f(t)), 50 recipes, archiving.

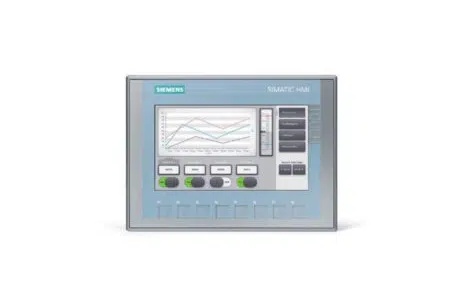

Siemens Touch Screen: KTP1200 Series

Display: 12 inch TFT, 64K colors, 1280 x 800 px.
Control: Touch screen, 10 function keys.
Memory: 10 MB user memory.
Interfaces: Ethernet for PROFINET (KTP1200 Basic) or RS 485 for PROFIBUS/MPI (KTP1200 Basic DP), plus USB host.
Dimensions: Cutout 310 x 221 mm, front panel 330 x 245 mm, depth 62 mm.
Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, 50 recipes, archiving.

Siemens Comfort Panels: TP1200 Series

Type: Comfort Panel, touch operation, support arm.
Display: 12″ widescreen TFT, 16 million colors.
Interfaces: PROFINET, MPI/PROFIBUS DP.
Memory: 12 MB configuration memory.
Operating System: WEC 2013.
Configuration: WinCC Comfort V14 SP1 with HSP.
Dimensions: 30.40 x 46.70 x 20.00 cm.

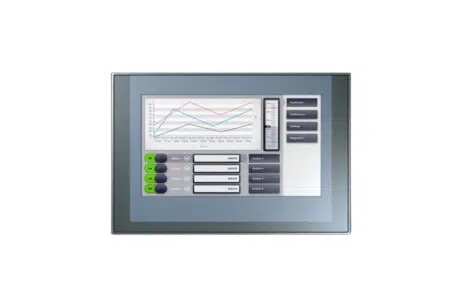

Siemens HMI TP900

Type: Comfort Panel, touch operation.
Display: 9″ widescreen TFT, 16 million colors.
Interfaces: PROFINET, MPI/PROFIBUS DP.
Memory: 12 MB configuration memory.
Configuration: Configurable from WinCC Comfort V11.
Product Family: Comfort Panels standard devices.
Dimensions: 36.00 x 50.90 x 12.30 cm.

Siemens Simatic Panel: TP700 Comfort

Type: Comfort Panel, touch operation.
Display: 7″ widescreen TFT, 16 million colors.
Interfaces: PROFINET, MPI/PROFIBUS DP.
Memory: 12 MB configuration memory.
Configuration: Configurable from WinCC Comfort V11.
Dimensions: 19.70 x 26.60 x 11.80 cm.

IndMALL Automation offers a wide range of Siemens HMI products designed to cater to various industrial applications. Our Siemens Simatic HMI series is known for its reliability, intuitive operation, and advanced features. Popular models like the Siemens HMI KTP700 and Siemens TP900 provide seamless control and monitoring with user-friendly interfaces. These Siemens HMI panels come in various HMI sizes, including compact 7-inch HMI displays and larger 10-inch HMI panels, ensuring flexibility for diverse industrial needs.

The Siemens HMI 7-inch models strike the perfect balance between functionality and compact design, making them ideal for a wide range of applications. For those requiring larger interfaces, the Siemens HMI 10-inch panels offer expansive displays for enhanced visibility. The Siemens HMI price, including options from the Siemens HMI catalog, is competitive, delivering excellent value for high-quality products.

Whether you need a basic HMI or an advanced Siemens comfort panel, our Simatic HMI panels are tailored to meet your specific requirements. We also provide access to Siemens HMI software for easy configuration and operation. Choose IndMALL Automation for high-performance Siemens HMI touch panels, including the Siemens Simatic touch panel and models like the KTP700 Comfort. Our solutions ensure reliability, durability, and cost-effectiveness, with transparent pricing like the Siemens HMI 7-inch price and Siemens HMI 10-inch price to suit all budgets.

Product List:

Model No	Design of Display	Display Width	Display Height	Active power input, typ.	Power Supply(V)

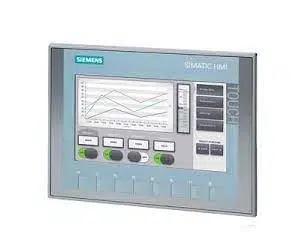

6AG1123-2GB03-2AX0	TFT widescreen display, LED backlighting	154.1 mm	85.9 mm	5.5 W	24VDC

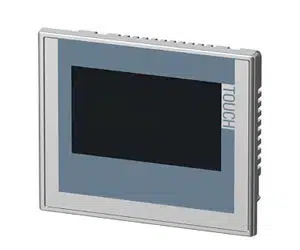

6AV2143-6DB00-0AA0	TFT widescreen display, LED backlighting	95 mm	53.9 mm	–	24 VDC

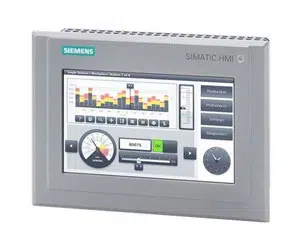

6AV2124-0GC13-0AX0	TFT, bonded, daylight-readable	152.4 mm	91.4 mm	17 W	24 VDC

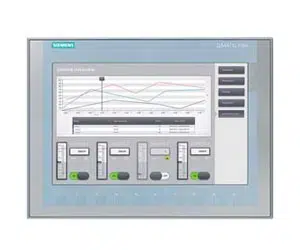

6AV2123-2MB03-0AX0	TFT widescreen display, LED backlighting	261.1 mm	163.2 mm	12.2 W	24 VDC
6AV2124-0MC01-0AX0	TFT	261.1 mm	163.2 mm	20 W	24 VDC

Frequently Asked Questions

What is Siemens HMI?

Siemens HMI (Human Machine Interface) is a user interface for industrial control systems. It allows operators to interact with machinery and processes.

Siemens offers various HMI models, like touch panels and key panels, for efficient monitoring and control. These interfaces are integral in automation, enhancing user experience and operational efficiency in industrial settings.

What is the Difference Between Siemens KTP and TP?

The difference between Siemens KTP and TP HMI panels lies in their functionality and design:

KTP (Key and Touch Panel) combines touchscreens with physical keys for input.
TP (Touch Panel) offers full touchscreen interfaces without physical keys.
KTP is ideal for applications requiring both touch and tactile feedback.
TP is suited for more intuitive, touch-only user interactions.

Which Software is Used for Siemens HMI?

Siemens HMI programming and configuration are primarily done using TIA Portal (Totally Integrated Automation Portal). This software integrates functions for engineering Siemens automation devices, including HMI.

TIA Portal offers a unified environment for programming Siemens SIMATIC HMI panels, streamlining the development process with intuitive tools and features.

What Size is Siemens HMI?

Siemens HMI panels come in various sizes to fit different applications. The sizes range from small 4-inch displays to large 22-inch screens.

Common sizes include 7-inch, 9-inch, 12-inch, and 15-inch models. Each size is designed to offer optimal visibility and user interaction for specific industrial control and monitoring tasks.

What is Siemens Simatic HMI?

Siemens Simatic HMI refers to a range of user interface panels developed by Siemens for industrial applications. These Human-Machine Interface (HMI) panels enable operators to interact with and monitor automated processes.

They feature touch screens, graphical displays, and connectivity options, facilitating efficient control and visualization of machine operations in various industrial environments.
