Siemens VFD – SINAMICS AC & Frequency Drives
A Siemens VFD is an advanced Variable Frequency Drive solution developed under the SINAMICS drive portfolio by Siemens. Siemens Variable Frequency Drives are engineered for industrial motor control, torque optimization, and energy efficiency across manufacturing and process industries. The Siemens SINAMICS VFD range includes SINAMICS V20 for general applications and SINAMICS G120 for modular automation systems. These Siemens drives are designed to regulate motor speed, reduce energy consumption, and ensure stable torque performance under varying load conditions.
Widely used across India’s manufacturing, HVAC, water treatment, cement, textile, and process industries, Siemens VFD solutions provide precise motor control, energy efficiency, and long operational life. From compact drives for standalone motors to high-performance drives for heavy-duty industrial applications, the SINAMICS range supports modular expansion, integrated safety, and seamless automation system integration.
Across Indian manufacturing plants, infrastructure projects, utilities, and process industries, Siemens VFDs are applied in pumps, fans, conveyors, compressors, HVAC systems, and material handling equipment. Their ability to operate reliably under variable grid conditions, high ambient temperatures, and continuous duty cycles makes Siemens VFDs a foundational technology for efficient and stable motor-driven systems.

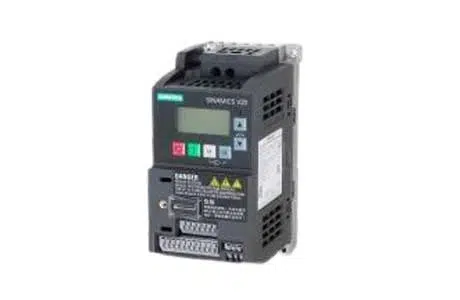

Siemens VFD – V20 Series
The SINAMICS V20 is a compact basic drive designed for simple speed control applications.
- Power Range: 0.12 kW to 30 kW.
- Installation: Easy options including push-through and wall mounting.
- Commissioning: User-friendly with mobile and local operator panels.
- Design: Robust with advanced cooling and coated electronics.
- Efficiency: ECO mode and integrated energy monitoring.
- Applications: Suitable for pumping, ventilating, compressing, and more.

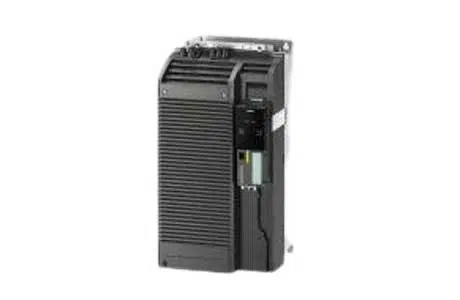

Siemens Drive – G120 Series
- Power Range: 0.55 kW to 250 kW.
- Voltage Variants: Available for 200 V, 400 V, and 690 V networks.
- Safety: Comprehensive machine safety package, commissioning with SINAMICS Startdrive.
- Versatility: Wide power range, suitable for diverse applications and industries.
- Configuration: Multiple component combination options, easy integration into existing systems.

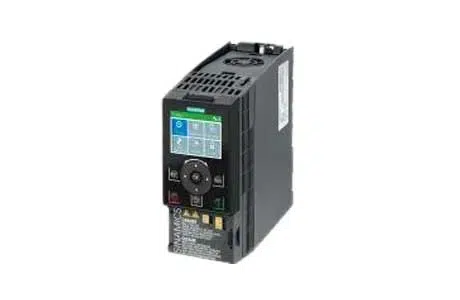

Siemens AC Drive – G120C Series
- Power Range: 0.55 to 132 kW.
- Control: Sensorless vector control for high torques at low frequencies.
- Safety: Integrated Safe Torque Off function.
- Connectivity: Supports PROFINET, EtherNet/IP, PROFIBUS, USS/Modbus RTU.
- Design: Compact with integrated input reactor and EMC filter.

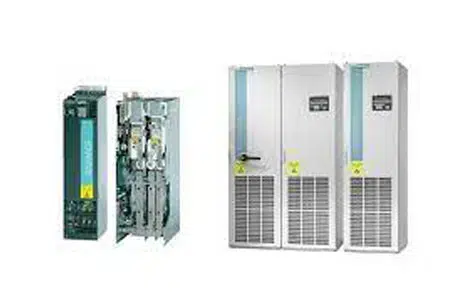

Siemens SINAMICS Drive – G130/G150 Series
- Voltage and Output Range:
- SINAMICS G130: 3 AC 380 to 690 V, 75 to 800 kW.
- SINAMICS G150: 3 AC 380 to 690 V, 110 to 2700 kW.
- Frequency: 47 to 63 Hz.
- Control Modes: Vector control with encoder or V/f control.

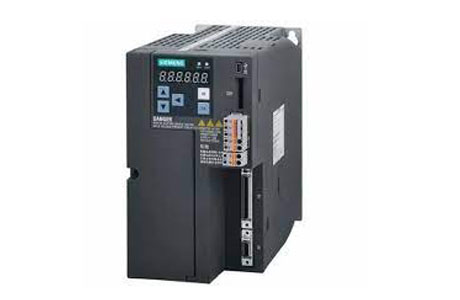

Siemens SINAMICS VFD – V90 Series
- Power Range: 0.05 to 7.0 kW.
- Integration: Compatible with PTI, PROFINET, USS, Modbus RTU.
- Control: One-button tuning, real-time auto-tuning.
- Performance: High encoder resolution, rapid acceleration and braking.
- Applications: Ideal for assembly machines, printing, packaging, and material handling.

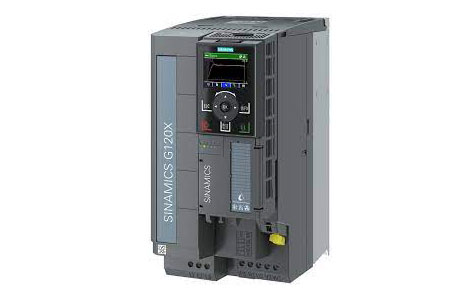

Siemens Drives – G120X Frequency Converter
- Optimized for: Pump and fan applications in water/wastewater and HVAC.
- Power Range: 0.75 kW to 630 kW.
- Safety: Integrated Safe Torque Off (STO) function, certified to SIL3.
- Design: Rugged, with optional protection against dripping water, suitable for harsh conditions.
- Connectivity: Ready for digitalization, with cloud connection options.

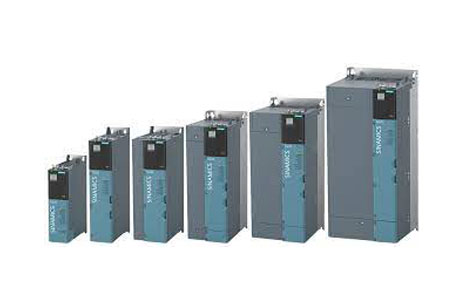

Siemens Variable Frequency Drive – SINAMICS G220
- Efficiency: Features Clean Power technology for low harmonics and enhanced motor control.
- Security: Includes Security Integrated functions and Safety Integrated up to SIL 3, PL e.
- Durability: S2 System redundancy, IP55 protection, and 3C3 coating for harsh environments.
- Future-Proof: Supports digital twin, cloud and edge monitoring, and diagnostics.
- Power Range: Available in a broad power range, suitable for various industrial applications.
Why Choose Siemens VFD for Industrial Applications?
Siemens VFD systems are engineered for performance, energy optimization, and long-term operational reliability.
One of the strongest advantages is energy efficiency. By adjusting motor speed based on load demand, Siemens drives reduce power consumption significantly compared to fixed-speed systems. This results in lower operational costs and improved system lifespan.
The SINAMICS drive family supports modular configuration, allowing users to select control units, power modules, braking units, and communication modules based on application requirements.
Advanced communication via PROFINET, PROFIBUS, and Industrial Ethernet ensures integration with PLC systems such as SIMATIC controllers.
Integrated safety functions in selected models allow safe torque off (STO) and other safety features without requiring external relays.
Compatibility with Siemens engineering tools and long lifecycle support makes Siemens VFD a dependable choice for industrial automation projects in India.
Siemens VFD Operating Principle
A Siemens VFD operates through three main power stages: a rectifier, a DC bus, and an inverter stage. Incoming AC power is converted to DC, smoothed in the DC link, and then converted back to variable-frequency AC using PWM (Pulse Width Modulation). By controlling output frequency and voltage, the drive precisely regulates motor speed and torque. This architecture allows smooth motor control across a wide speed range while maintaining efficiency and electrical stability.
Motor Control Methods in Siemens Drives
Siemens VFDs support multiple control strategies, including V/f control, vector control, and sensorless vector control. V/f control is suited for simple applications with predictable loads, while vector-based methods provide higher torque accuracy and dynamic response for demanding applications. These control modes enable effective torque control, speed regulation, and stable operation across varying load profiles, making Siemens drives adaptable to both constant torque and variable torque applications.
Protection, Safety & Reliability Features
Motor and system protection is integral to Siemens VFD design. Built-in functions include overload protection, short-circuit protection, thermal monitoring, and fault diagnostics. Braking options such as DC braking and braking resistor support controlled stopping in high-inertia systems. These features help prevent motor damage, reduce downtime, and extend equipment life in continuous industrial operation.
Communication & Automation Integration
Siemens VFDs are designed for seamless integration with Siemens PLCs, HMIs, and SCADA systems. Communication over industrial networks enables real-time monitoring, parameterization, and diagnostics. Integration through Siemens engineering tools allows drives to be configured as part of a unified automation system rather than standalone components.
Environmental and Electrical Design Considerations
Siemens VFDs are available for single-phase and three-phase power supplies across common industrial voltage ranges such as 230 V, 400 V, and 690 V. Enclosure options meet industrial IP protection classes, with designs suitable for elevated ambient temperatures. Compliance with harmonics and EMC standards ensures reliable operation in electrically noisy industrial environments.
Product List:
| Model No | Image | Rated Power | Number of phases | Line voltage | Line frequency | Rated current |
|---|---|---|---|---|---|---|

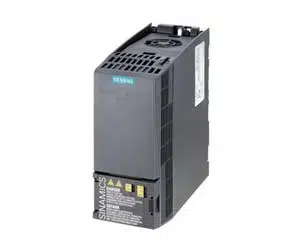

| 6SL3210-1KE11-8AF2 |  |
0.55KW | 11 | 380-480 VAC | 47-63HZ | 1.7A |

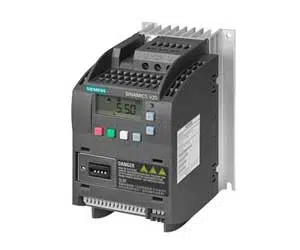

| 6SL3210-5BE15-5UV0 |  |
0.55 kW | 3 AC | 380 … 480 V -15 % +10 % | 47 … 63 Hz | 1.7A |

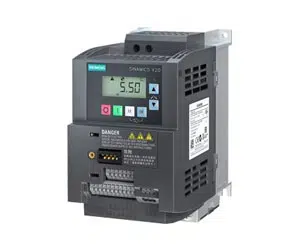

| 6SL3210-5BB21-5UV1 |  |
1.50 kW | 3 AC | 200 … 240 V -15 % +10 % | 47 … 63 Hz | 7.80 A |

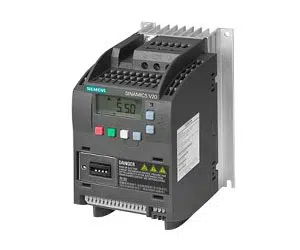

| 6SL3210-5BE17-5CV0 |  |
0.75 kW | 3 AC | 380 … 480 V -15 % +10 % | 47 … 63 Hz | 2.20 A |
How to Select the Right Siemens VFD
Selecting a Siemens VFD requires aligning drive capabilities with motor and application requirements:
- Motor Power and Current: Rated motor power, full-load current, and duty cycle.
- Load Type: Constant torque applications (conveyors, mixers) versus variable torque applications (pumps, fans).
- Control Mode: Basic V/f control or advanced vector control based on performance needs.
- Input Supply Conditions: Single-phase or three-phase supply and voltage availability.
- Environmental Factors: Ambient temperature, enclosure protection, and installation conditions.
- Automation Integration: Communication requirements with PLC, HMI, or SCADA systems.
A structured selection approach ensures reliable performance, energy efficiency, and long-term maintainability.
Why Industries Choose Siemens VFD
Siemens VFD systems are used across various industrial sectors:
In manufacturing plants, they regulate motor speed for conveyors and automated lines.
In HVAC systems, they control fans and compressors for energy efficiency.
In water treatment plants, Siemens drives manage pump control and flow regulation.
In cement and mining industries, high-power drives handle heavy motor loads.
In textile industries, VFD systems provide precise motor speed synchronization.
In infrastructure projects, they support utilities and process automation.
Frequently Asked Questions
What is Siemens VFD?
A Siemens VFD (Variable Frequency Drive) is an electronic device designed to control the speed of electric motors, specifically AC motors. Manufactured by Siemens, these drives adjust the frequency and voltage supplied to the motor, enabling precise speed control.
Siemens VFDs are known for their reliability, efficiency, and advanced features, making them suitable for a wide range of industrial applications.
What does a Siemens Drive Do?
A Siemens Drive, typically a Variable Frequency Drive (VFD), regulates the speed and torque of electric motors. It adjusts the motor’s power supply frequency and voltage, enabling precise control of motor speed.
This results in enhanced energy efficiency, reduced mechanical stress, and improved process control in various industrial and commercial applications.
What is Sinamics Siemens?
Sinamics is a range of drives from Siemens, designed for versatile motor control applications. These drives, part of Siemens’ automation and drive technology, offer solutions for single-motor drives to high-performance drive systems.
Sinamics drives are known for their scalability, energy efficiency, and integration with Siemens automation systems, catering to a wide range of industrial needs.
What are the Different types of Drives in Siemens?
Siemens offers various types of drives, including Sinamics, Micromaster, and Simotion. Sinamics drives cater to a wide range of applications, from basic to high-performance systems. Micromaster is ideal for simple speed control tasks. Simotion drives are designed for advanced motion control in complex automation systems, integrating seamlessly with Siemens’ automation technology.
What is the Voltage of Siemens Drive?
The voltage range of Siemens drives varies depending on the model and application. Generally, Siemens low voltage drives operate within a range of 200V to 690V. For medium voltage drives, the range extends from 2.3kV to 11kV. This wide range allows Siemens drives to cater to diverse industrial requirements, from standard to high-power applications.
Through IndMALL, Siemens VFDs are available via verified industrial vendors with access to series-level and model-level information. For accurate selection, the recommended next step is to explore specific Siemens VFD series and identify models aligned with your motor and application requirements.
