SMC Pneumatic Cylinder | Air & Compact Cylinders

IndMALL Automation presents the SMC Pneumatic Cylinder, a versatile and robust solution for various industrial applications. The CJ1 Series offers both double acting and single acting configurations with small bore sizes for precise control. The CJP Series features miniature, space-saving cylinders while the CJ2 Series includes multiple mounting options for flexibility. Enhanced durability is highlighted in the CJ2-XB24 Series, offering four times the lifespan of standard models. For environments prone to water, dust, or stringent hygiene standards, the Environment Resistant Cylinders provide reliable performance under challenging conditions. Each series is designed to meet specific industrial needs, ensuring efficient operation and reduced maintenance costs.

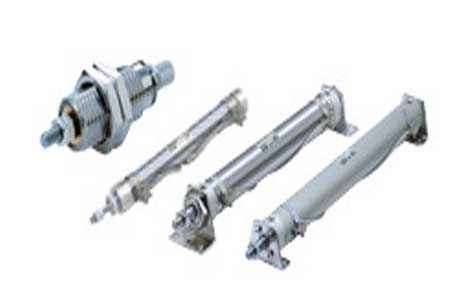

SMC Pneumatic Cylinder: Standard Air Cylinders (Round Type)

CJ1 Series: Available in double acting, single rod, and single acting, spring return types with small bore sizes (2.5mm, 4mm).
CJP Series: Miniature, short-stroke cylinders that reduce installation space, available with 16 mm bore size.
CJP2/CDJP2 Series: Features options for mounting two auto switches and connecting one-touch fittings and speed controllers.
CJ2/CDJ2 Series: Offers various mounting options including double foot and head flange; allows for easy auto switch adjustment.

SMC Cylinders: Environment Resistant Cylinders

Stainless Steel Cylinders: Ideal for water-exposed environments, available in sizes from 10mm to 100mm.
Hygienic Design Cylinders: Suitable for sanitary applications, featuring extended lifespan with auto-switches.
Water Resistant Cylinders: Designed for frequent water or coolant contact, equipped with a two-color indicator auto switch.
Dust Resistant Cylinders: Optimal for dusty settings, enhanced with Lube-retainers to block fine particles.

SMC Air Cylinders: Compact

Mini and Free Mount Cylinders: Highly space-efficient with options for automation via auto switches.
Longer Life Cylinders: Utilize advanced technology for four times the durability and extended maintenance periods.
Square and Compact Cylinders: Feature significant reductions in size and weight, support multiple auto switch configurations.
Diverse Mounting Options: Include axial foot, flange types, and new bracket options for versatile installations.

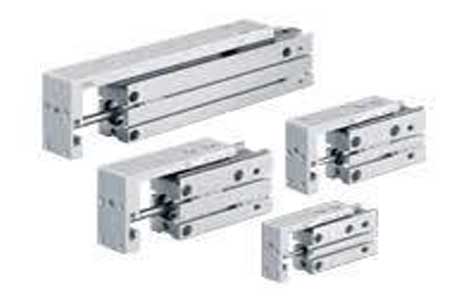

SMC Compact Cylinder: Table

Compact Slide MXH2: Offers reduced displacement and weight with a maximum stroke of 150 mm.
MXZ Cylinder: Combines a linear guide and cylinder for compact, efficient design.
Air Slide Table MXS: Features high rigidity, accuracy, and a dual rod function for increased output.
Air Slide MXQ: Provides high rigidity with a recirculating linear guide, optimized for precision.
MXQ32-X2600: High rigidity slide table with increased load capacity and reduced displacement.

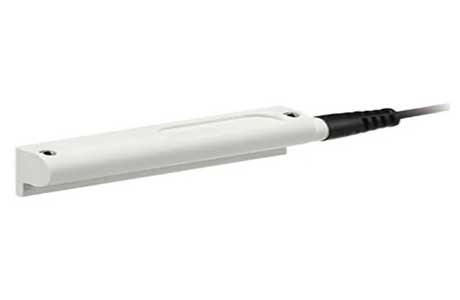

SMC Pneumatic Actuator: Position Sensor

Analog Output: The sensor outputs the actuator stroke position as an analog signal.
High Precision: Features a repeatability accuracy of 0.1 mm.
Measurement Ranges: Available in four ranges—25 mm, 50 mm, 100 mm, and 200 mm.
Versatile Outputs: Includes both switch and analog outputs.
IO-Link Compatibility: Supports IO-Link for enhanced data communication and integration.

SMC Double Acting Cylinder: Dual Rod Cylinders

JMGP Series: Features a compact, lightweight design with multiple mounting and piping options, suitable for diverse applications.
CXSJ Series: Offers a smaller body with improved visibility for auto switches and axial piping.
CXS2 Series: Provides double the force with high non-rotating accuracy and increased piston speed and stroke.
CXS2-XB24: Enhanced durability using advanced technology, maintaining compatibility with existing models for seamless integration.

SMC Cylinder Pneumatic: Fine Lock

CL□/CDL□ Series: Suitable for intermediate, emergency stops, and drop prevention, with bi-directional locking options.
CLA2/CDLA2 Series: Features bi-directional locks and compatibility with magnetic field-resistant auto switches.
MLGC Series: Combines a locking cylinder with a guide, ideal for precise movement control in various applications.

IndMALL Automation proudly presents a diverse range of SMC Pneumatic Cylinders, tailored to meet various industrial requirements. SMC Air Cylinders are available in standard, compact, and environmentally resistant forms, ensuring solutions for any application need. The SMC Compact Cylinder series, such as the Free Mount, Plate, and Longer Life Cylinders, offers high durability and space efficiency. For harsh conditions, SMC’s Stainless Steel and Water Resistant Cylinders provide reliable operation. SMC Double Acting Cylinders, including the Dual Rod and Fine Lock models, offer precise control and increased force for complex motions. Additionally, the SMC Pneumatic Actuator includes advanced sensors for accurate positioning. This comprehensive range ensures that SMC Cylinders can support a wide array of industries with their pneumatic needs.

Frequently Asked Questions

What is the price of SMC compact cylinder?

The price of the SMC Pneumatic Compact Cylinder, CQ2 Series with a 50mm bore and 50mm stroke, varies by quantity. For 1-4 units, the price is ₹11,197.15 each. Purchasing 5 or more units reduces the price to ₹10,538.34 each. This pricing structure offers savings for larger quantities.

What is single-acting pneumatic cylinder?

A single-acting pneumatic cylinder is a type of cylinder that operates with one air port. This port allows compressed air to enter, pushing the rod in only one direction. To return to the original position, the cylinder relies on an external force, typically a spring, rather than air pressure.

What is SMC components?

SMC components refer to items made from Sheet Molding Compound, a reinforced polyester material. This material incorporates carbon or glass fibers, often an inch or longer, providing strength and durability. SMC is widely used in automotive, electrical, and construction industries for its robust properties and molding flexibility.

What is the price of pneumatic cylinder 100mm bore?

The price of an aluminum pneumatic air cylinder with a 100mm bore diameter is Rs 2,841 in India. This type of cylinder is commonly used in various industrial applications for its efficiency and durability.
