Song Chuan Relays | Micro & 12 VDC Power Relay

IndMALL Automation offers a comprehensive range of Song Chuan relays. These relays include general-purpose, power, and miniature power relays. The Series No. 102 and 103 are ideal for various applications with wide coil voltage ranges. Series No. 108 and 301 cater to power-intensive uses. The Series No. 303 and 409 provide high current support and compact design. Each relay features high dielectric strength and low power consumption, ensuring reliable performance.

Main Image
Song Chuan Relays: Series No. 102

Song Chuan Relays: Series No. 102

  • Type: General-purpose relay

  • Coil Voltage: Wide range for various applications
  • Contact Form: Available in SPDT and DPDT configurations
  • Mounting: PCB and plug-in options
  • Current Rating: Up to 10A
  • Features: High dielectric strength, low power consumption

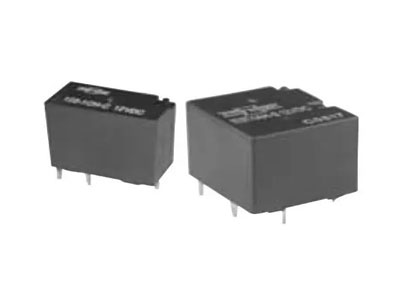

Song Chuan 24 Relay: Series No. 103

Song Chuan 24 Relay: Series No. 103

  • Type: General-purpose relay

  • Coil Voltage: Wide range for different applications
  • Contact Form: SPST, SPDT configurations available
  • Mounting: Options for PCB and plug-in
  • Current Rating: Supports up to 10A
  • Features: High dielectric strength, compact design

Song Chuan Power Relay: Series No. 108

Song Chuan Power Relay: Series No. 108

  • Type: Power relay

  • Coil Voltage: Suitable for a wide range of applications
  • Contact Form: Available in SPDT and DPDT configurations
  • Mounting: Options for PCB and plug-in
  • Current Rating: Supports up to 20A
  • Features: High inrush current capability, compact design

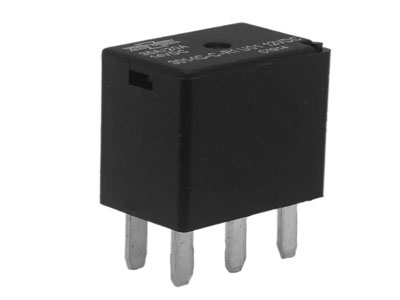

Song Chuan Micro Relay: Series No. 301

Song Chuan Micro Relay: Series No. 301

  • Type: Miniature power relay

  • Coil Voltage: Suitable for a wide range of applications
  • Contact Form: Available in SPST and SPDT configurations
  • Mounting: PCB and quick connect options
  • Current Rating: Supports up to 20A
  • Features: High dielectric strength, compact size, low power consumption

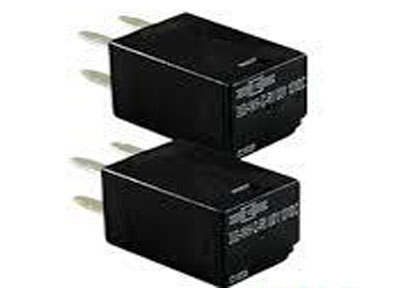

Song Chuan Relay 12vdc: Series No. 303

Song Chuan Relay 12vdc: Series No. 303

  • Type: Miniature power relay

  • Coil Voltage: Wide range suitable for various applications
  • Contact Form: Available in SPST and SPDT configurations
  • Mounting: PCB and quick connect options
  • Current Rating: Supports up to 20A
  • Features: High dielectric strength, compact size, low power consumption

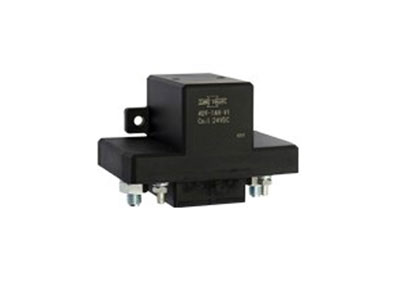

Song Chuan General Purpose Relay: Series No. 409

Song Chuan General Purpose Relay: Series No. 409

  • Type: Power relay

  • Coil Voltage: Wide range for various applications
  • Contact Form: SPDT and DPDT configurations
  • Mounting: PCB and quick connect options
  • Current Rating: Supports up to 30A
  • Features: High dielectric strength, robust design, low power consumption

IndMALL Automation offers a range of Song Chuan relays. Song Chuan Relays are known for reliability and versatility. Song Chuan 24 Relay is perfect for various voltage applications. Song Chuan Power Relay supports high current needs. Song Chuan Micro Relay is ideal for compact spaces. Song Chuan Relay 12vdc is efficient for low voltage applications. Song Chuan General Purpose Relay suits many industrial uses. Each relay ensures high dielectric strength and low power consumption.

Frequently Asked Questions

What are the specifications of a 12V relay?

A 12V relay typically has the following specifications: It weighs around 50 grams and has dimensions of 7 × 4 × 1 cm. The trigger current is 20 mA. It can switch AC voltage up to 250V at 10A and DC voltage up to 30V at 10A.

What is the maximum switching power?

The maximum switching power of a relay is the upper limit of power that can be switched by its contacts. This limit is determined by the relay’s design and material. For instance, a relay might switch up to 2500 watts (250V AC at 10A). Always refer to the relay’s datasheet for precise values.

How to read relay specifications?

To read relay specifications, start with the electrical ratings for both the coil and the internal switching contacts. Check the coil voltage and current requirements. Review the contact ratings, including maximum switching voltage and current. Note any additional features, such as mounting options and dimensions. Always refer to the relay’s datasheet for detailed information.

What is relay range?

Relay range refers to the operating speed and performance of control relays. Typical control relays operate within a 5 ms to 20 ms range. High-speed relays can switch as fast as 100 μs. The range varies based on the relay type and application. Always check specific relay datasheets for detailed performance metrics.

Choose IndMALL for the best Song Chuan Relays and exceptional customer support.
