Teknic Push Buttons | Emergency Push & Stop Button

Teknic offers a versatile array of push buttons and pilot lights designed to meet the demands of various industrial applications. The Teknic push buttons are available in 30.5 mm and 22.5 mm diameters, featuring both metallic and plastic series. The metallic series is particularly suited for railway applications, while the plastic series provides options for either screw-type or clip-on connections. Teknic’s innovative mono-block design integrates contact elements directly within the button, allowing combinations like 2 NOs, 2 NCs, or 1 NO + 1 NC within the same switch module. For ease of use, the 22.5 mm models feature a clip-on design that simplifies installation and ensures robust protection with IP65 rating according to IEC 60947 and NEMA 4 standards per UL 508. These products are built for reliability and durability, making them ideal for rigorous industrial environments.

Main Image
Teknic Push Buttons:Push Buttons & Pilot Lights

Teknic Push Buttons:Push Buttons & Pilot Lights

  • Push buttons available in 30.5 Ø.Metallic series majorly used in Railways.

  • Push buttons available in 22.5 Ø Metallic & Plastic Series wherein fixing of contact elements can be either Screwed type or Clip on type on the bracket.
  • Push buttons available in mono-block design wherein the contact elements are inbuilt. A combination of 2 connections i.e. 2 NOs or 2 NCs or 1NO + 1NC are possible in the same switch module.
  • Push buttons available in 30.5 Ø.Metallic FMR series. This variety of Push button is flush on the surface and has a wide range of applications.

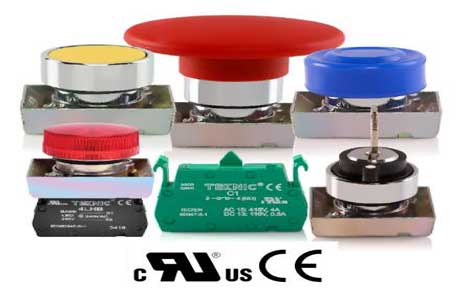

Emergency Push Button Teknic:22.5 Metal Series 4

Emergency Push Button Teknic:22.5 Metal Series 4

  • World-class Clip-on Metal Series push buttons and lights available in 22.5 Ø.

  • Easy and fast installation with Clip-On feature for contact elements on the mounting bracket.
  • Offers IP 65 protection level as per IEC 60947 and NEMA 4 as per UL 508.
  • Designed to be safe, reliable, and rugged in construction.

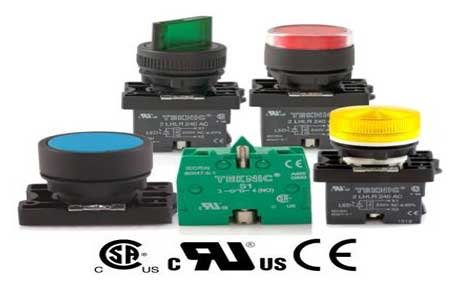

Teknic Emergency Push Button:22.5 Plastic Series P2

Teknic Emergency Push Button:22.5 Plastic Series P2

  • Comprehensive range of Plastic series push buttons and pilot lights in 22.5 Ø.

  • Unmatched quality and reliability.
  • Provides IP 65 protection level according to IEC 60947 and NEMA 4 standards per UL 508.
  • Pilot lights and illuminated push buttons available with filament bulb, integral LED, and LED bulb options.

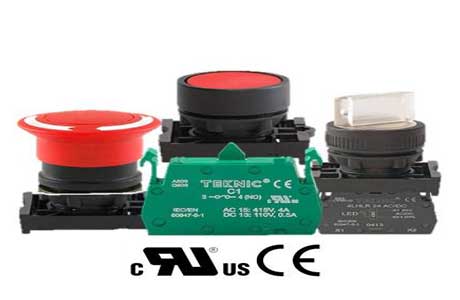

Teknic Emergency Stop Switch: 22.5 Plastic Series P4

Teknic Emergency Stop Switch: 22.5 Plastic Series P4

  • World-class Clip-on Plastic Series push buttons and lights in 22.5 mm diameter.

  • Constructed to be safe, reliable, and rugged.
  • Features a Clip-On design for easy and quick installation of the contact element on the mounting bracket.
  • Provides IP 65 protection level as per IEC 60947 and NEMA 4 as per UL 508.

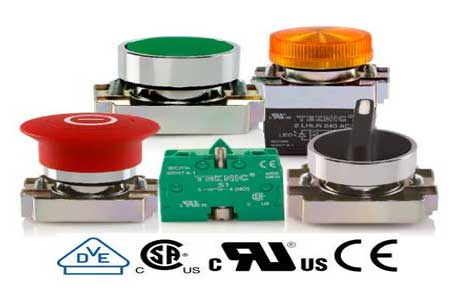

Teknic Illuminated Push Button:22.5 Metal Series

Teknic Illuminated Push Button:22.5 Metal Series

  • World-class Metal Series push buttons and lights in 22.5 mm diameter.

  • IP 65 protection level compliant with IEC 60947 and NEMA 4 per UL 508.
  • Safe, reliable, and rugged construction.
  • Options for pilot lights and illuminated push buttons include filament bulb, integral LED, and LED bulb.

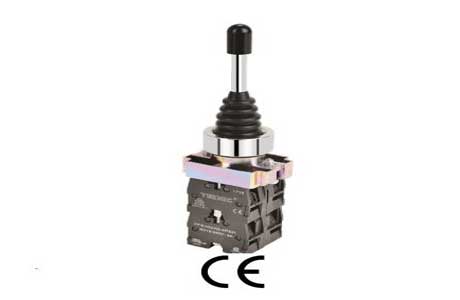

Teknic Push Button With Indicator:22.5 Joystick Metal Series

Teknic Push Button With Indicator:22.5 Joystick Metal Series

  • Joysticks available in 22.5 mm diameter.

  • Offers 2-way operation with options for stayput or spring return features.
  • Also available in 4-way operation with choices of stayput or spring return features.

At IndMALL Automation, we proudly supply a comprehensive range of Teknic push buttons. These include the essential Teknic emergency push button and Teknic emergency stop switch, designed for high reliability and safety. Our inventory features the Teknic illuminated push button, which offers clear visibility in various operational settings. We also provide the robust Teknic mushroom push button, known for its durability and ease of use. For applications requiring precise control, the Teknic push button switch and Teknic push button with indicator are ideal solutions, ensuring efficient operation and feedback. Each Teknic make push button is crafted to meet rigorous industrial standards, combining functionality with aesthetic appeal. Explore our Teknic offerings to enhance your systems with quality and precision.

Frequently Asked Questions

What is the price of teknic push button element?

The Teknic push button contact element is priced at Rs 25 in India. It comes in red and green plastic options. This component is designed for electric fittings.

What is the working principle of push button?

The working principle of a push button is straightforward. Upon pressing the button, a spring mechanism compresses. This action brings contacts together, completing the electrical circuit. Releasing the button allows the spring to expand. Consequently, the contacts separate, breaking the circuit.

What are the different types of push buttons?

Push buttons come in various types, tailored for different uses. Common types include single pole, single throw (SPST) and single pole, double throw (SPDT). Others are double pole, single throw (DPST) and double pole, double throw (DPDT). Each type serves specific circuitry functions.

How to work push button?

Push button switches operate through a simple push or pull action. This movement directs the operating part to open or close the contacts. Typically, the operating component includes an incandescent lamp or LED. These features illuminate the button and indicate its status.
