Turck Level Sensors: Level Measurement Sensors

At IndMALL Automation, we offer advanced Turck Level Sensors designed for precise fluid monitoring. Our range include the Turck Ultrasonic Level Sensor and Turck Capacitive Level Sensor, renowned for their high accuracy and robust designs suitable for challenging industrial environments. These radar level sensors are equipped with switchable PNP/NPN outputs and IO-Link connectivity for enhanced data communication, versatile output options, and sturdy constructions certified for high-pressure conditions. Ideal for applications in the chemical, pharmaceutical, and food processing industries, our sensors ensure reliable measurements and streamlined operations.

Main Image

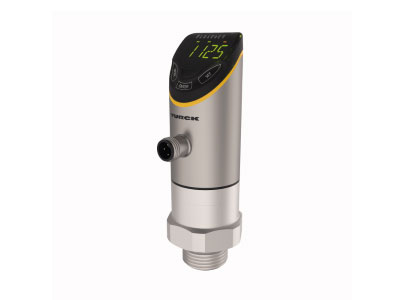

Turck Level Sensors: LS-5 Series

Turck Level Sensors: LS-5 Series

  • Level Measurement: Provides continuous detection with analog and multiple switching outputs.

  • Setup: Quick deployment without calibration; adjustable probes for flexibility.
  • Design: Compact, rotatable housing with display, ideal for small spaces.
  • Durability: Handles up to 100°C and 10 bar pressure.
  • Connectivity: Features IO-Link 1.1 for advanced data communication.
  • Outputs: Includes 1 analog and up to 4 switchable outputs (PNP/NPN).

Turck Ultrasonic Level Sensor: LUS Series

Turck Ultrasonic Level Sensor: LUS Series

  • Display and Housing: All models have a 4-digit, 2-colored, 12-segment display, rotatable by 180°.

  • Process Connection: Options include ¾” NPT and G3/4″ with sealing rings.
  • Performance: Blind zones start at 0.5 cm, range up to 130 cm, resolution from 0.5 mm.
  • Outputs and Control: Features include 1 or 2 switching outputs (PNP/NPN), analog output, and NO/NC programmability.
  • Advanced Features: Equipped with IO-Link for enhanced control and monitoring capabilities.

Turck Capacitive Level Sensor: NCLS Sensors

Turck Capacitive Level Sensor: NCLS Sensors

  • Function: Detects limit levels in various substances, including liquids, granules, and powders.

  • Design: Hygienic PEEK tip, CIP/SIP compatible, EHEDG certified with specific adapters.
  • Visibility: Features a highly visible ring LED.
  • Electrical Specs: Runs on 12 to 32 VDC, power consumption between 1W and 3W.
  • Outputs and Connectivity: Two digital outputs (NO/NC), PNP/NPN or push-pull, IO-Link for parameterization.
  • Installation: G1/2″ male thread connection, uses a 4-pin M12 × 1 connector.

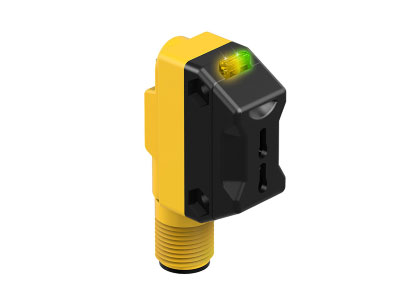

Turck Level Control Optical Sensor: QS18 Series

Turck Level Control Optical Sensor: QS18 Series

  • Sensing Tips and Fibers: For level measurements in tanks and pipes, available in plastic and glass with flexible, hygienic designs.

  • Photoelectric Sensors: Compatible with plastic and glass fibers, offer adjustable sensitivity, PNP switching, IP67 protection, and some have analog outputs.
  • Key Features: Visible LED, M12 × 1, 4-pin connections, and 10 to 30 VDC operating voltage.
  • Applications: Designed for accurate detection across challenging environments.

Turck Linear Position Sensor: LTX

Turck Linear Position Sensor: LTX

  • Suitability: Ideal for hydraulic cylinders.

  • Pressure Resistance: Can handle up to 340 bar permanently and 680 bar short-term.
  • Durability: Shock-proof up to 100g, with an IP68 protection class.
  • Temperature Range: Operating temperatures for the rod are from -40 °C to +105 °C, and for electronics from -40 °C to +85 °C.
  • Visual Indicators: Features a 3-color LED status display.
  • Resolution and Output: Offers 16-bit resolution and an analog output of 4…20 mA.
  • Connectivity: Equipped with an M12 × 1 connector.
  • Adjustability: Includes an adjustable measuring range.

IndMALL Automation offer a comprehensive selection of Turck Level Sensors designed for various applications. Our range includes Turck Radar Level Sensors, Liquid Level Sensors, and Ultrasonic Level Sensors, noted for their precision and reliability. Additionally, we provide Turck Capacitive Level Sensors and Turck Linear Position Sensors, which are ideal for challenging industrial environments due to their robustness and high-pressure durability. These sensors feature advanced technologies such as IO-Link connectivity and versatile outputs, ensuring easy integration and enhanced operational efficiency across multiple industries including chemical processing, pharmaceuticals, and food production.

Frequently Asked Questions

What is the function of the level sensor?

Radar sensors are designed to measure the position of surfaces within containers of liquids and solids, including powders. They use radio waves to detect the surface level accurately, regardless of the material’s state. These sensors are especially useful in environments where contact methods are impractical, providing reliable data even under challenging conditions.

What are the types of level sensors?

Here are the main types of level sensors:

Capacitance Level Sensor
Optical Level Sensor
Conductivity Level Sensor
Vibrating Level Sensor
Float Switch
Ultrasonic Level Sensor
Radar Level Sensor

What are the benefits of level sensor?

Water level indicators and alarms are beneficial due to:

Easy installation and minimal maintenance.
Alerts for high or low water levels.
Features both low and high alarms.
Compact and efficient design.
Automatic water level adjustment.
Cost savings on electricity and water usage.

If you required Turck Level Sensors, Get A Quote Now.
