Turck Proximity Sensor: Namur Inductive Sensors

IndMALL Automation offers a diverse range of Turck Proximity Sensors, tailored for various industrial needs. The Turck IO-Link Proximity Sensor features a compact design, Factor 1 sensing for all metals, and IP68 protection. Our Turck Inductive Ring Sensors provide precise detection with integrated amplifiers and adjustable sensitivity. The Turck Proximity Switch series includes slot-type sensors with multiple voltage and output options.

The Turck Inductive Proximity Sensor series offers angle measurement with a wide range, ideal for precise positioning. Our Turck Rectangular and Smooth Barrel Proximity Sensors ensure robust performance in different materials and designs. Choose IndMALL Automation for reliable and efficient Turck Proximity Switches, enhancing accuracy and productivity in your industrial operations.

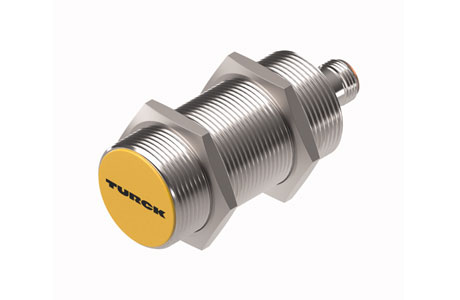

Turck Proximity Sensor: IO-Link

Housing: Threaded barrel (M12 x 1, M18 x 1, M30 x 1.5), chrome-plated brass.
Features: Factor 1 for all metals, large switching distance, resistant to magnetic fields.
Communication: IO-Link v1.1, standard I/O.
Voltage: DC 4-wire, 10…30 VDC; Protection: IP68.
Output: Configurable electrical outputs, NO contact, PNP/NPN.
Connection: M12 x 1 connector.

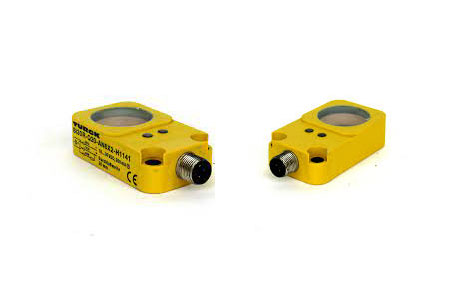

Turck Inductive Sensor: Ring Sensors

Heights: 14 mm, 20 mm, 30 mm, 40 mm.
Materials: PBT‐GF30‐V0, PA12‐GF30, POM.
Output Types: PNP (Normally Open), NPN (Normally Open), Changeover contact.
Voltage Range: 10-30 VDC, 10-55 VDC (NI100R-S32XL-VP44X-H1141).
Connectors: M12 x 1 male.
Features: Static output behavior, integrated amplifier (NI100R-S32XL-VP44X-H1141), sensitivity adjustment (NI100R-S32XL-VP44X-H1141, BI20R-W30-DAP6X-H1141, BI30R-W30-DAP6X-H1141).

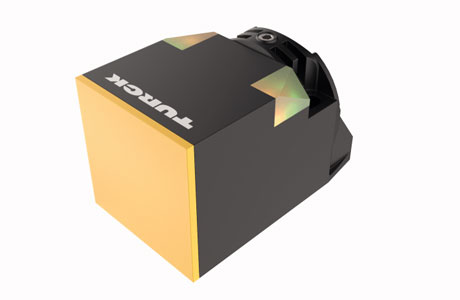

Turck Rectangular Proximity Sensor

Housing: Rectangular, various heights (8 mm, 14 mm, 20 mm, 40 mm, 41 mm).
Material: Plastic (PBT‐GF30‐V0, Ultem), with variable orientation of the active face.
Detection: Carbon materials, Factor 1 for all metals.
Output: Analog, NO/NC contacts, PNP/NPN output, programmable NC/NO.
Voltage: DC 3-wire or 4-wire, 10…30 VDC; some models up to 10…65 VDC or 20…250 VAC.
Connection: M12 x 1 or M8 x 1 male connector, terminal chamber.

Turck Proximity Switch: Increased Switching Distance

Barrel Size: Ø 4 mm, Ø 6.5 mm, Ø 11 mm, Ø 12 mm.
Material: Stainless steel (1.4427, 1.4305), Plastic (PA12‐GF30), Chrome-plated brass.
Voltage: DC 3-wire, 4.75…5.25 VDC or 10…30 VDC.
Output: NO contact, NPN or PNP.
Connection: Cable connection, M8 x 1 male connector, Pigtail with male end M12 x 1.

At IndMALL Automation, we offer a comprehensive range of Turck Proximity Sensors, renowned for their precision and robustness. Our Turck sensors, including the Turck proximity sensor and Turck inductive sensor, are designed for reliable detection in various industrial applications. The Turck products we provide are known for their high quality and durability.

Turck Inc., a leader in sensor technology, offers solutions like the Turk proximity sensor and Turk proximity switch, ideal for precise sensing needs. Our Turck proximity switches and Turck prox sensors are highly sought after for their accuracy and reliability in automation tasks.

The Turk prox sensors and Turk prox switches in our collection are perfect for applications requiring non-contact detection. Choose IndMALL Automation for your Turck proximity sensors needs, ensuring top-tier performance and reliability in your industrial processes.

Product List:

Model No	Design	Construction Size	Switching Distance	Mounting	Output Function	Operating Voltage

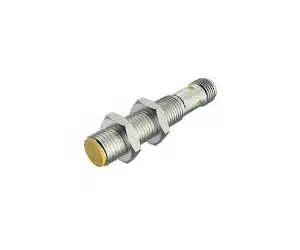

BI4-M12-2APS8X2-H1141	ThreadedBarrel	M12 x 1	4 mm	Flush	2 × OSSD, NO contacts, PNP	19.2…28.8 VDC/td>

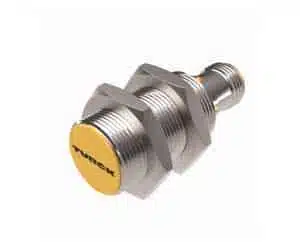

BI4-M12-2APS8X2-H1141	ThreadedBarrel	M18 x 1	5 mm	Flush	NO contact, PNP	10…30 VDC

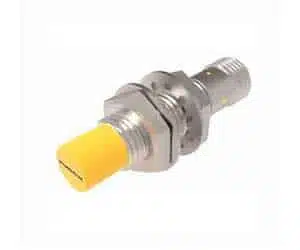

NI5-M12-Y1X-H1141	ThreadedBarrel	M12 x 1	5 mm	Non-Flush	Namur	–

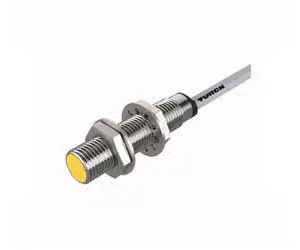

BI6U-M12-VP6X	ThreadedBarrel	M12 x 1	6 mm	Flush	PNP	10…30 VDC

Frequently Asked Questions

What Turck safety Proximity Sensor?

A Turck safety proximity sensor is designed to keep people and machines safe. It detects when something is too close to a risky area and can stop the machine. Built to high safety standards like SIL 2 and PL d, these sensors are reliable for preventing accidents.

What is NAMUR specification?

NAMUR is a set of guidelines that helps make sure industrial sensors and equipment work well and safely. It comes from a German group that specializes in automation technology.

When a sensor meets NAMUR specifications, it means the sensor has certain qualities. For example, it will work in a specific way and within certain limits. This makes it easier to know how the sensor will perform in different situations.

NAMUR specs often focus on sensors used in hazardous or challenging environments. This can include places like chemical plants or oil refineries where safety is really important.

What is Turck Uprox Proximity Sensor?

A Turck Uprox proximity sensor is a special kind of sensor used in industrial settings. It’s designed to detect all types of metal at the same distance. This is different from regular sensors that might not work as well with some metals.

The Uprox sensor is very reliable and offers a larger detection area. This means it can sense objects from a greater distance compared to standard sensors. It’s great for different jobs in factories or other industrial areas. These sensors are also versatile. They can be used in different environments, even ones that are really tough or harsh. This makes them a popular choice for all kinds of industries.

Please share your Turck Proximity Sensor or Turck Inductive Sensor Requirement to sales@indmall.in
