Turck Ultrasonic Sensors | Turck Ultrasonic Transducer

At IndMALL Automation, delve into our Turck Ultrasonic Sensors range, specifically designed for effective distance measurement and object detection. These sensors utilize ultrasonic waves, making them suitable for environments where optical sensors might fail, such as areas with dust, smoke, or fog. The series includes models like RU10U-M08-UP8X-V1141, RU50U-S18-LI8X-H1141, and others, all equipped with features like adjustable sensitivity and robust IP67 protection. These sensors ensure precise operation in industrial settings, providing critical data for automation and control processes.

Turck Ultrasonic Sensors: RU10U-M08-UP8X-V1141

Model Number: 100003157
Type: Ultrasonic Sensor
Mode: Diffuse Mode Sensor
Application: Designed for object detection and distance measurement using ultrasonic waves.
Features: Ideal for use in environments where optical sensors may fail due to dust, smoke, or fog.
Installation: Easily integrates into various industrial settings.

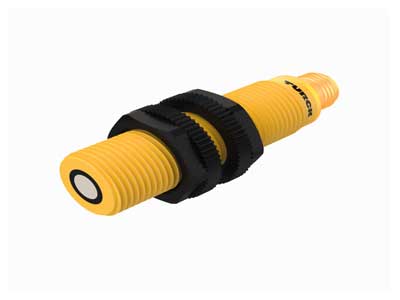

Turck Ultrasonic Transducer: RU50U-S18-LI8X-H1141

Model Number: 100000748
Type: Ultrasonic Sensor
Mode: Diffuse Mode Sensor
Features: Capable of detecting objects and measuring distances using ultrasonic waves.

Turck Ultrasonic Detector: RU40U-M18MS-UP8X2-H1151

Model Number: 1610009
Type: Ultrasonic Sensor
Mode: Diffuse Mode Sensor
Features: Ideal for precise object detection and distance measurement in challenging environments.

Turck Ultrasonic Level Switch: RU100U-M18MS-AP8X2-H1151

Model Number: 1610106
Type: Ultrasonic Sensor
Mode: Diffuse Mode Sensor
Features: Provides precise object detection and distance measurement capabilities.

Ultrasonic Sensors Turck: RU40U-M12-AP6X2-H1141

Material: Features a housing made of polypropylene and a probe made of quartz glass.
Durability: The sensor operates effectively within an ambient temperature range of -30°C to +70°C.
Electrical Specs: Requires a power supply of 12 to 32 VDC.

Ultrasonic Level Switch Turck: RU50U-S18-AP8X-H1141

Type: Designed for robust industrial applications.
Functionality: Offers precise detection and measurement capabilities.
Connectivity: Equipped with a standard M12 × 1 connector for ease of integration.
Power Requirements: Operates on a 10–30 VDC supply voltage.
Protection: Features IP67 rating for dust and water resistance.

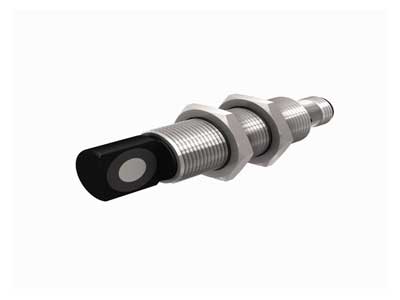

Ultrasonic Transducer Turck : RU40U-M18MS-AP8X2-H1151

Purpose: This sensor is designed for diffuse mode operation.
Connectivity: Equipped with an M12 × 1 connector.
Protection: Rated IP67 for water and dust resistance.
Sensitivity: Adjustable via a potentiometer.
Voltage: Operates within a 10–30 VDC range.
Output: Features a PNP switching output.

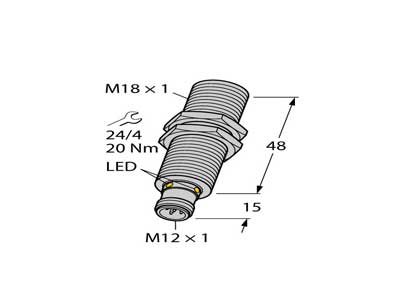

Transducer Turck Ultrasonic: RU40U-M18M-UP8X2-H1151

Model ID: 1610008
Key Features: Suited for detecting distances to objects in diverse applications.
Technical Specifications: Includes an M12 × 1 connector for easy integration.
Protection Level: Rated IP67, ensuring durability against dust and water ingress.
Adjustment: Sensitivity can be fine-tuned via a potentiometer.
Voltage Range: Operates within a 10–30 VDC range.
Output: Offers PNP switching output, changeover type.

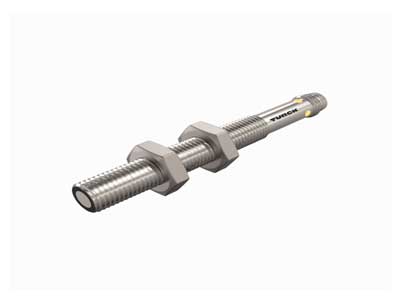

Ultrasonic Detector Turck : RU10L-M08-UP8X-V1141

Type: Ultrasonic, retroreflective sensor.
Function: Suitable for applications requiring precision distance measurement.
Configuration: Equipped with M12 x 1 connector.
Voltage: Requires a 10-30 VDC power supply.
Output: Includes a PNP switching output.
Features: Offers programmability and adjustment via potentiometer.
Durability: Designed with IP67 protection for robust performance in harsh environments.

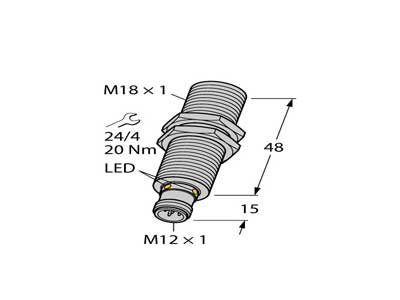

Ultrasonic Level Turck Switch : RU40L-M18M-UP8X2-H1151

Connectivity: Includes an M12 × 1 connector.
Protection Level: Rated IP67 for dust and water resistance.
Adjustment: Sensitivity can be adjusted via a potentiometer.
Power Supply: Operates on a 10–30 VDC range.
Output Type: Features a PNP switching output, suitable for diverse applications.

At IndMALL Automation, we provide a sophisticated range of Turck Ultrasonic Sensors designed for diverse industrial applications. These sensors, including the Turck Ultrasonic Transducer, Turck Ultrasonic Detector, and Turck Ultrasonic Level Switch, offer reliable distance measurement and object detection capabilities. Ideal for environments where traditional sensors fail, our ultrasonic solutions ensure precision and durability. Explore the various models like the Ultrasonic Sensors Turck and Ultrasonic Level Switch Turck to enhance your operational efficiency.

Frequently Asked Questions

What is an ultrasonic sensor used for?

An ultrasonic sensor is a non-contact device used to detect the presence of nearby objects without physical contact. It measures the distance to an object by using sound waves at ultrasonic frequencies. The sensor emits these waves and times how long they take to return after bouncing off the object. This technology is essential in applications like robotic obstacle avoidance, liquid level measurement, and vehicle parking assistance systems.

What is the principle of an ultrasonic sensor?

The principle of an ultrasonic sensor is based on measuring the time it takes for sound waves to travel to an object and back to the sensor. This method, known as “time of flight,” calculates distance based on the speed of sound. The sensor emits ultrasonic waves, which bounce off the object and return to the sensor, allowing it to determine the object’s distance accurately.

How to detect ultrasonic?

Ultrasonic waves can be detected using Kundt’s tube, a device that visualizes acoustic waves in a column of air. As ultrasonic waves pass through the tube, they create nodes where the air is relatively still. At these nodes, lycopodium powder or a similar fine powder accumulates into heaps, making the wave patterns visible and indicating the presence of ultrasonic activity. This method helps in understanding wave properties and measuring wavelength or frequency.
